74801 (Z 18-52) - Toro 52" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FH 531V-AS07 Parts Diagram

52" TimeCutter Zero-Turn Mower

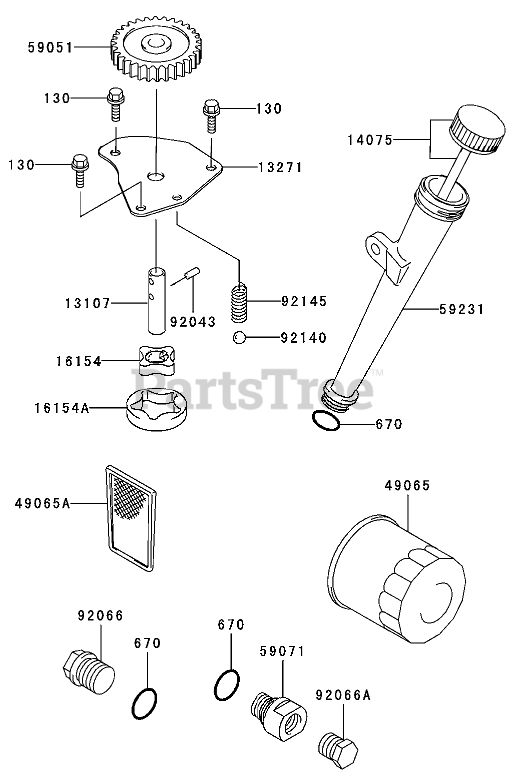

LUBRICATION EQUIPMENT ASSEMBLY KAWASAKI FH 531V-AS07 Parts Diagram

  • Title
13107

Kawasaki 13107-7009

Shaft
(Superseded to 13107-0749)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, only 3 left!

0

13271

Kawasaki 13271-7017

Plate

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

Usually ships in 2-5 days

0

14075

Kawasaki 14075-7001

Cap ASM
(Superseded to 14075-7009)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

16154

Kawasaki 16154-2053

ROTOR-PUMP (IN)

Note: Obtain parts from www.kawpowerepc.com

$12.99

$

In Stock, Qty 5

0

16154A

Kawasaki 16154-2054

ROTOR-PUMP (OUT)

Note: Obtain parts from www.kawpowerepc.com

$9.49

$

In Stock, Qty 5

0

49065

Toro 49065-2078

Filter-Oil
(Superseded to 49065-2071)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

49065A

Kawasaki 49065-7004

Filter-Oil

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

59051

Kawasaki 59051-7004

Gear-Spur
(Superseded to 59051-6001)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

59071

Kawasaki 59071-7004

Joint
(Superseded to 59071-7023)

Note: Obtain parts from www.kawpowerepc.com

$8.99

$

In Stock, Qty 11

0

59231

Kawasaki 59231-7001

Filler
(Superseded to 59231-7005)

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 5

0

92043

Kawasaki 92043-7003

Pin

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92066

Kawasaki 92066-7003

Plug
(Superseded to 920660774)

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

In Stock, Qty 20+

0

92066A

Toro 92066-7006

Plug

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92140

Kawasaki 92140-7003

Ball

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 13

0

92145

Kawasaki 92145-7002

Spring

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

670

Kawasaki 670D2016

O-RING (16mm)
(Superseded to M88478)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 20+

0
