74801 (Z 18-52) - Toro 52" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) HYDRO AND BELT DRIVE ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

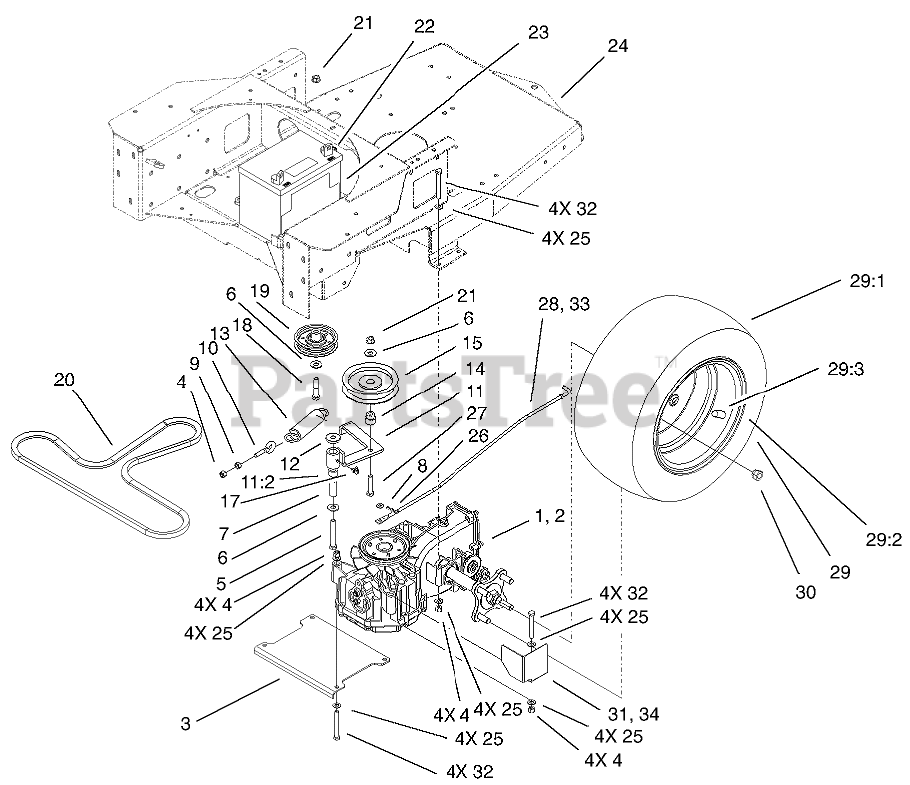

HYDRO AND BELT DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 100-7361

HYDRO-LH
(Superseded to 107-1709)

$

$

Not available

2

Toro 100-7360

HYDRO-RH
(Superseded to 107-1708)

$

$

Not available

3

Toro 100-7317-03

PLATE-HYDRO, LOWER

$

$

Not available

4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

5

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 15

0

6

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

7

Toro 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

0

8

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Toro 55-9420

BOLT-EYE

$11.99

$

In Stock, only 2 left!

0

11

Toro 104-3614

IDLER ARM ASM

$249.99

$

Usually ships in 3-6 days

0

11:2

Toro 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

12

Toro 104-8005

SPACER

$29.99

$

Usually ships in 3-6 days

0

13

Toro 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, only 2 left!

0

14

Toro 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

15

Toro 1-603843

PULLEY-IDLER
(Superseded to 132-4718)

$33.99

$

In Stock, Qty 16

0

17

Toro 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

18

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

19

Toro 104-3630

PULLEY-IDLER

$85.99

$

In Stock, only 2 left!

0

20

Toro 104-3622

BELT-V

$65.99

$

Usually ships in 3-6 days

0

21

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

23

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

24

Toro 104-8008

DECAL-TRANSPORT
(Superseded to 104-8061)

$

$

Not available

25

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

27

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

28

Toro 104-3669

ROD-LH

$

$

Not available

29

Wheel and Tire ASM

Note: Not serviced

$

$

Not available

29:1

$284.99

$

Usually ships in 3-6 days

0

29:2

$

$

Not available

29:3

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

30

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

31

Toro 104-8013-03

GUARD-FAN, RH

$

$

Not available

32

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

33

Toro 104-3668

ROD-RH

$47.99

$

Usually ships in 3-6 days

0

34

Toro 104-8033-03

GUARD-FAN, LH

$

$

Not available
