74801 (Z 18-52) - Toro 52" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) COOLING EQUIPMENT ASSEMBLY KAWASAKI FH 531V-AS07 Parts Diagram

52" TimeCutter Zero-Turn Mower

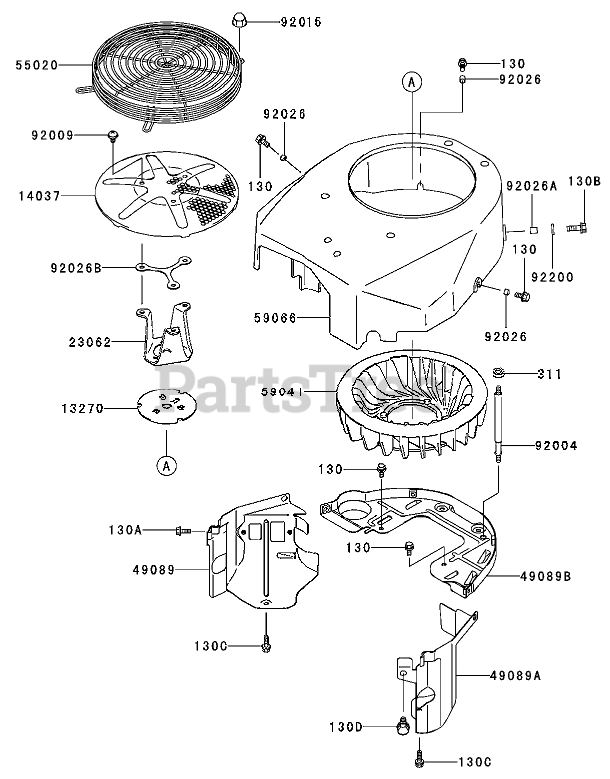

COOLING EQUIPMENT ASSEMBLY KAWASAKI FH 531V-AS07 Parts Diagram

  • Title

13270

Kawasaki 13270-7007

Plate

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

14037

Toro 14037-7010-9H

Screen

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

23062

Kawasaki 23062-7008

Bracket-Comp
(Superseded to 23062-7010)

Note: Obtain parts from www.kawpowerepc.com

$10.99

$

In Stock, Qty 5

0

49089

Kawasaki 49089-7001

Shroud-Engine
(Superseded to 49089-7034)

Note: Obtain parts from www.kawpowerepc.com

$26.99

$

In Stock, only 1 left!

0

49089A

Kawasaki 49089-7002

Shroud-Engine

Note: Obtain parts from www.kawpowerepc.com

$28.99

$

In Stock, only 1 left!

0

49089B

Kawasaki 49089-7003

Shroud-Engine
(Superseded to 49089-7032)

Note: Obtain parts from www.kawpowerepc.com

$32.99

$

In Stock, only 1 left!

0

55020

Kawasaki 55020-7004

Guard
(Superseded to 55020-7001)

Note: Obtain parts from www.kawpowerepc.com

$32.99

$

In Stock, Qty 7

0

59041

Toro 59041-7001

Fan

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

59066

Kawasaki 59066-7002

Housing-Fan

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92004

Kawasaki 92004-7006

Stud
(Superseded to 92004-7025)

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

92009

Kawasaki 92009-7008

Screw
(Superseded to 130BA0612)

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-1170

Nut
(Superseded to 92210-0003)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92026

Kawasaki 92026-7001

SPACER (6.2X7.9X5)
(Superseded to 92153-7007)

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92026A

Toro 92026-7003

Spacer

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

92026B

Kawasaki 92026-7007

Spacer

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

92200

Kawasaki 92200-2078

Washer

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

130

Kawasaki 130B0612

Bolt-Flanged (6X12)
(Superseded to 130AA0612)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130A

Kawasaki 130B0616

Bolt-Flanged (6X16)
(Superseded to 130AA0616)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130B

Kawasaki 130B0620

Bolt-Flanged (6X20)
(Superseded to 130AA0620)

Note: Obtain parts from www.kawpowerepc.com

$3.49

$

In Stock, Qty 20+

0

130C

Kawasaki 130B0625

Bolt-Flanged (6X25)
(Superseded to 130AA0625)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

130D

Kawasaki 130B0816

Bolt-Flanged (8X16)
(Superseded to 130AA0816)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

311

Toro 311B0600

NUT-HEX (6mm)

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable
