74801 (Z 18-52) - Toro 52" TimeCutter Zero-Turn Mower (SN: 220000001 - 220999999) (2002) 52 INCH DECK ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

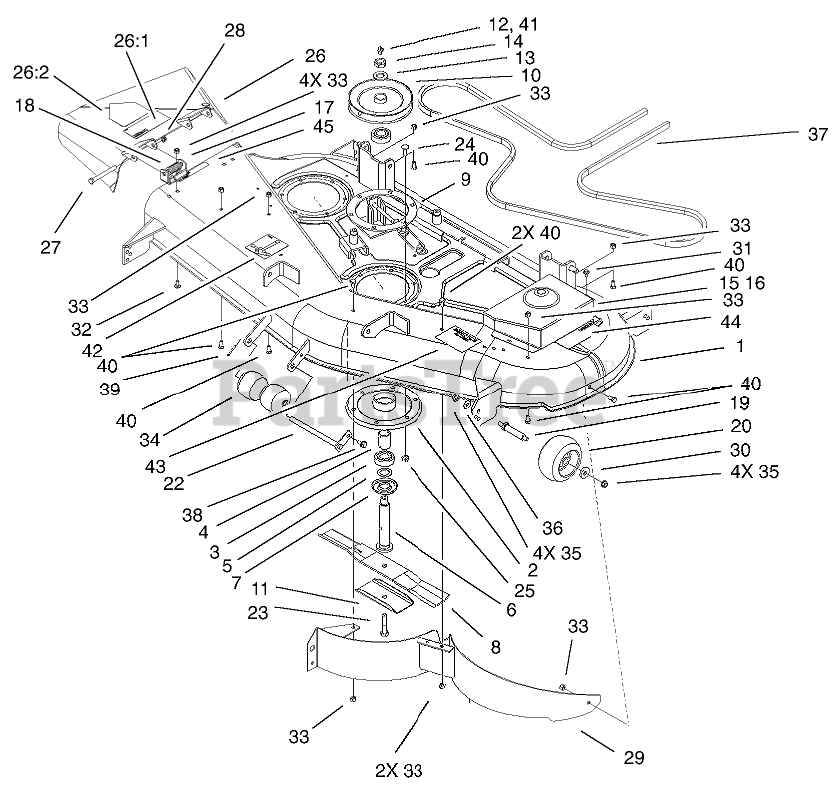

52 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 105-1949

DECK ASM
(Superseded to 108-8534)

$

$

Not available

2

Toro 79-2480-03

HOUSING-SPINDLE
(Superseded to 79-2480)

$222.99

$

Usually ships in 3-6 days

0

3

Toro 113514

BEARING-BALL

$21.99

$

In Stock, only 3 left!

0

4

Toro 79-1890

SPACER-BEARING

$34.99

$

Usually ships in 3-6 days

0

5

Toro 120860

WASHER-WHEEL

$6.99

$

In Stock, Qty 7

0

6

Toro 79-1910

SHAFT-SPINDLE

$

$

Not available

7

Toro 79-1920

SHIELD-BEARING

$14.99

$

In Stock, only 4 left!

0

8

Toro 27-0990-03

BLADE-18 INCH

$23.99

$

In Stock, only 3 left!

0

9

Toro 27-7680-01

RING-DECK SUPPORT
(Superseded to 27-7680-03)

$86.99

$

Usually ships in 3-6 days

0

10

Toro 100-7320

PULLEY/HUB ASM

$205.99

$

Usually ships in 3-6 days

0

11

Toro 92-9820

STIFFENER-BLADE

$62.99

$

Usually ships in 3-6 days

0

12

Toro 302-2

FITTING-GREASE

$2.49

$

Usually ships in 3-6 days

0

13

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

14

Toro 3220-7

NUT-JAM

$4.49

$

In Stock, Qty 5

0

15

Toro 104-3685-01

COVER-BELT, LH

$

$

Not available

16

Toro 104-3684-01

COVER-BELT, RH

$135.99

$

Usually ships in 3-6 days

0

17

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

18

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

19

Toro 99-2842

SPACER
(Superseded to 126-2928)

$27.99

$

In Stock, Qty 7

0

20

Toro 68-2730

WHEEL-GAGE
(Superseded to 1-603299)

$23.99

$

In Stock, Qty 16

0

22

Toro 98-5030

SHAFT ASM

$99.99

$

Usually ships in 3-6 days

0

23

Toro 44-2200

SCREW-BLADE

$4.99

$

In Stock, Qty 6

0

24

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

25

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

26

Toro 94-1580

Deflector ASM
(Superseded to 94-1580-01)

$

$

Not available

26:1

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

26:2

Toro 93-1122

DECAL-DANGER

$9.99

$

In Stock, Qty 12

0

27

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

28

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 8

0

29

Toro 94-2509-03

BAFFLE-MULCH, LH

$

$

Not available

30

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

31

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

32

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 7

0

33

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 29-4820

ROLLER

$18.99

$

In Stock, only 2 left!

0

35

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

36

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

37

Toro 99-3904

BELT-DECK (52)

$169.99

$

In Stock, only 1 left!

0

38

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

39

Toro 3272-11

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

40

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

41

Toro 302-33

FITTING-GREASE
(Superseded to 9335124)

$2.99

$

In Stock, Qty 5

0

42

Toro 99-3943

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 1 left!

0

43

Toro 98-3798

DECAL-WHEEL, GAGE

$18.99

$

Usually ships in 3-6 days

0

44

Toro 92-7108

DECAL-DANGER

$7.49

$

Usually ships in 3-6 days

0

45

Toro 92-7109

DECAL-CAUTION

$

$

Not available
