74801 (18-52 ZX) - Toro 52" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) VALVE / CAMSHAFT ASSEMBLY KAWASAKI FH531V-CS07 Parts Diagram

52" TimeCutter Zero-Turn Mower

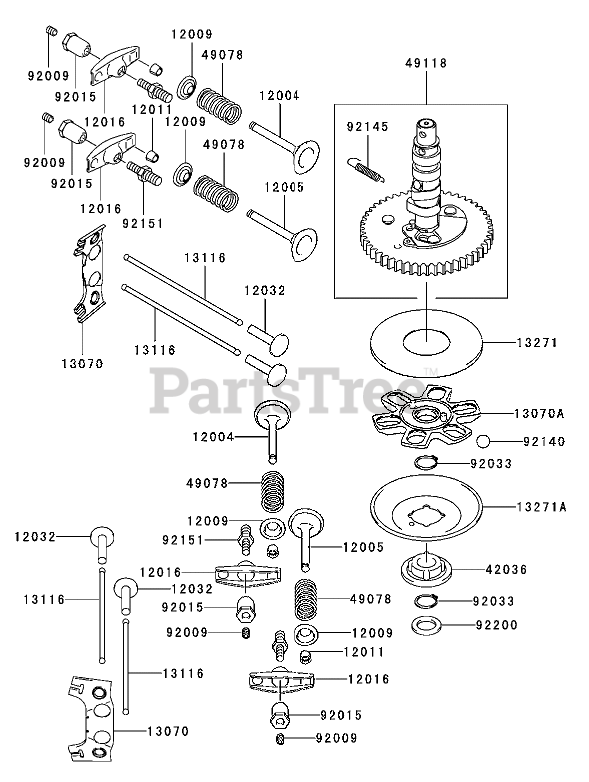

VALVE / CAMSHAFT ASSEMBLY KAWASAKI FH531V-CS07 Parts Diagram

  • Title

12004

Kawasaki 12004-7003

Valve-Intake
(Superseded to 12004-7001)

Note: Obtain parts from www.kawpowerepc.com

$16.99

$

In Stock, Qty 20+

0

12005

Kawasaki 12005-7003

Valve-Exhaust
(Superseded to 12005-7001)

Note: Obtain parts from www.kawpowerepc.com

$29.99

$

In Stock, Qty 20+

0

12009

Kawasaki 12009-7001

RETAINER-SPRING, VALVE

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

12011

Kawasaki 12011-2056

Collet

Note: Obtain parts from www.kawpowerepc.com

$2.99

$

In Stock, Qty 20+

0

12016

Kawasaki 12016-7001

Arm-Rocker
(Superseded to 12016-7008)

Note: Obtain parts from www.kawpowerepc.com

$7.99

$

In Stock, Qty 12

0

12032

Kawasaki 12032-7001

Tappet

Note: Obtain parts from www.kawpowerepc.com

$8.99

$

In Stock, Qty 20+

0

13070

Kawasaki 13070-7001

Guide

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

13070A

Kawasaki 13070-7004

Guide
(Superseded to 13070-7002)

Note: Obtain parts from www.kawpowerepc.com

$5.99

$

In Stock, Qty 20+

0

13116

Kawasaki 13116-2057

Rod-Push

Note: Obtain parts from www.kawpowerepc.com

$4.99

$

In Stock, Qty 20+

0

13271

Kawasaki 13271-7007

Plate
(Superseded to 13270-7003)

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

In Stock, Qty 12

0

13271A

Kawasaki 13271-7021

PLATE-GOVERNOR
(Superseded to 13270-7002)

Note: Obtain parts from www.kawpowerepc.com

$5.49

$

In Stock, Qty 20+

0

42036

Toro 42036-7001

Sleeve

Note: Obtain parts from www.kawpowerepc.com

$

$

Currently unavailable

49078

Kawasaki 49078-7001

SPRING-VALVE, ENGINE
(Superseded to 49078-2064)

Note: Obtain parts from www.kawpowerepc.com

$6.99

$

In Stock, Qty 20+

0

49118

Kawasaki 49118-7004

Camshaft

Note: Obtain parts from www.kawpowerepc.com

$92.99

$

Usually ships in 2-5 days

0

92009

Kawasaki 92009-2341

Screw

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

In Stock, Qty 20+

0

92015

Kawasaki 92015-2253

Nut

Note: Obtain parts from www.kawpowerepc.com

$4.49

$

In Stock, Qty 20+

0

92033

Kawasaki 92033-7001

Ring-Snap
(Superseded to 92033-0727)

Note: Obtain parts from www.kawpowerepc.com

$0.99

$

In Stock, Qty 20+

0

92140

Kawasaki 92140-7002

Ball
(Superseded to 92140-7005)

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

92145

Kawasaki 92145-7001

Spring
(Superseded to 921451653)

Note: Obtain parts from www.kawpowerepc.com

$1.49

$

In Stock, Qty 18

0

92151

Kawasaki 92151-7019

Bolt
(Superseded to 92153-7019)

Note: Obtain parts from www.kawpowerepc.com

$2.49

$

Usually ships in 2-5 days

0

92200

Kawasaki 92200-7001

Washer

Note: Obtain parts from www.kawpowerepc.com

$1.99

$

In Stock, Qty 11

0
