74801 (18-52 ZX) - Toro 52" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) FUEL TANK AND CONTROL POD ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

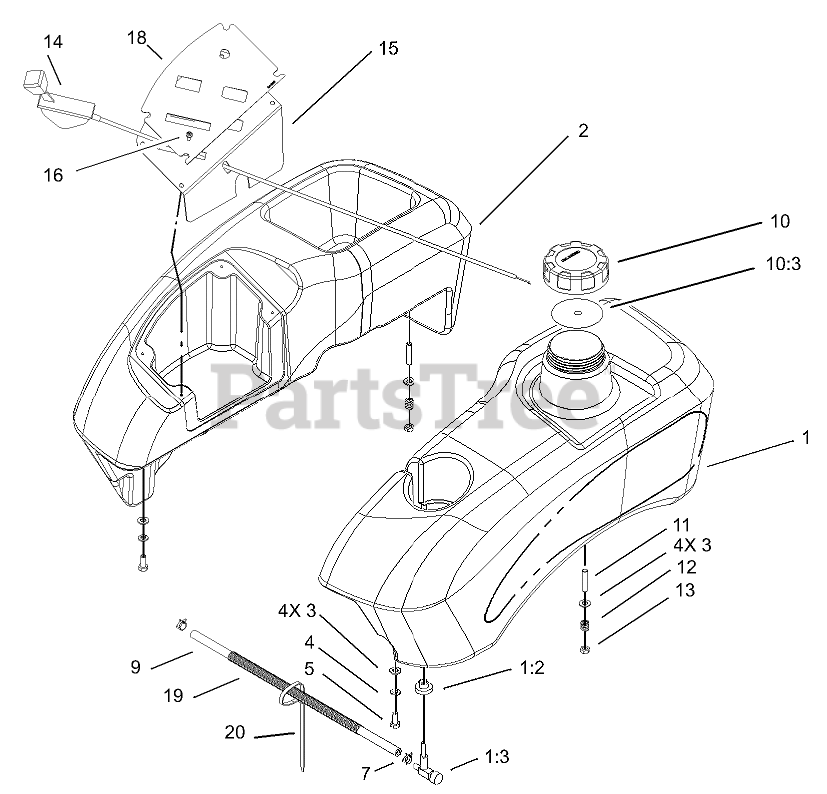

FUEL TANK AND CONTROL POD ASSEMBLY Parts Diagram

  • Title

1

Toro 105-3494

Fuel Tank ASM

$512.99

$

Usually ships in 3-6 days

0

1:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 12

0

1:3

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

2

Toro 105-1918

Tank-Console

$

$

Not available

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

5

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

7

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

9

Toro 104-8060

HOSE-FUEL
(Superseded to 110-1872)

$33.99

$

Usually ships in 3-6 days

0

10

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

10:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

11

Toro 1-633023

STUD

$6.49

$

Usually ships in 3-6 days

0

12

Toro 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

13

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 10

0

14

Toro 104-8081

CABLE-THROTTLE

$115.99

$

In Stock, only 2 left!

0

15

Toro 104-3664-03

PANEL-CONTROL

$

$

Not available

16

Toro 3250-14

SCREW-PPH

$6.99

$

Usually ships in 3-6 days

0

18

Toro 104-8009

DECAL-PANEL, CONTROL

$

$

Not available

19

Toro 105-1854

COVER-CONDUIT

$

$

Not available

20

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
