74801 (18-52 ZX) - Toro 52" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) FRONT FRAME ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

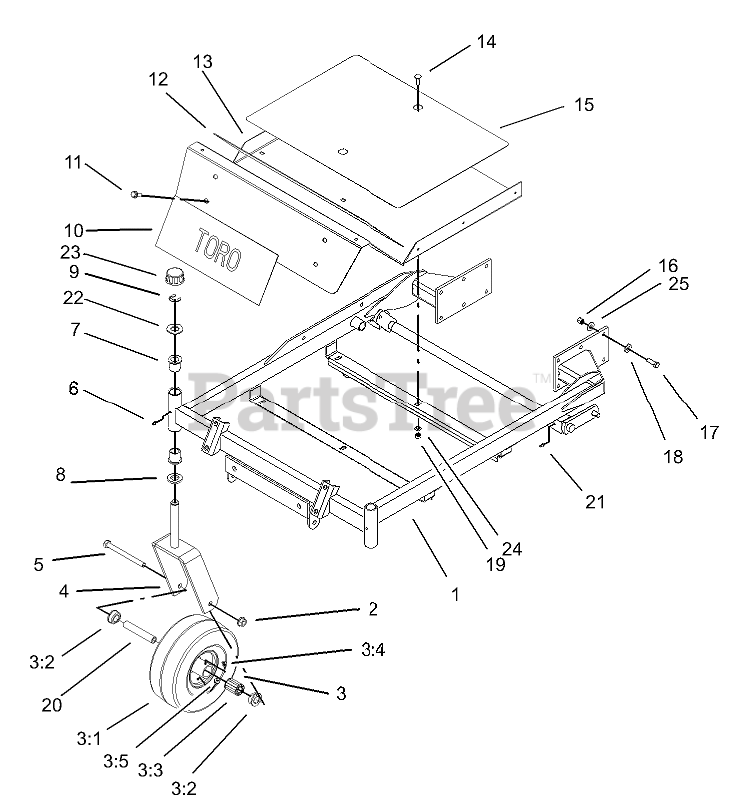

FRONT FRAME ASSEMBLY Parts Diagram

  • Title
1

Toro 100-7357-01

CARRIER FRAME ASM
(Superseded to 108-2311-01)

$2249.99

$

Usually ships in 3-6 days

0

2

Toro 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

3

Toro 100-7364

CASTER WHEEL ASM

$293.99

$

Usually ships in 3-6 days

0

3:1

$62.99

$

In Stock, only 1 left!

0

3:2

Toro 62-5580

BEARING-OUTSIDE

$7.49

$

In Stock, Qty 12

0

3:3

Toro 83-4740

BEARING

$14.99

$

In Stock, Qty 5

0

3:4

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0

3:5

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

Toro 93-4244

TUBE-INNER (W/VALVE)

Note: Not illustrated

$16.99

$

In Stock, only 2 left!

0

4

Toro 100-7363-01

CASTER FORK ASM

$231.99

$

In Stock, only 2 left!

0

5

Toro 325-22

SCREW-HH

$8.49

$

In Stock, Qty 7

0

6

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7

Toro 1-303514

BEARING-FLANGED

$12.99

$

In Stock, Qty 20+

0

8

Toro 1-513338

WASHER-FLAT

$4.49

$

In Stock, Qty 20+

0

9

Toro 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

10

Toro 67-7320

DECAL

$36.99

$

In Stock, only 2 left!

0

11

Toro 66-9300

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

12

Toro 104-3639

PAD-SKID, ANTI

$

$

Not available

13

Toro 100-7386-03

FLOORPAN

$

$

Not available

14

Toro 3230-28

SCREW-CARR

$5.49

$

Usually ships in 3-6 days

0

15

Toro 104-3640

PAD-SKID, ANTI

$

$

Not available

16

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

17

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

18

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

19

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

20

Toro 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 20+

0

21

Toro 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

22

Toro 104-8076

WASHER

$5.49

$

In Stock, Qty 20+

0

23

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 1-809107

WASHER-HARDENED

$5.49

$

In Stock, only 2 left!
