748003-0020-01 - Briggs & Stratton Electric Motor Motor,Controls,Cover,748004 Parts Diagram

Electric Motor

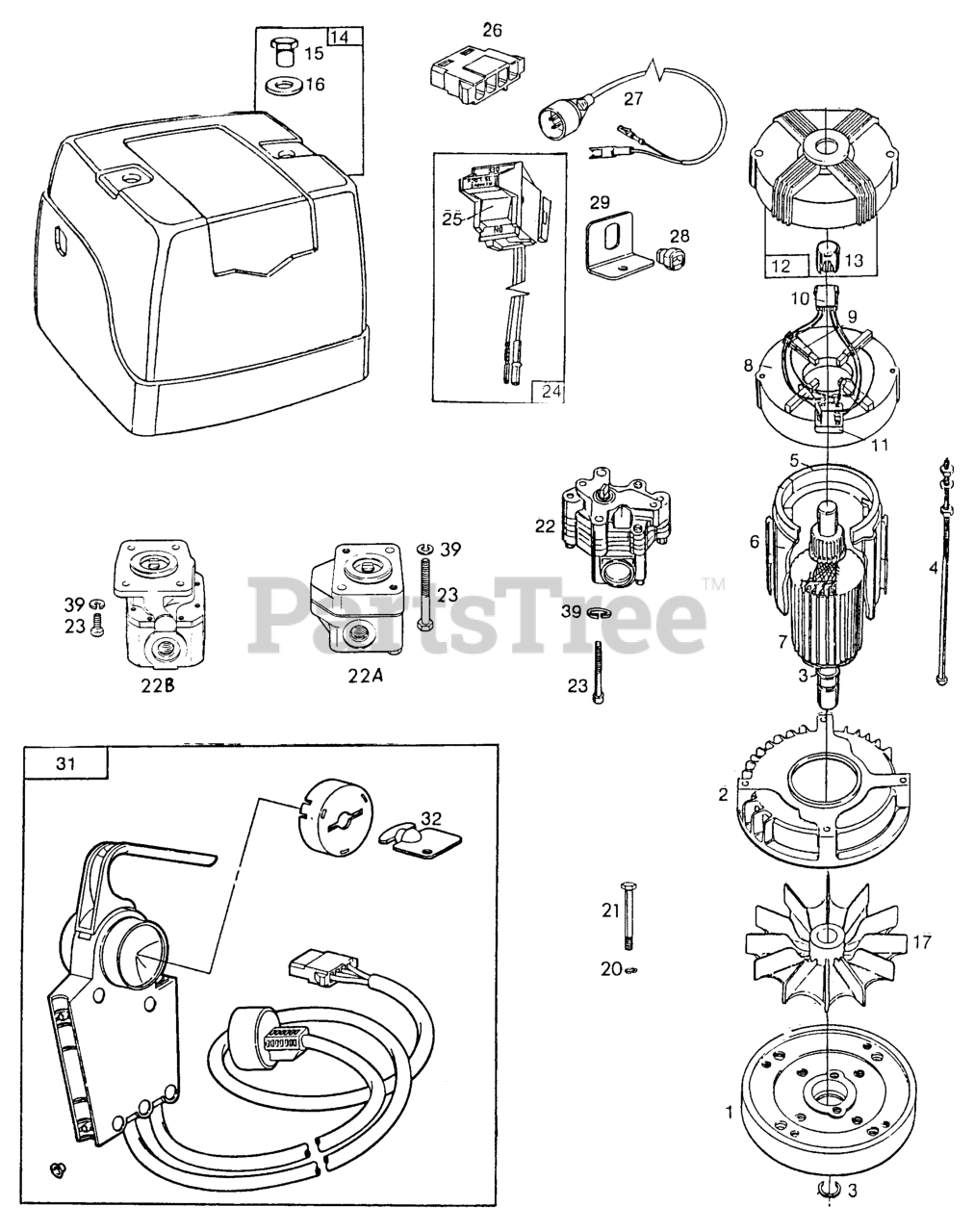

Motor,Controls,Cover,748004 Parts Diagram

  • Title

1

Briggs & Stratton 397662

Bearing Housing Assembly

Note: Used Before Code Date 850725011

$117.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 399354

Housing Assembly-Bearing

Note: Used After Code Date 850724011

$50.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 212888

Housing-Fan

Note: Used Before Code Date 850725011

$131.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 213119

Housing-Fan

Note: Used After Code Date 850724011

$39.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 394770

End Cap-Drive

$55.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 397666

End Cap-Drive

$35.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 395477

Ring Set-Retaining

$0.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 399809

Ring Set-Retaining

$5.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 395471

Screw/Washer Kit (Includes 2 Sets)

$5.49

$

In Stock, only 1 left!

0

5

Briggs & Stratton 394750

Housing-Motor (Includes Magnets)

$62.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 395468

Insulator-Housing (2 Pieces)
(Superseded to 490830)

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 396546

Armature Group

$9.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 397978

Armature Group

$143.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 398672

Armature & Fan Group

$119.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 398856

Armature Group

$150.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 280361

Box-Brush

Note: Used Before Code Date 8512171

$16.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 280569

Box-Brush

Note: Used After Code Date 8512161

$11.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 395467

Brush Set-Str (Includes Brush Holders)

Note: Used Before Code Date 8512171

$

$

Not available

9

Briggs & Stratton 398575

Brush Group (Includes Brush Holders And Retainers)

Note: Used After Code Date 8512161

$34.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 395478

Lead Group

$22.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 394777

Rectifier

$18.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 394773

End Cap-Brush

Note: Used Before Code Date 8512171

$26.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 398440

End Cap-Brush

Note: Used After Code Date 8512161

$15.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 394769

Bearing-Needle

$4.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 396267

Cover-Motor (Includes Hardware And Filter)

$26.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 398142

Cover Group-Motor (Includes Hardware) Optional
(Superseded to 490182)

$21.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 399100

Cover-Motor

$70.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 490182

Cover-Motor (Vertical Mount) (Includes Hardware)

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 231298

Nut-Hex.

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 93852

Washer, Steel Zinc
(Superseded to 690310)

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 223461

Fan

$14.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 491389

Fan

$20.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 90832

Washer-Lock
(Superseded to 22097GS)

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 94052

Screw-Hex. Head

Note: Used Before Code Date 850725011

$

$

Not available

21

Briggs & Stratton 94151

Screw-Hex. Head

Note: Used After Code Date 850724011

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 397793

Pump-Hydraulic

$209.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 94134

Screw-Socket Head

$1.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 398135

Switch-Starter

$37.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 280594

Switch-Key

$5.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 280081

Socket-Regulator And Rectifier Lead Wire

$5.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 398270

Cord-Power Supply

$27.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 280556

Bushing-Cord

$3.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 223555

Bracket-Bushing

$10.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 399192

Motor Control (Four Conductor) (12 Amp)

$80.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 280593

Key Set (Includes 2 Keys)

$5.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

Note: (Note: Used on all Type Nos. Except 0020,0112)

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 90366

Lockwasher, Zinc Pl
(Superseded to 691075)

$3.49

$

Usually ships in 2-12 days

0
