74798 (SWX 5050) - Toro 50" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) STEERING CABLE ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

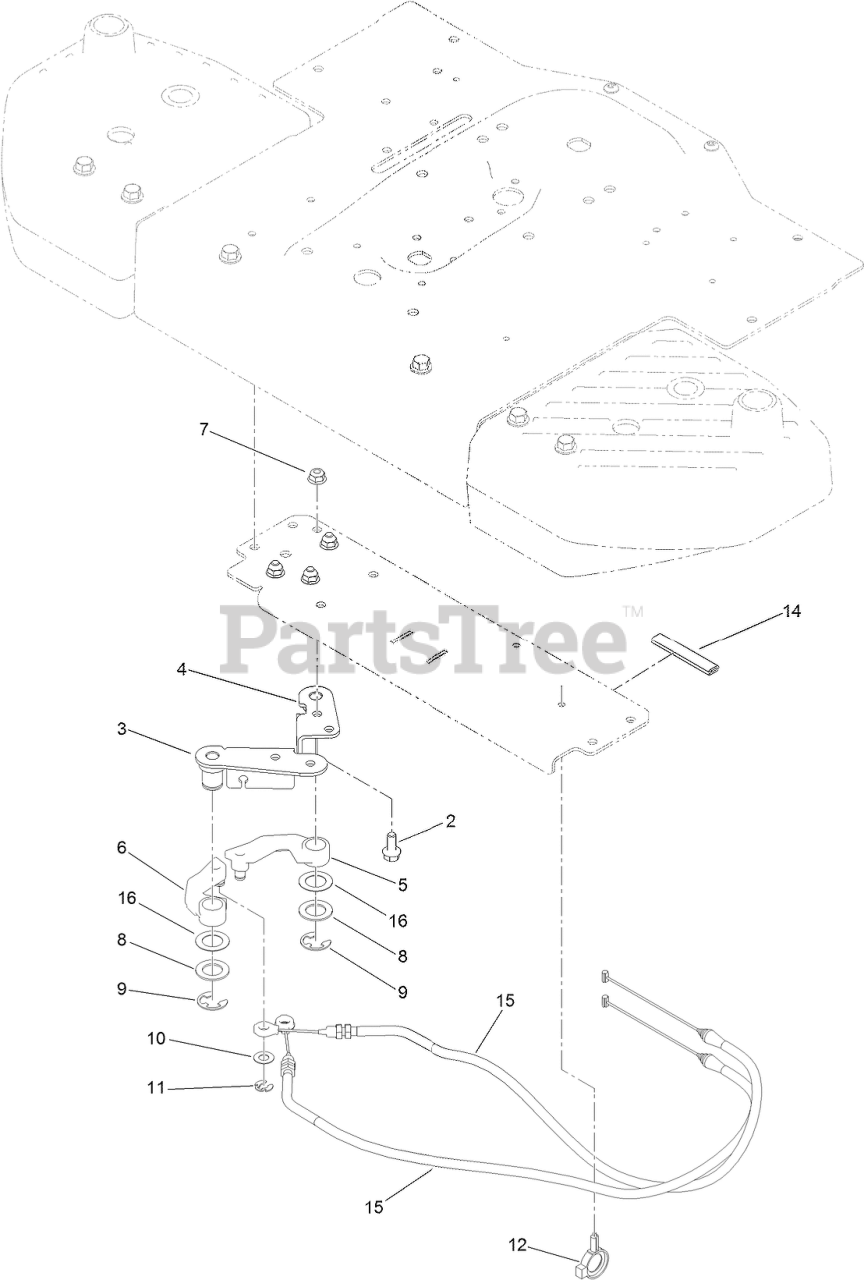

STEERING CABLE ASSEMBLY Parts Diagram

  • Title

2

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

3

Toro 131-3952

CABLE BRACKET ASM

$35.99

$

Usually ships in 3-6 days

0

4

Toro 131-3953

CABLE BRACKET ASM

$35.99

$

Usually ships in 3-6 days

0

5

Toro 131-3623

ARM-CABLE, RH

$41.99

$

Usually ships in 3-6 days

0

6

Toro 131-3647

ARM-CABLE, LH

$41.99

$

Usually ships in 3-6 days

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

8

Toro 119-7640

WASHER-THRUST

$3.49

$

In Stock, Qty 11

0

9

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

10

Toro 37-8080

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

11

Toro 32151-47

RING-RETAINING

$2.99

$

In Stock, only 3 left!

0

12

Toro 105-1853

CLAMP-HOSE

$5.49

$

In Stock, only 4 left!

0

14

Toro 105-7699

STRIP-SEAL

$9.49

$

In Stock, Qty 20+

0

15

Toro 127-0118

CABLE-STEERING

$44.99

$

In Stock, only 4 left!

0

16

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0
