74798 (SWX 5050) - Toro 50" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) HYDRO TRANSAXLE DRIVE AND REAR WHEEL ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

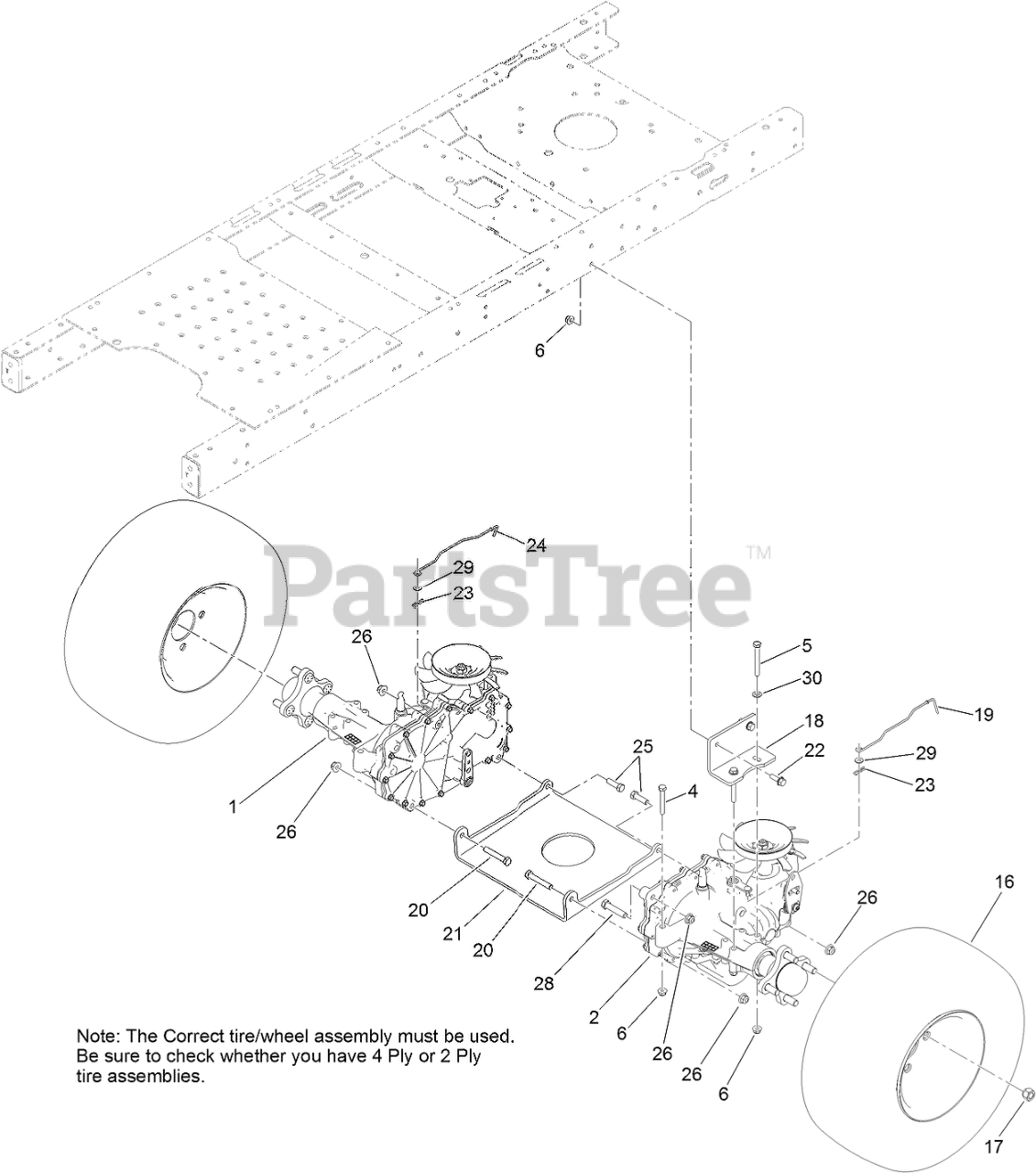

HYDRO TRANSAXLE DRIVE AND REAR WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 130-6961

RH HYDRO TRANSMISSION ASM
(Superseded to 140-5191)

$1507.99

$

Usually ships in 3-6 days

0

2

Toro 130-6960

LH HYDRO TRANSMISSION ASM
(Superseded to 140-5190)

$1659.99

$

Usually ships in 3-6 days

0

4

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

5

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

6

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

16

Toro 109-5268

4 PLY WHEEL AND TIRE ASM

$299.99

$

Usually ships in 3-6 days

0

16

Toro 131-3673

2 PLY TIRE AND WHEEL ASM
(Superseded to 133-9278)

$215.99

$

In Stock, only 2 left!

0

17

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

18

Toro 121-0745-01

MOUNT-HYDRO

$34.99

$

Usually ships in 3-6 days

0

19

Toro 130-7048

ROD-BYPASS, LH

$8.99

$

Usually ships in 3-6 days

0

20

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 130-0718-01

PLATE-CROSS, HYDRO

$71.99

$

Usually ships in 3-6 days

0

22

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

23

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

24

Toro 130-7047

ROD-BYPASS, RH

$8.99

$

Usually ships in 3-6 days

0

25

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

30

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
