74795 (SWX 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 401000000 - 402793286) Seat Pan Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

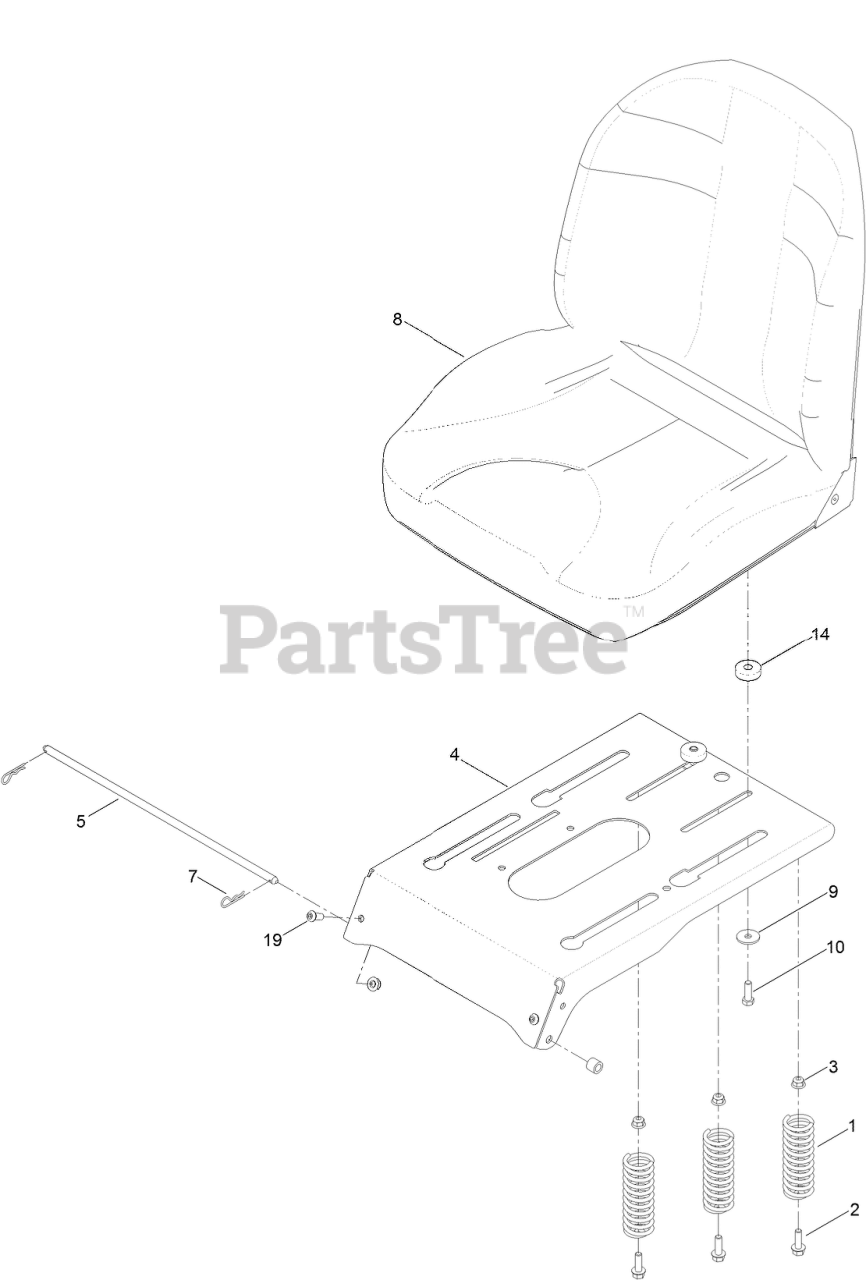

Seat Pan Assembly Parts Diagram

  • Title
1

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

2

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 136-5571-03

PAN-SEAT, DELUXE

$63.99

$

Usually ships in 3-6 days

0

5

Toro 119-3433

ROD-PIVOT, NARROW

$12.99

$

Usually ships in 3-6 days

0

7

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

8

Toro 136-5575

See Supercession: 137-1991
(Superseded to 137-1991)

$376.99

$

Usually ships in 3-6 days

0

9

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

10

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 136-5572

BUSHING-SLIDE, SEAT

$2.99

$

In Stock, only 2 left!

0

19

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0
