74790 (SW 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 316000001 - 316999999) (2016) STEERING GEAR ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

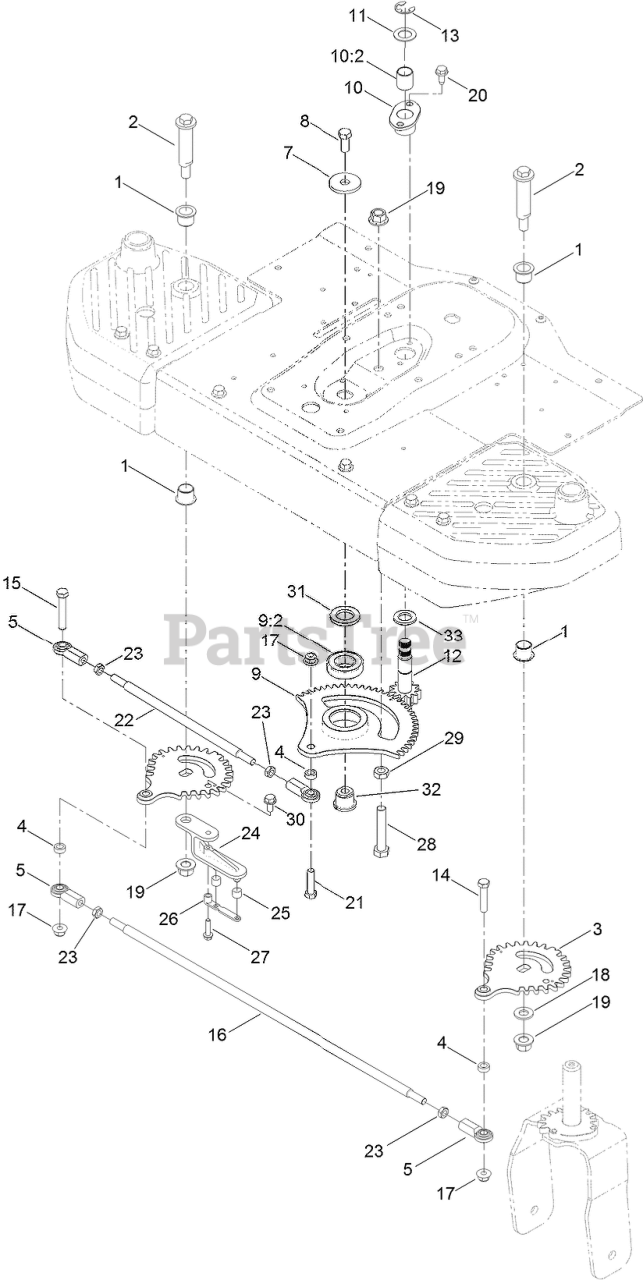

STEERING GEAR ASSEMBLY Parts Diagram

  • Title
1

Toro 103-4398

BEARING-FLANGE, IGLIDE

$11.99

$

Usually ships in 3-6 days

0

2

Toro 131-1031

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

3

Toro 130-0830

GEAR-WHEEL, 30 TEETH

$44.99

$

In Stock, only 3 left!

0

4

Toro 83-1050

SPACER

$7.99

$

Usually ships in 3-6 days

0

5

Toro 103-0608

JOINT-BALL, END

$33.99

$

In Stock, Qty 5

0

7

Toro 84-1560

WASHER-THRUST

$10.99

$

Usually ships in 3-6 days

0

8

Toro 324-4

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

9

Toro 131-8731

SECTOR GEAR ASM

$86.99

$

Usually ships in 3-6 days

0

9:2

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

10

Toro 131-8733

FLANGE BEARING ASM

$66.99

$

In Stock, only 1 left!

0

10:2

Toro 115-7019

BUSHING-STRAIGHT

$10.99

$

Usually ships in 3-6 days

0

11

Toro 119-7640

WASHER-THRUST

$3.49

$

In Stock, Qty 11

0

12

Toro 125-5508

LOWER STEERING SHAFT ASM

$231.99

$

Usually ships in 3-6 days

0

13

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

14

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

16

Toro 130-6986

ROD-CROSS, WIDE

$30.99

$

Usually ships in 3-6 days

0

17

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

18

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

19

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

22

Toro 131-1037

ROD-STEERING, WIDE

$153.99

$

Usually ships in 3-6 days

0

23

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

24

Toro 130-6878

LEVER-CABLE

$54.99

$

In Stock, only 1 left!

0

25

Toro 131-3951

BUSHING

$2.99

$

In Stock, only 2 left!

0

26

Toro 131-3950

STRAP-ROLLER

$14.99

$

Usually ships in 3-6 days

0

27

Toro 32144-86

SCREW-HWHTF

$1.49

$

In Stock, Qty 20+

0

28

Toro 325-11

SCREW-HH

$3.49

$

In Stock, Qty 7

0

29

Toro 3218-5

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

30

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

31

Toro 131-8736

SPACER-BEARING

$30.99

$

Usually ships in 3-6 days

0

32

Toro 131-8737

PIVOT-BEARING

$43.99

$

In Stock, only 1 left!

0

33

Toro 70-1160

WASHER

$3.99

$

Usually ships in 3-6 days

0
