74790 (SW 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) SEAT ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

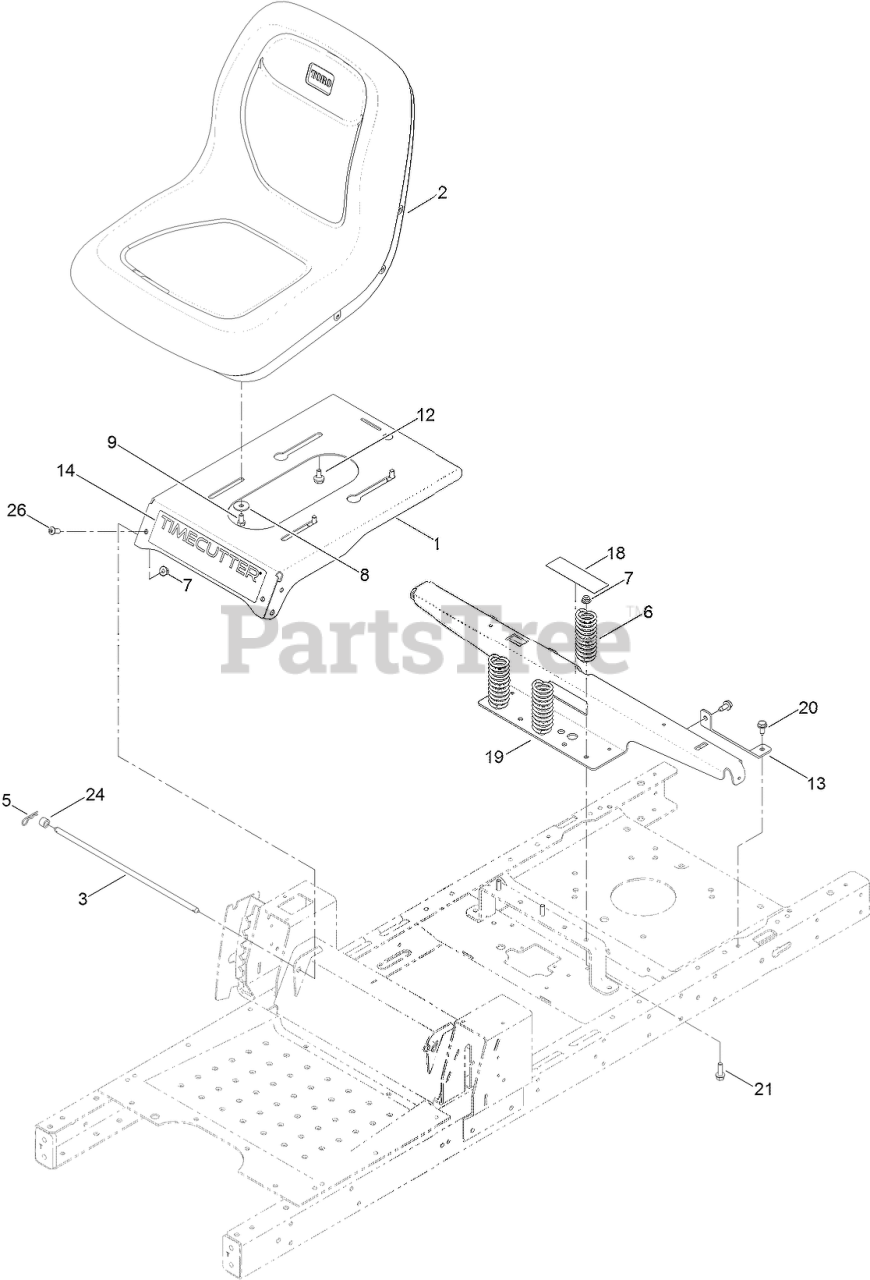

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3391-01

PAN-SEAT
(Superseded to 133-4468)

$108.99

$

In Stock, only 1 left!

0

2

Toro 119-8829

SEAT-18 INCH

$337.99

$

Usually ships in 3-6 days

0

3

Toro 115-4966

ROD-STOP

$20.99

$

Usually ships in 3-6 days

0

5

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

6

Toro 92-7054

SPRING-COMPRESSION

$22.99

$

In Stock, Qty 8

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

9

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, Qty 15

0

13

Toro 119-3431-03

SUPPORT-TANK, REAR

$6.99

$

Usually ships in 3-6 days

0

14

Toro 131-3658

DECAL-TIMECUTTER

$17.99

$

Usually ships in 3-6 days

0

18

Toro 106-8717

DECAL-SERVICE, CE

$8.49

$

Usually ships in 3-6 days

0

19

Toro 131-1039-03

SUPPORT-POD, WIDE

$132.99

$

Usually ships in 3-6 days

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

24

Toro 1-413088

BUSHING-LEVER, LIFT

$11.99

$

In Stock, Qty 11

0

26

Toro 131-4080

SCREW-HSBH

$1.49

$

Usually ships in 3-6 days

0
