74785 (SW 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) CASTER WHEEL ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

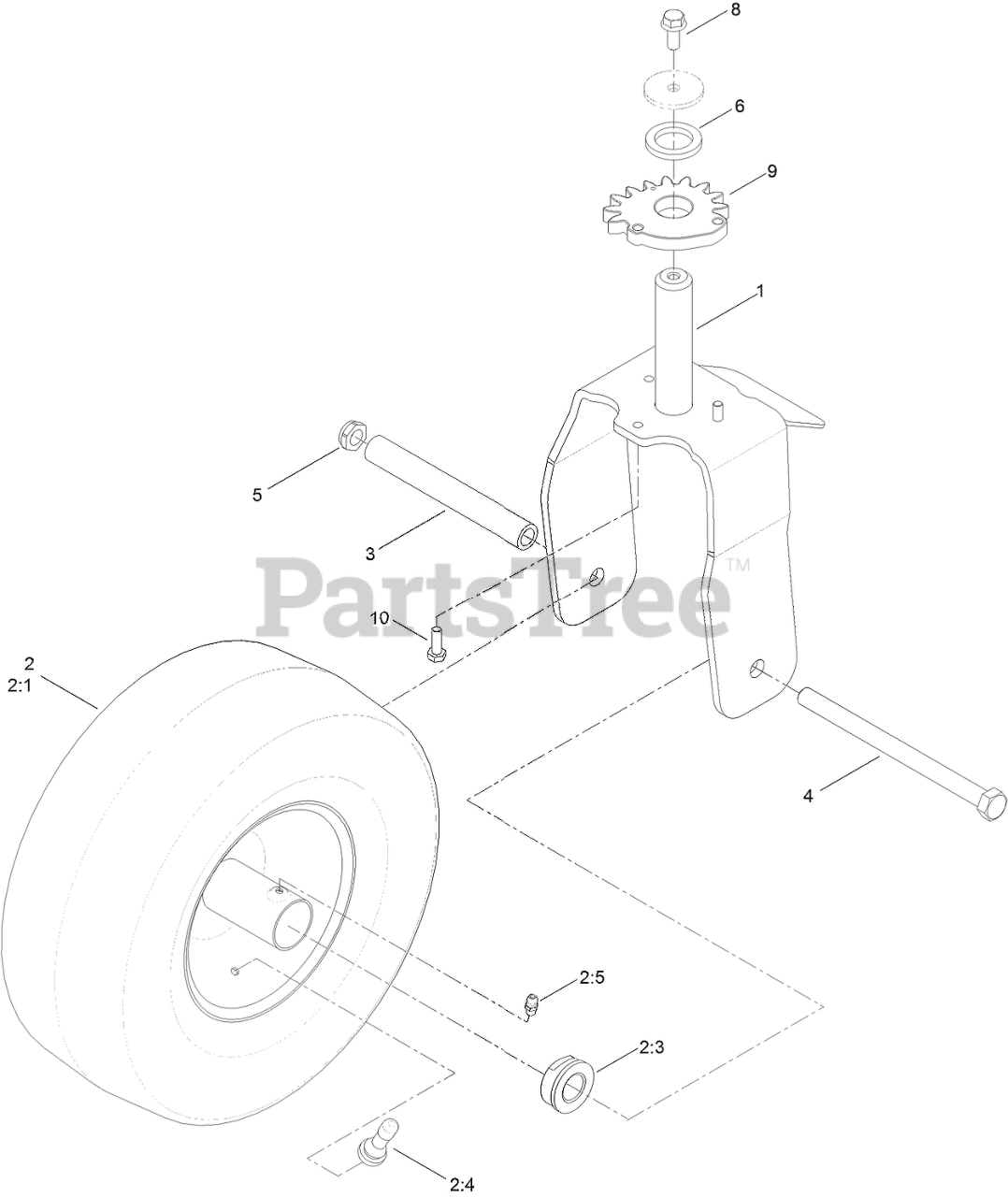

CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 130-0670-03

CASTER FORK ASM

$94.99

$

Usually ships in 3-6 days

0

2

Toro 119-3473

13 INCH WHEEL AND TIRE ASM

$120.99

$

In Stock, only 3 left!

0

2:1

Toro 119-3471

TIRE-13 Inch

$88.99

$

In Stock, only 2 left!

0

2:3

Toro 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

2:4

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 17

0

2:5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2:99

Toro 232-46

TUBE-INNER

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

3

Toro 119-3475

SPANNER

$11.99

$

In Stock, Qty 9

0

4

Toro 325-37

SCREW-HH

$6.99

$

In Stock, Qty 8

0

5

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

6

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, only 2 left!

0

8

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

9

Toro 130-0689

GEAR-WHEEL, 15 TEETH

$25.99

$

Usually ships in 3-6 days

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
