74785 (SW 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) BATTERY AND ELECTRICAL ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

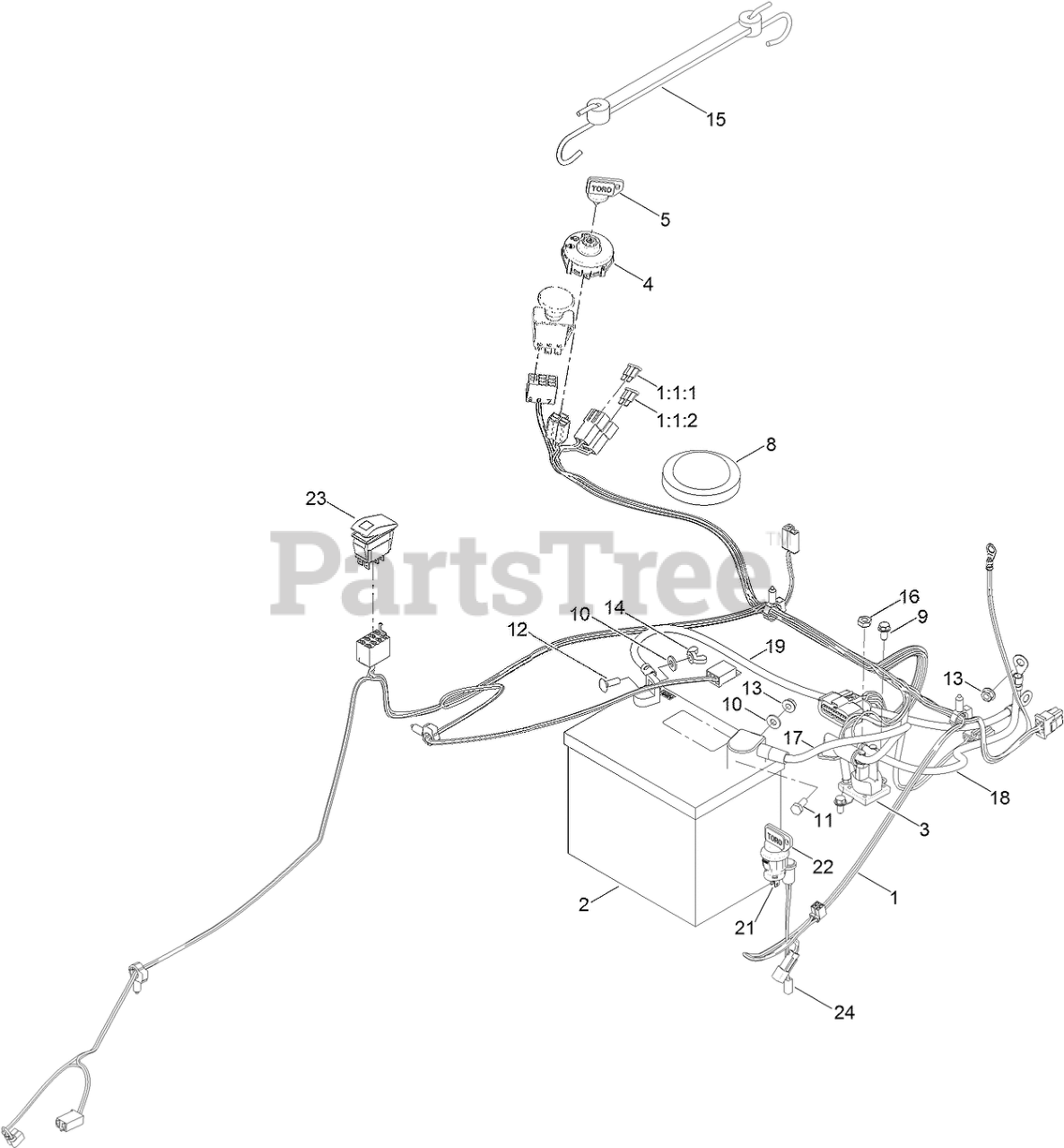

BATTERY AND ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 136-7483

HARNESS-WIRE

$221.99

$

In Stock, only 2 left!

0

1:1:1

Toro 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 6

0

1:1:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.99

$

In Stock, Qty 8

0

1:1

HARNESS-WIRE

Note: Not serviced separately

$

$

Not available

2

Toro 105-1692

BATTERY

$

$

Not available

3

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

4

Toro 117-2221

SWITCH-IGNITION
(Superseded to 137-4100)

$35.99

$

In Stock, Qty 20+

0

5

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

8

Toro 100-3524

SWITCH-SEAT

$62.99

$

In Stock, only 4 left!

0

9

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

13

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

14

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

15

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

16

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

17

Toro 119-8897

CABLE-BATTERY, RED

$22.99

$

In Stock, only 1 left!

0

18

Toro 121-0711

CABLE-BATTERY, POSITIVE

$14.99

$

In Stock, only 4 left!

0

19

Toro 121-5726

CABLE-BATTERY, BLACK

$17.99

$

In Stock, only 1 left!

0

21

Toro 119-3068

SWITCH-MOMENTARY, N.O.

$20.99

$

In Stock, only 1 left!

0

22

Toro 131-3639

KEY-TORO

$4.49

$

In Stock, only 3 left!

0

23

Toro 132-9302

Switch-Rocker, (ON)-Off-(ON)

$47.99

$

Usually ships in 3-6 days

0

24

Toro 131-4136

LIGHT-INDICATOR

$28.99

$

Usually ships in 3-6 days

0
