74785 (SW 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) BODY STYLING AND FUEL TANK ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

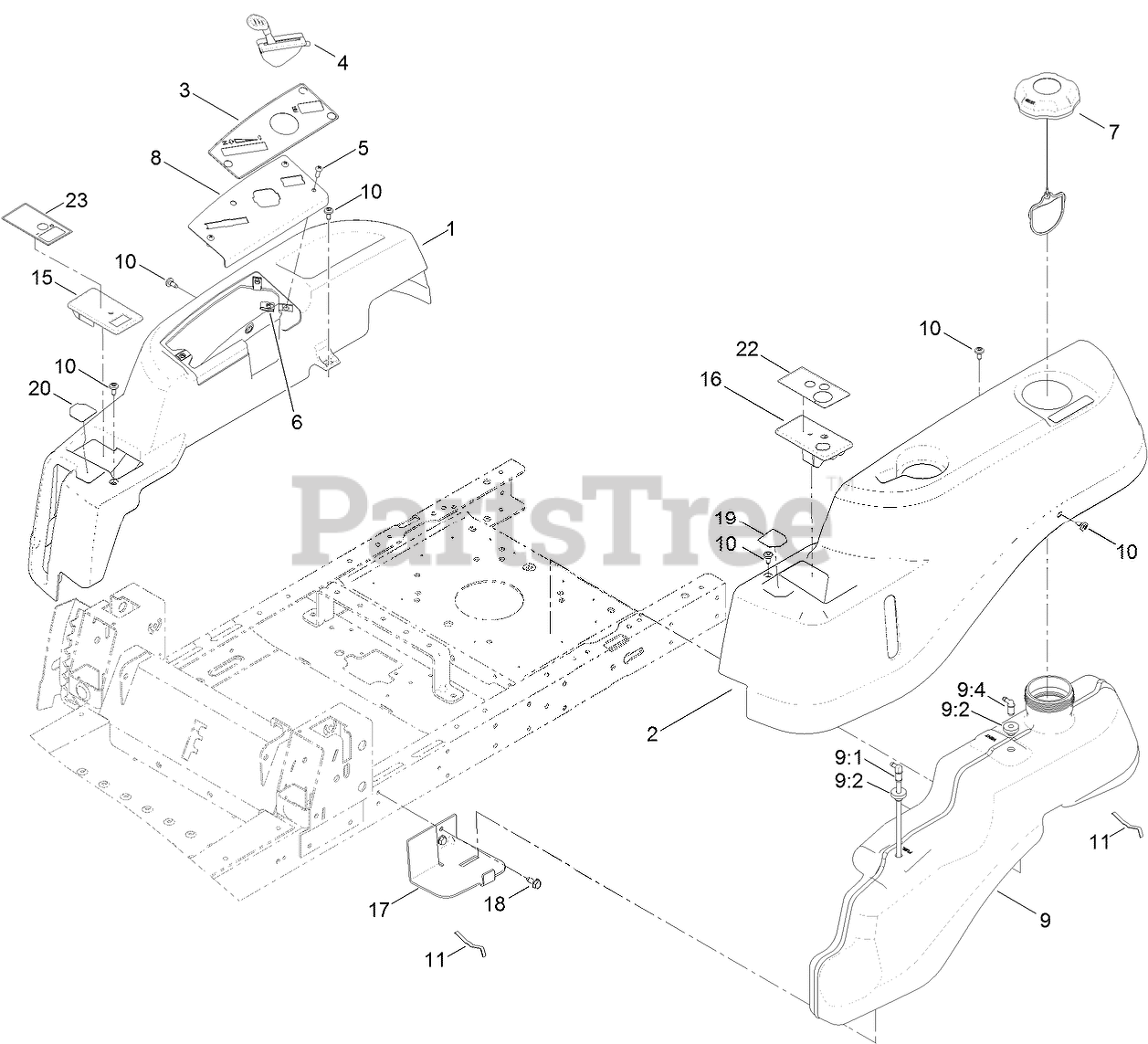

BODY STYLING AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3335

POD-RH

$77.99

$

Usually ships in 3-6 days

0

2

Toro 119-3334

POD-LH
(Superseded to 137-7008)

$77.99

$

In Stock, only 1 left!

0

3

Toro 131-4161

DECAL-PANEL, CONTROL

$17.99

$

Usually ships in 3-6 days

0

4

Toro 121-5674

CABLE-THROTTLE (45.0 IN)

$55.99

$

In Stock, only 3 left!

0

5

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

6

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

7

Toro 120-5461

CAP-FUEL, RATCHETING
(Superseded to 137-4119)

$27.99

$

In Stock, Qty 6

0

8

Toro 119-3378-03

PLATE-CONTROL

$9.49

$

Usually ships in 3-6 days

0

9

Toro 119-3324

FUEL TANK ASM

$322.99

$

In Stock, only 4 left!

0

9:1

Toro 121-0793

CONNECTOR-ELBOW, 90 DEG

$11.99

$

In Stock, only 3 left!

0

9:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

9:4

Toro 117-7400

FITTING-PLASTIC

$6.49

$

In Stock, only 3 left!

0

10

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

11

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

15

Toro 130-7041

COVER-RH

$10.99

$

Usually ships in 3-6 days

0

16

Toro 130-7042

COVER-LH

$10.99

$

Usually ships in 3-6 days

0

17

Toro 119-3476-03

SUPPORT-TANK, FRONT

$13.99

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

19

Toro 131-3621

DECAL-NMIR

$2.99

$

Usually ships in 3-6 days

0

20

Toro 131-3620

DECAL-CONTROL, PEDAL

$2.99

$

Usually ships in 3-6 days

0

22

Toro 131-3665

DECAL-KEYCHOICE

$6.99

$

In Stock, only 4 left!

0

23

Toro 131-3955

DECAL-BRAKE, PARKING

$6.99

$

Usually ships in 3-6 days

0
