74784 (SW 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) STEERING COLUMN ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

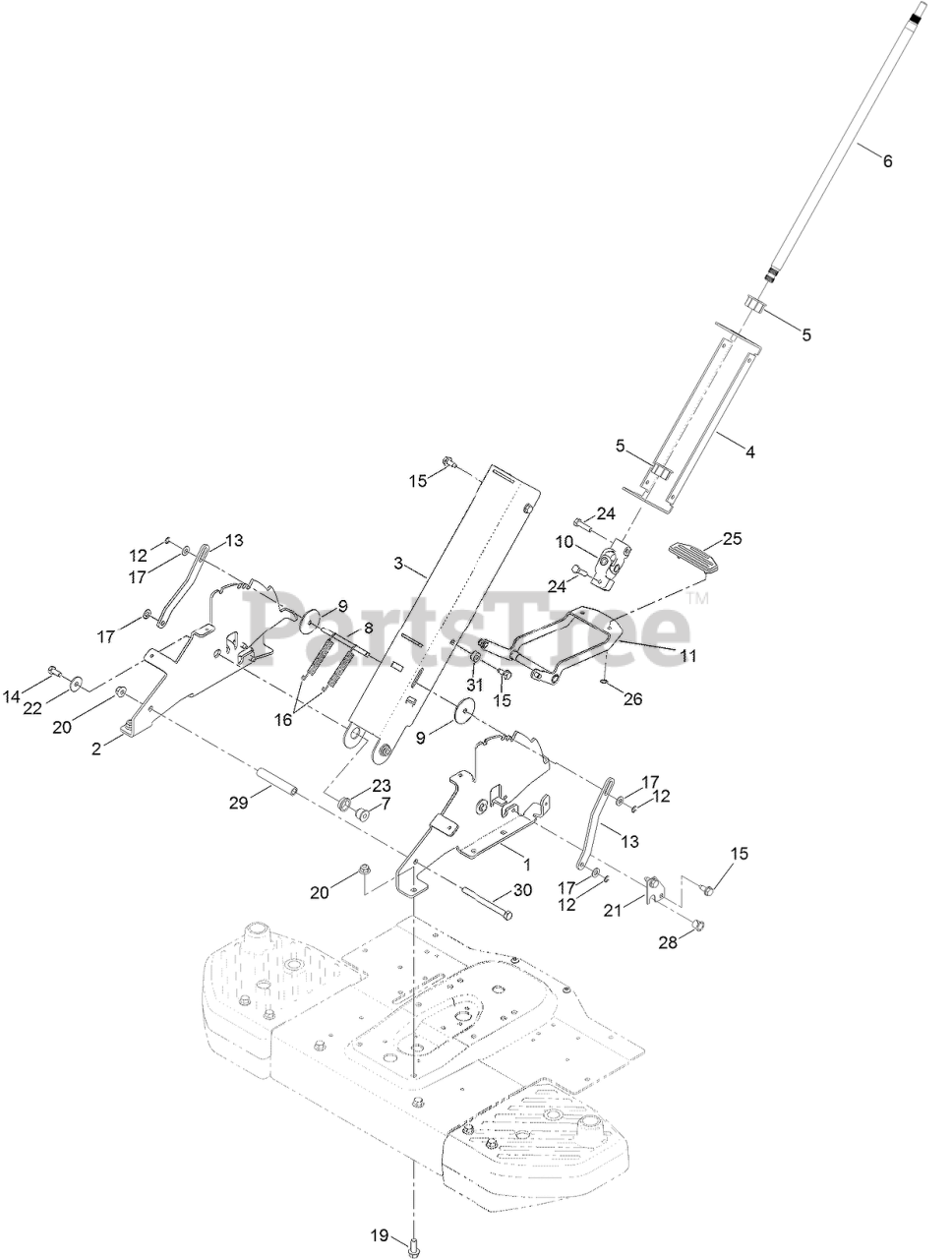

STEERING COLUMN ASSEMBLY Parts Diagram

  • Title
1

Toro 131-1052-03

BRACKET-PIVOT, COLUMN (LH)

$53.99

$

Usually ships in 3-6 days

0

2

Toro 131-1053-03

BRACKET-PIVOT, COLUMN (RH)

$53.99

$

Usually ships in 3-6 days

0

3

Toro 131-1054-01

COLUMN-FRONT

$46.99

$

In Stock, only 1 left!

0

4

Toro 131-1055-01

COLUMN-BACK

$34.99

$

Usually ships in 3-6 days

0

5

Toro 93-1146

BUSHING-STEERING, UPPER

$11.99

$

In Stock, only 1 left!

0

6

Toro 125-5507

SHAFT-STEERING, UPPER

$57.99

$

Usually ships in 3-6 days

0

7

Toro 131-1056

SPACER-PIVOT, COLUMN

$13.99

$

In Stock, only 2 left!

0

8

Toro 131-1050

ROD-PLUNGER

$14.99

$

Usually ships in 3-6 days

0

9

Toro 131-8729

WASHER-SHAFT, TILT

$5.49

$

Usually ships in 3-6 days

0

10

Toro 131-1030

U-JOINT ASM

$90.99

$

Usually ships in 3-6 days

0

11

Toro 131-7726

RELEASE PEDAL ASM

$79.99

$

Usually ships in 3-6 days

0

12

Toro 701197

E-RING

$3.49

$

Usually ships in 3-6 days

0

13

Toro 131-1049

PLATE-PLUNGER

$5.49

$

Usually ships in 3-6 days

0

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

16

Toro 130-6998

SPRING-EXTENSION

$5.49

$

Usually ships in 3-6 days

0

17

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

19

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

20

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 131-1043

PLATE-RETAINER

$2.99

$

Usually ships in 3-6 days

0

22

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

23

Toro 99-4243

BUSHING-FLANGE

$3.99

$

In Stock, only 2 left!

0

24

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

25

Toro 131-4096

PAD-TILT PEDAL

$6.49

$

Usually ships in 3-6 days

0

26

Toro 32112-6

NUT-PUSH

$6.49

$

In Stock, only 4 left!

0

28

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

29

Toro 131-3697

SPACER

$7.99

$

In Stock, only 1 left!

0

30

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

31

Toro 121-1759

SPACER

$2.99

$

In Stock, only 1 left!

0
