74781 (SW 3200) - Toro 32" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) FUEL DELIVERY ASSEMBLY Parts Diagram

32" TimeCutter Zero-Turn Mower

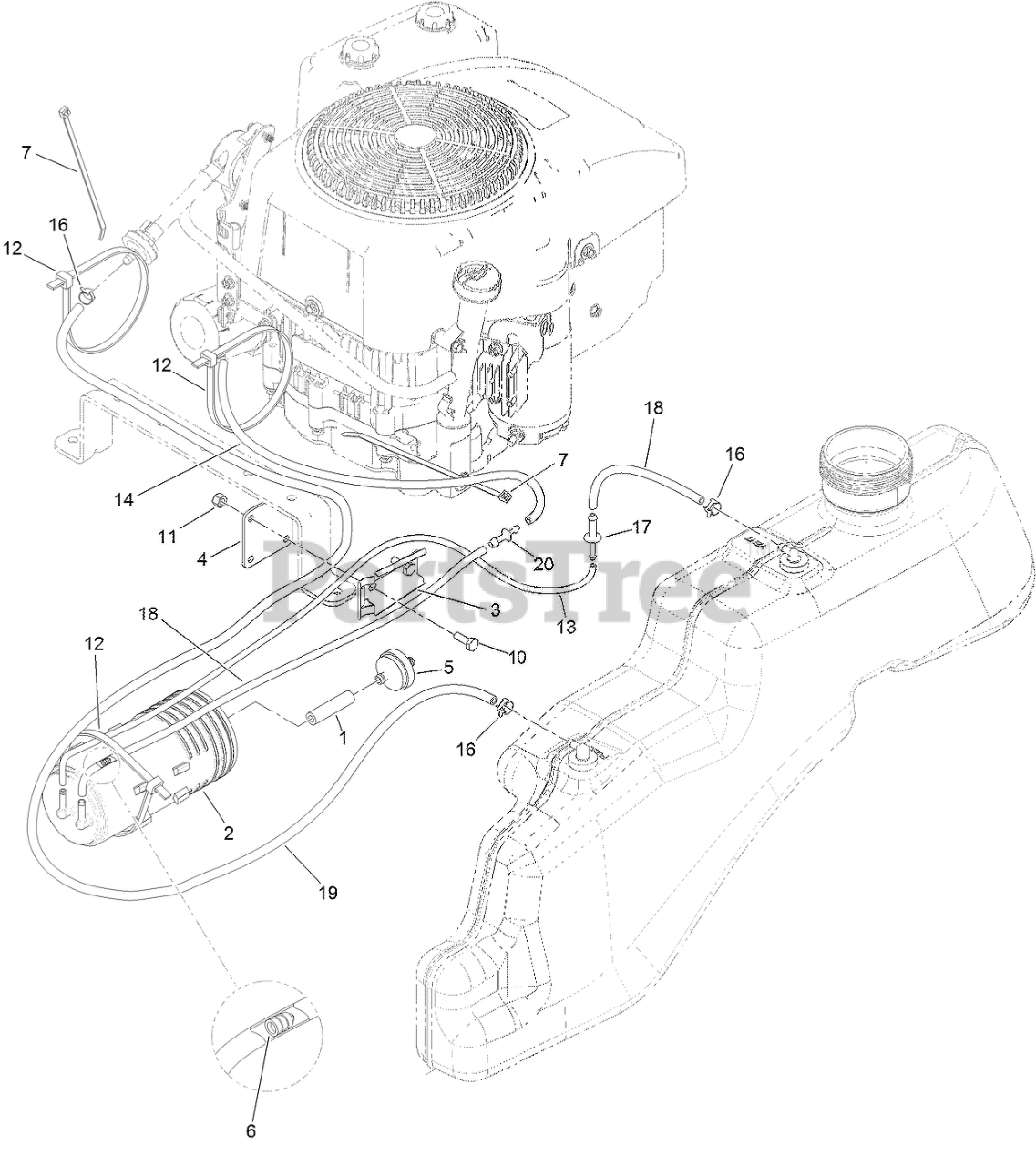

FUEL DELIVERY ASSEMBLY Parts Diagram

  • Title

1

Toro 99-9415

HOSE-FUEL

$3.49

$

In Stock, Qty 5

0

2

Toro 117-1221

CANISTER-CARBON, 800CC

$75.99

$

Usually ships in 3-6 days

0

3

Toro 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

4

Toro 119-8992-03

PLATE-ADAPTER

$9.49

$

Usually ships in 3-6 days

0

5

Toro 115-7854

FILTER-FUEL, INLINE

$7.49

$

In Stock, Qty 12

0

6

Toro 120-2038

CARTRIDGE-VALVE, CHECK

$45.99

$

Usually ships in 3-6 days

0

7

Toro 614249

TIE-CABLE

$1.49

$

In Stock, only 2 left!

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

13

Toro 121-3003

HOSE-FUEL

$9.49

$

Usually ships in 3-6 days

0

14

Toro 132-6854

HOSE-FUEL

$18.99

$

Usually ships in 3-6 days

0

16

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

17

Toro 117-5399

ADAPTOR-ORIFICE

$3.49

$

In Stock, only 1 left!

0

18

Toro 110-1876

HOSE-FUEL

$12.99

$

In Stock, only 1 left!

0

19

Toro 109-0307

HOSE-FUEL

$21.99

$

In Stock, only 1 left!

0

20

Toro 106-8150

FITTING-STRAIGHT

$3.99

$

Usually ships in 3-6 days

0
