74780 (SW 3200) - Toro 32" TimeCutter Zero-Turn Mower (SN: 400000000 - 401099999) ENGINE AND MUFFLER ASSEMBLY Parts Diagram

32" TimeCutter Zero-Turn Mower

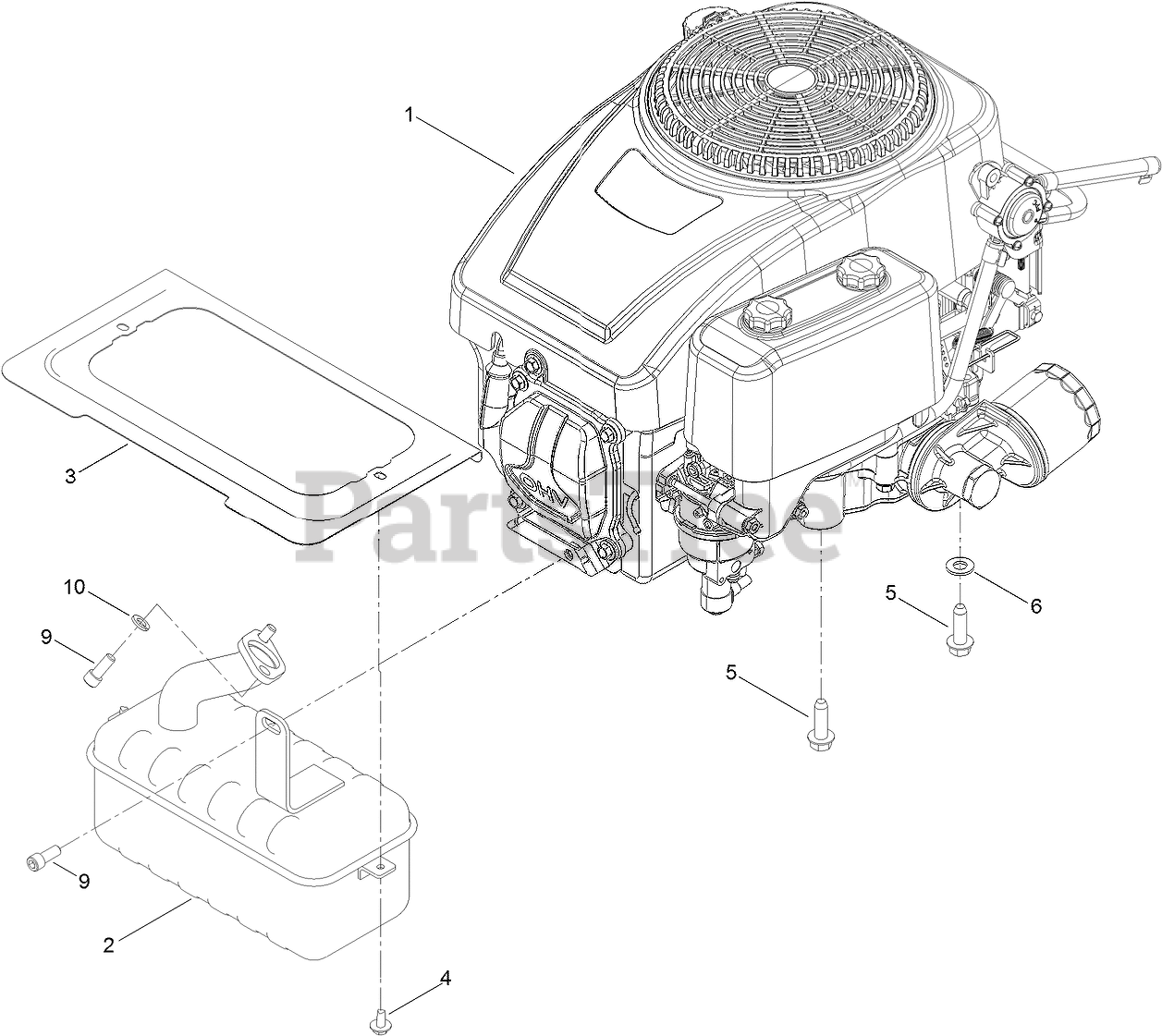

ENGINE AND MUFFLER ASSEMBLY Parts Diagram

  • Title
1

Toro 121-0412

ENGINE-1P92F-1
(Superseded to 133-9971)

$1940.99

$

Usually ships in 3-6 days

0

2

Toro 130-0691

MUFFLER

$122.99

$

In Stock, Qty 7

0

3

Toro 131-1071-03

SHIELD-HEAT

$20.99

$

In Stock, Qty 7

0

4

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

5

Toro 32144-109

SCREW-TAPTITE

$4.99

$

In Stock, Qty 7

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3274-10

SCREW-HSH

$10.99

$

In Stock, Qty 20+

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
