74780 (SW 3200) - Toro 32" TimeCutter Zero-Turn Mower (SN: 400000000 - 401099999) CASTER WHEEL ASSEMBLY Parts Diagram

32" TimeCutter Zero-Turn Mower

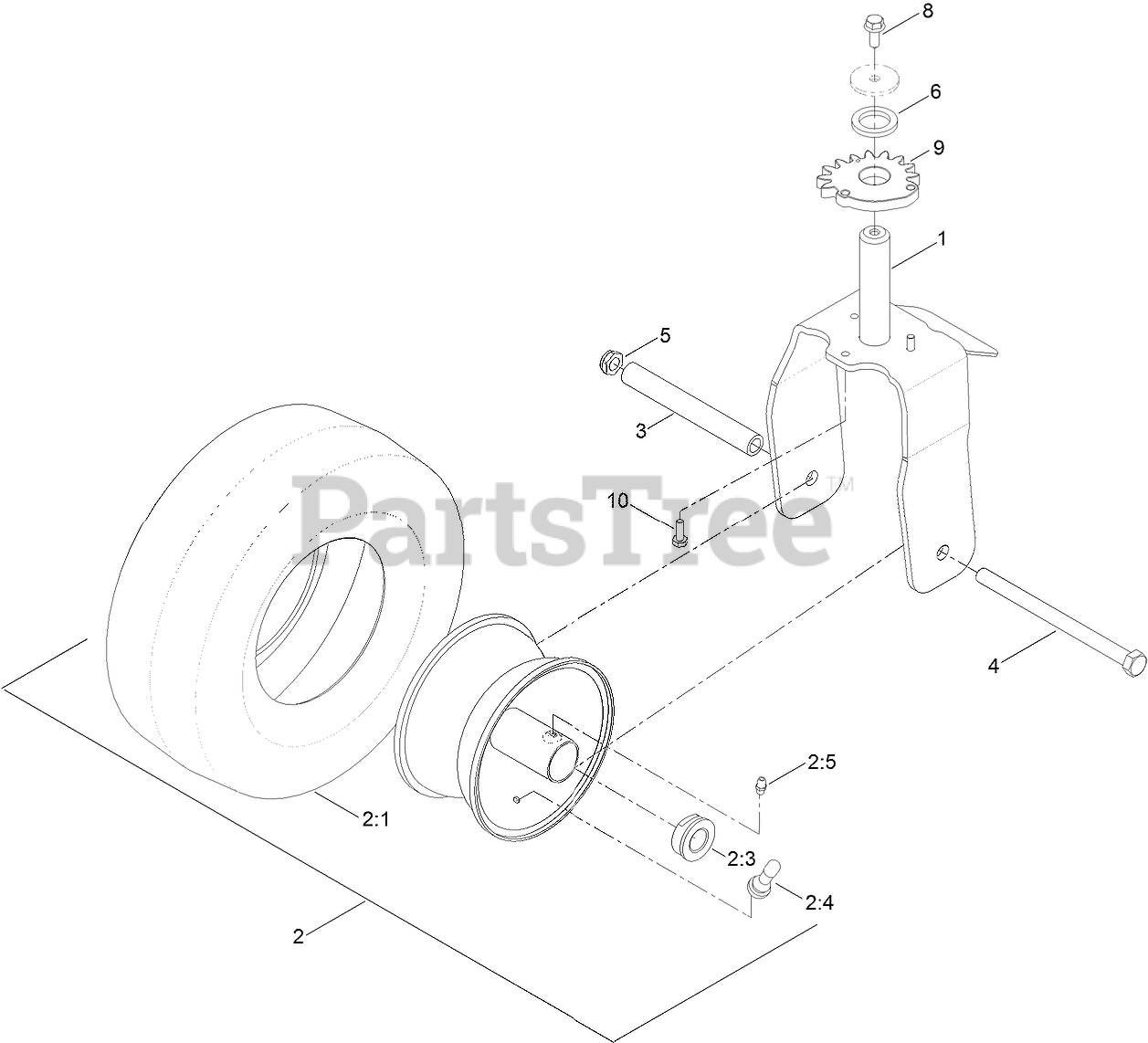

CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 130-6970-03

CASTER FORK ASM

$124.99

$

Usually ships in 3-6 days

0

2

Toro 130-0736

Caster Wheel ASM

$87.99

$

In Stock, only 4 left!

0

2:1

Toro 130-0735

TIRE

$49.99

$

In Stock, only 1 left!

0

2:3

Toro 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

2:4

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

2:5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2:6

Toro 105-0844

TUBE-INNER

Note: Optional Equipment

$46.99

$

In Stock, only 1 left!

0

3

Toro 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 10

0

4

Toro 325-22

SCREW-HH

$8.49

$

In Stock, Qty 7

0

5

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

6

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, only 2 left!

0

8

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

9

Toro 130-0689

GEAR-WHEEL, 15 TEETH

$26.99

$

Usually ships in 3-6 days

0

10

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
