74780 (SW 3200) - Toro 32" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) SPEED CONTROL ASSEMBLY Parts Diagram

32" TimeCutter Zero-Turn Mower

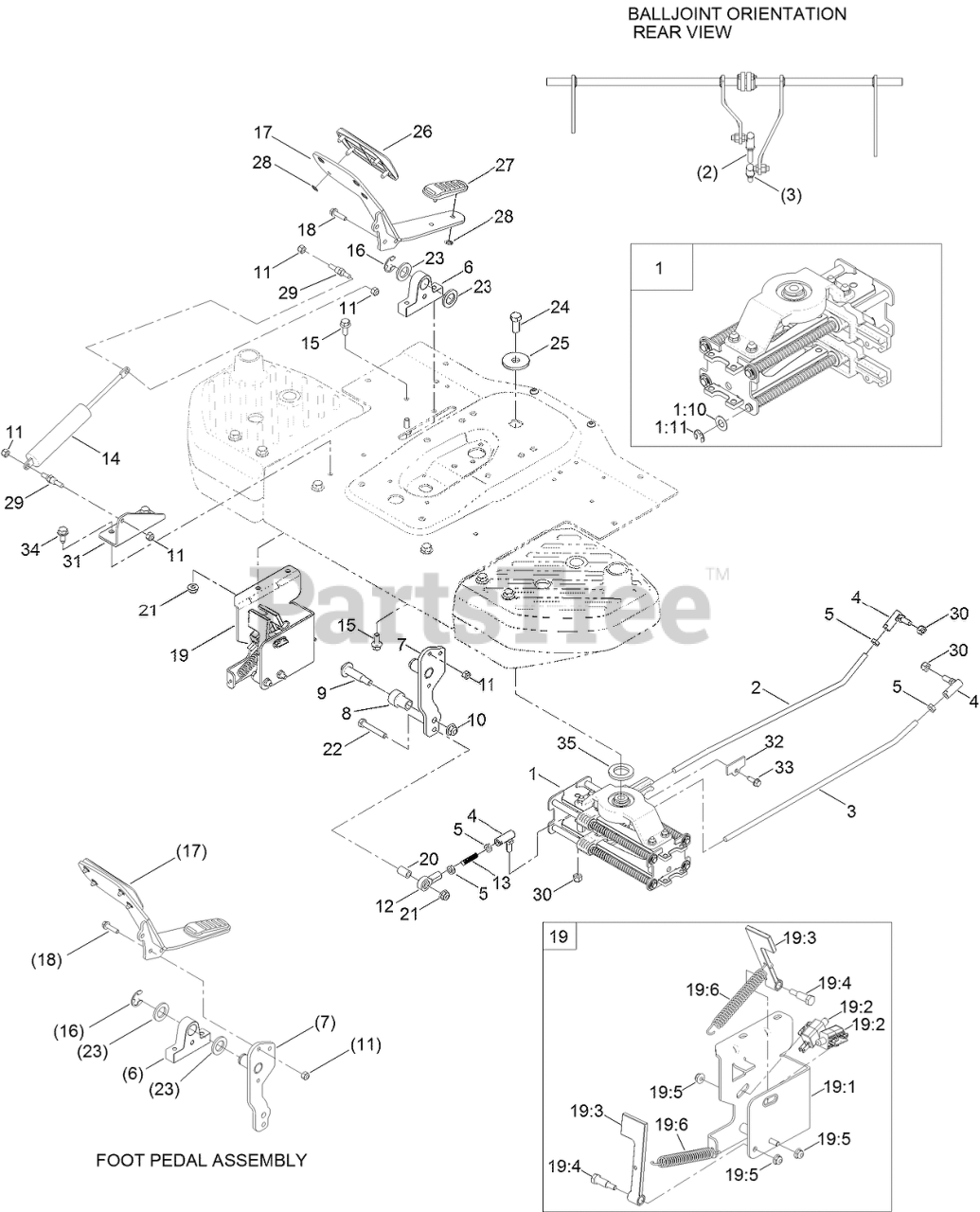

SPEED CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 131-0904

SPEED CONTROL ASM

$371.99

$

Usually ships in 3-6 days

0

1:10

Toro 131-8667

WASHER-THRUST

$1.49

$

In Stock, Qty 11

0

1:11

Toro 32120-18

E-RING

$1.49

$

In Stock, Qty 20+

0

2

Toro 127-0115

ROD-HYDRO, RH

$14.99

$

Usually ships in 3-6 days

0

3

Toro 127-0116

ROD-HYDRO, LH

$14.99

$

Usually ships in 3-6 days

0

4

Toro 2411-33

BALLJOINT-RH (W/GROMMET)

$26.99

$

Usually ships in 3-6 days

0

5

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

6

Toro 130-6887

MOUNT-PEDAL PIVOT

$14.99

$

Usually ships in 3-6 days

0

7

Toro 125-5517

PIVOT LEVER ASM

$44.99

$

Usually ships in 3-6 days

0

8

Toro 127-3397

ROLLER

$7.99

$

Usually ships in 3-6 days

0

9

Toro 56-6590

BOLT-WHEEL
(Superseded to 136-7198)

$1.99

$

In Stock, Qty 20+

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

12

Toro 1-543017

BALLJOINT-RH

$20.99

$

In Stock, Qty 13

0

13

Toro 130-6906

ROD-THREADED

$5.49

$

Usually ships in 3-6 days

0

14

Toro 131-0958

DAMPER-NON CAVITATING

$83.99

$

Usually ships in 3-6 days

0

15

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

16

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

17

Toro 125-3065-01

PEDAL-TRACTION

$53.99

$

Usually ships in 3-6 days

0

18

Toro 120-4654

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

19

Toro 131-0903

NEUTRAL RETURN ASM

$162.99

$

Usually ships in 3-6 days

0

19:1

Toro 132-0909-03

BRACKET-SWITCH

$30.99

$

Usually ships in 3-6 days

0

19:2

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 20+

0

19:3

Toro 130-0782

ARM-SWITCH

$8.99

$

Usually ships in 3-6 days

0

19:4

Toro 119-2309

BOLT-SHOULDER

$28.99

$

Usually ships in 3-6 days

0

19:5

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19:6

Toro 120-7027

SPRING-EXTENSION

$8.99

$

In Stock, Qty 20+

0

20

Toro 131-1034

SPACER

$2.99

$

Usually ships in 3-6 days

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 70-1160

WASHER

$3.99

$

Usually ships in 3-6 days

0

24

Toro 324-4

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

25

Toro 84-1560

WASHER-THRUST

$10.99

$

Usually ships in 3-6 days

0

26

Toro 98-9040

PAD-TOE, HYDRO PEDAL

$11.99

$

Usually ships in 3-6 days

0

27

Toro 98-9039

PAD-HEEL, HYDRO PEDAL

$11.99

$

Usually ships in 3-6 days

0

28

Toro 32112-6

NUT-PUSH

$6.49

$

In Stock, only 4 left!

0

29

Toro 110-6810

STUD-DAMPER
(Superseded to 138-7215)

$2.99

$

In Stock, Qty 12

0

30

Toro 3296-4

NUT-LOCK

$0.99

$

In Stock, Qty 9

0

31

Toro 130-6910-03

BRACKET-DAMPER

$7.99

$

Usually ships in 3-6 days

0

32

Toro 131-1041

COVER-END ROD

$2.99

$

Usually ships in 3-6 days

0

33

Toro 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 2 left!

0

34

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

35

Toro 131-8736

SPACER-BEARING

$30.99

$

Usually ships in 3-6 days

0
