74777 (MX 6050) - Toro 60" TimeCutter Zero-Turn Mower (SN: 404314200 - 999999999) Tire and Wheel Assembly Parts Diagram

60" TimeCutter Zero-Turn Mower

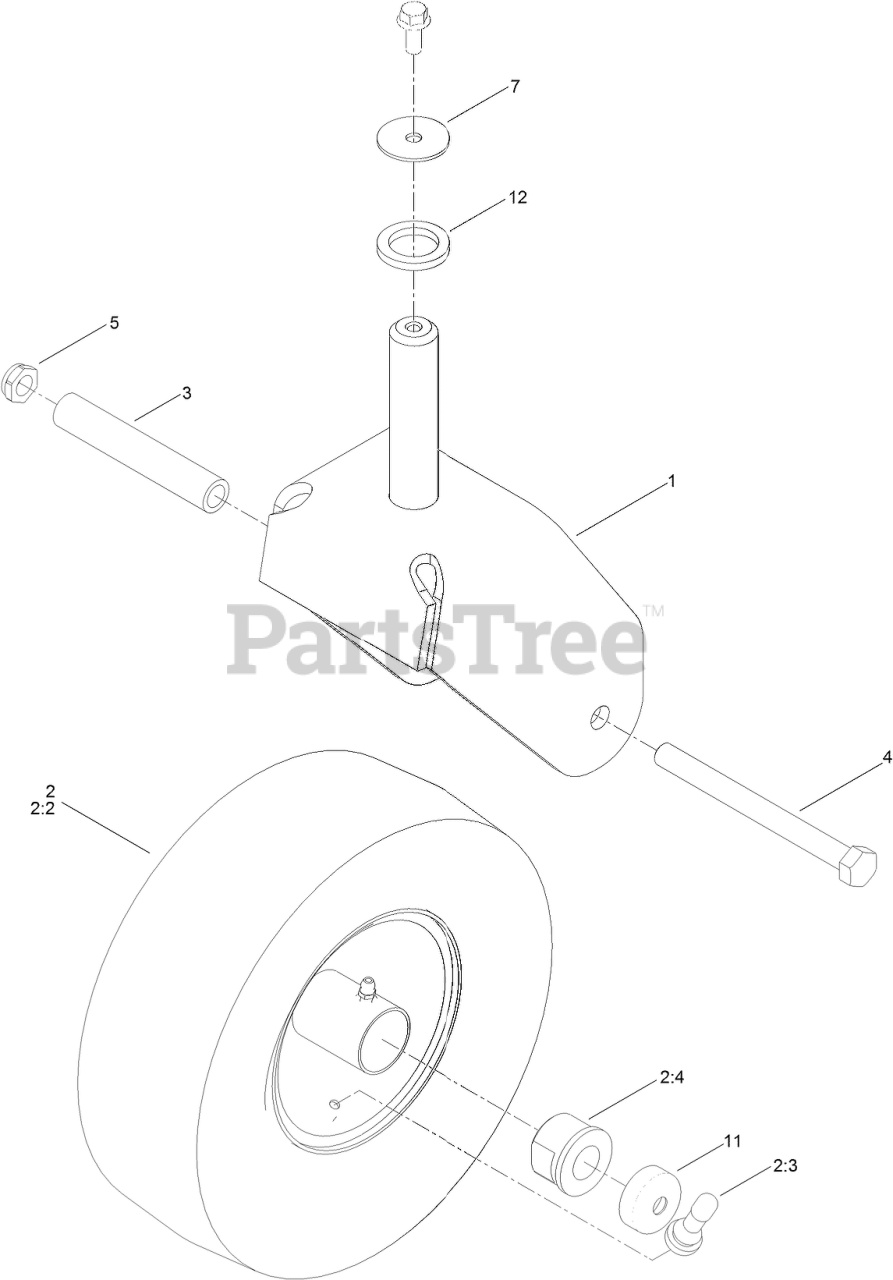

Tire and Wheel Assembly Parts Diagram

  • Title
1

Toro 133-4375-01

FORK ASM

$141.99

$

Usually ships in 3-6 days

0

2

Toro 133-4427

TIRE AND WHEEL ASM

$143.99

$

In Stock, only 1 left!

0

2:2

$102.99

$

Usually ships in 3-6 days

0

2:3

Toro 232-27

See Supercession: 5108
(Superseded to 5108)

$6.99

$

In Stock, Qty 14

0

2:4

Toro 136-4190

BEARING

$12.99

$

In Stock, only 3 left!

0

2:99

Toro 232-46

TUBE-INNER

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

3

Toro 133-4487

SPANNER-WHEEL

$13.99

$

In Stock, only 2 left!

0

4

Toro 126-5389

SCREW-HHF

$7.99

$

In Stock, only 2 left!

0

5

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

7

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

11

Toro 133-7088

GUARD-SEAL

$2.99

$

In Stock, only 2 left!

0

12

Toro 136-5590

WASHER

$1.49

$

In Stock, only 4 left!

0
