74777 (MX 6050) - Toro 60" TimeCutter Zero-Turn Mower (SN: 401400000 - 404314199) RH Transaxle Assembly No. 133-4419 Parts Diagram

60" TimeCutter Zero-Turn Mower

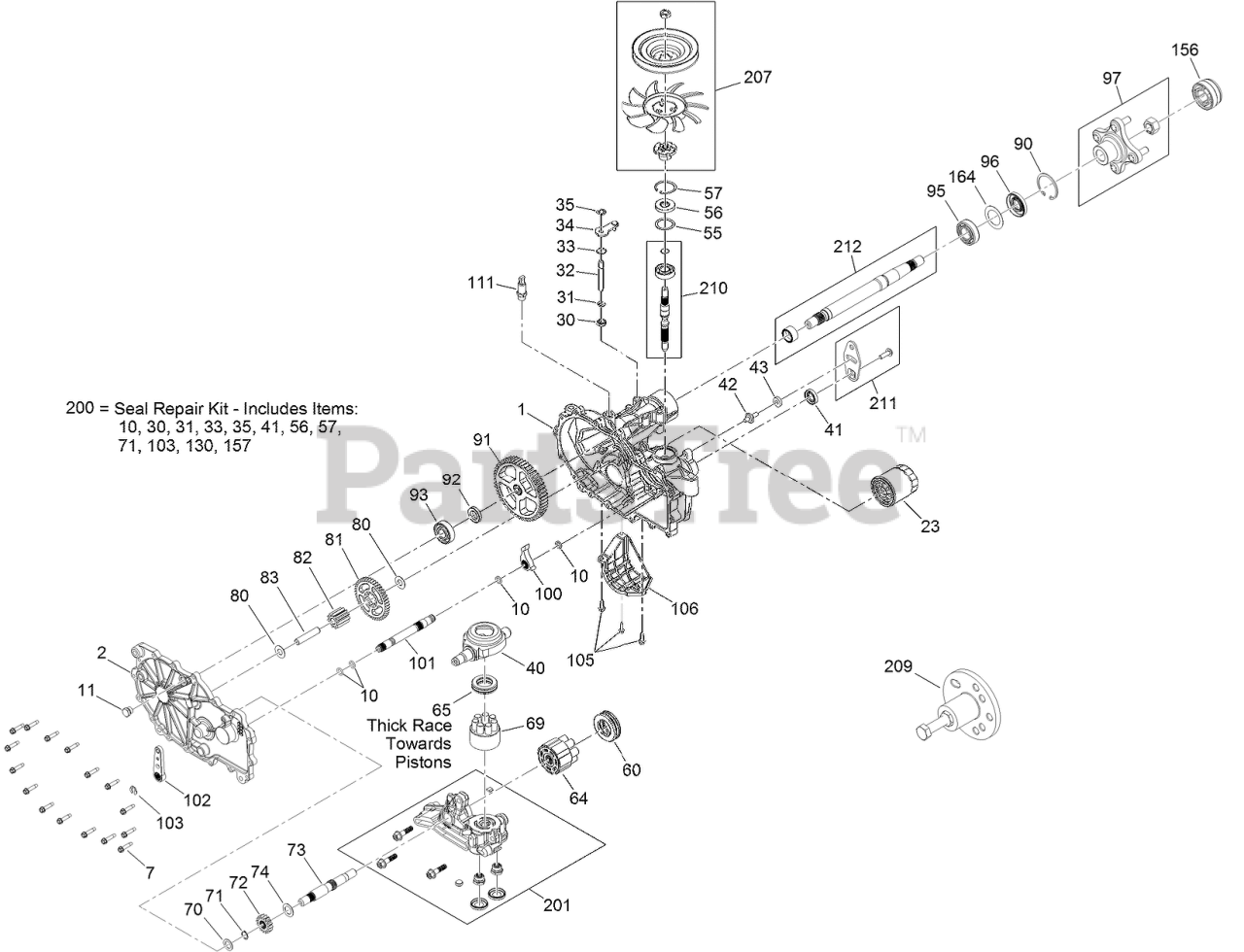

RH Transaxle Assembly No. 133-4419 Parts Diagram

  • Title
1

Toro 121-5748

MAIN HOUSING KIT

$461.99

$

Usually ships in 3-6 days

0

2

Toro 132-0938

LH SIDE COVER KIT

$

$

Not available

7

Toro 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

10

Toro 114-1678

O-RING

$5.99

$

Usually ships in 3-6 days

0

11

Toro 135-1140

See Supercession: 353-508
(Superseded to 353-508)

$8.49

$

In Stock, only 1 left!

0

23

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$31.99

$

In Stock, only 4 left!

0

30

Toro 106-8676

SEAL-LIP
(Superseded to 139-7497)

$6.99

$

Usually ships in 3-6 days

0

31

Toro 106-8677

RING-RETAINING, EXTERNAL

$8.99

$

In Stock, only 1 left!

0

32

Toro 114-1685

ROD-BYPASS

$35.99

$

Usually ships in 3-6 days

0

33

Toro 106-8679

RING-RETAINING, INTERNAL

$9.49

$

Usually ships in 3-6 days

0

34

Toro 107-2490

ARM-BYPASS

$58.99

$

Usually ships in 3-6 days

0

35

Toro 106-8681

RING-RETAINING, EXTERNAL

$8.99

$

Usually ships in 3-6 days

0

40

Toro 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

41

Toro 104-5313

SEAL-LIP

$25.99

$

In Stock, only 1 left!

0

42

$38.99

$

Usually ships in 3-6 days

0

43

Toro 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

55

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

56

Toro 104-5310

SEAL-LIP

$36.99

$

In Stock, only 1 left!

0

57

Toro 104-5309

RING-RETAINING

$12.99

$

In Stock, only 1 left!

0

60

Toro 112-4154

BEARING-THRUST

$103.99

$

Usually ships in 3-6 days

0

64

Toro 114-1689

MOTOR CYLINDER BLOCK KIT
(Superseded to 139-4074)

$248.99

$

Usually ships in 3-6 days

0

65

Toro 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

69

Toro 110-8561

PUMP BLOCK ASM

$347.99

$

Usually ships in 3-6 days

0

70

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

71

Toro 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

72

Toro 121-5749

GEAR-16T

$13.99

$

Usually ships in 3-6 days

0

73

Toro 114-1691

SHAFT-MOTOR

$169.99

$

Usually ships in 3-6 days

0

74

Toro 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

80

Toro 119-5541

WASHER
(Superseded to 94-1933)

$6.49

$

Usually ships in 3-6 days

0

81

Toro 125-0000

GEAR-43T

$62.99

$

Usually ships in 3-6 days

0

82

Toro 114-1693

GEAR-11T

$28.99

$

Usually ships in 3-6 days

0

83

Toro 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

90

Toro 104-2169

RING-RETAINING

$19.99

$

Usually ships in 3-6 days

0

91

Toro 114-1694

GEAR-54T

$139.99

$

In Stock, only 2 left!

0

92

Toro 120-7975

SPACER

$6.49

$

Usually ships in 3-6 days

0

93

Toro 137-2004

BEARING KIT
(Superseded to 135-1361)

$38.99

$

Usually ships in 3-6 days

0

95

Toro 109-8110

INPUT BEARING KIT
(Superseded to 104-2143)

$41.99

$

Usually ships in 3-6 days

0

96

Toro 130-8478

SEAL-LIP
(Superseded to 104-2144)

$49.99

$

In Stock, only 1 left!

0

97

Toro 109-5939

HUB KIT

$103.99

$

In Stock, only 3 left!

0

100

Toro 114-1697

PAWL-BRAKE

$17.99

$

Usually ships in 3-6 days

0

101

Toro 114-1698

SHAFT-BRAKE, INBOARD

$140.99

$

Usually ships in 3-6 days

0

102

Toro 125-0021

HANDLE-BRAKE

$14.99

$

In Stock, only 1 left!

0

103

Toro 131-0906

RING-RETAINING, EXT

$6.49

$

Usually ships in 3-6 days

0

105

$7.99

$

In Stock, only 1 left!

0

106

Toro 120-7979

GUARD-FILTER, LH

$34.99

$

In Stock, only 1 left!

0

111

Toro 109-3278

ADAPTER-STRAIGHT

$124.99

$

Usually ships in 3-6 days

0

156

Toro 115-5057

COVER-NUT, AXLE

$18.99

$

Usually ships in 3-6 days

0

164

Toro 121-5745

SPACER

$10.99

$

Usually ships in 3-6 days

0

200

Toro 109-3537

SEAL KIT
(Superseded to 140-8351)

$90.99

$

In Stock, Qty 6

0

201

Toro 125-0036

CENTER SECTION KIT

$352.99

$

Usually ships in 3-6 days

0

207

Toro 137-2006

FAN PULLEY KIT
(Superseded to 135-7343)

$90.99

$

In Stock, only 1 left!

0

209

Toro 114-8467

DISCONTINUED
(Superseded to 130-8482)

$383.99

$

Usually ships in 3-6 days

0

210

Toro 114-8468

INPUT SHAFT KIT

$173.99

$

Usually ships in 3-6 days

0

211

Toro 117-5362

CONTROL ARM KIT

$29.99

$

In Stock, only 1 left!

0

212

Toro 114-8470

AXLE SHAFT KIT

$265.99

$

Usually ships in 3-6 days

0
