74777 (MX 6050) - Toro 60" TimeCutter Zero-Turn Mower (SN: 401400000 - 404314199) Fuel System Assembly with Non-Canister Style Air Filter Parts Diagram

60" TimeCutter Zero-Turn Mower

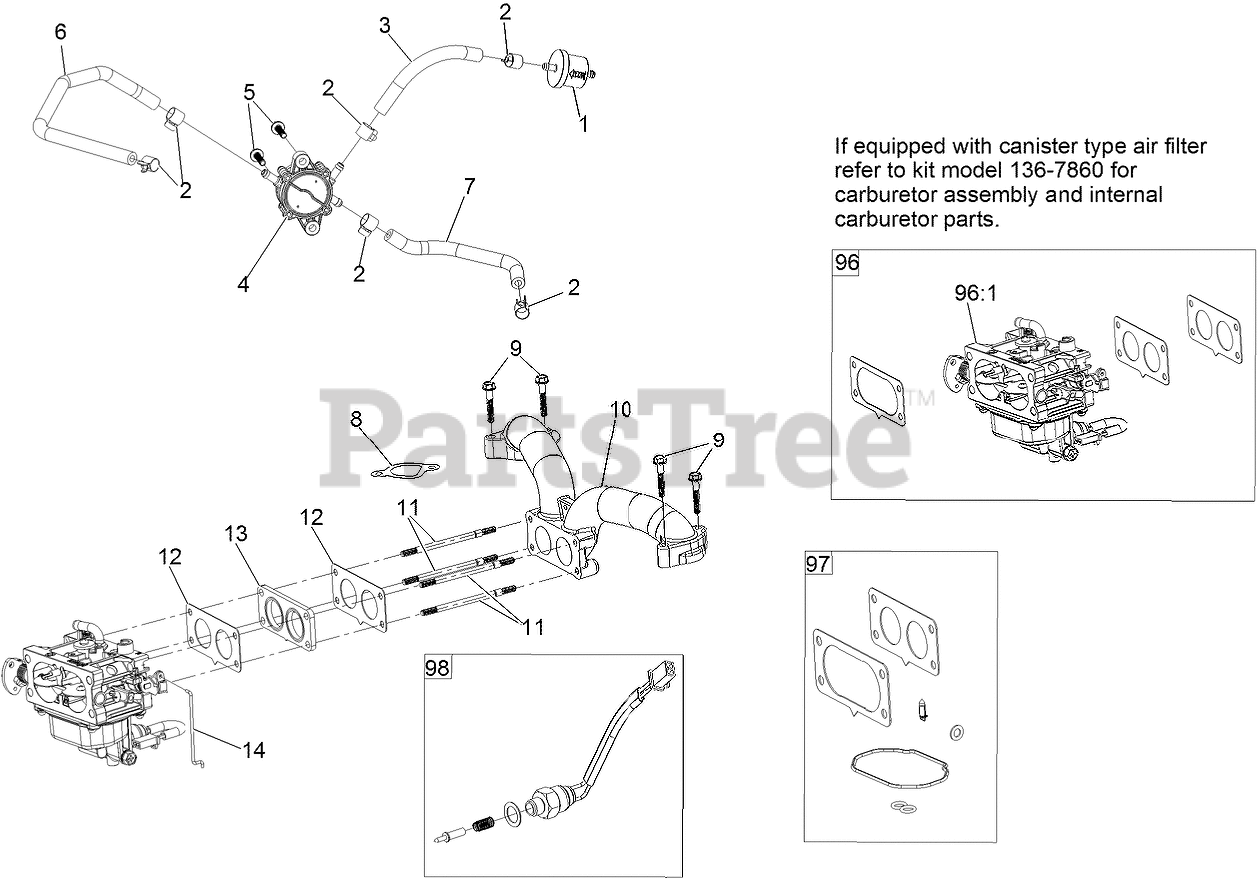

Fuel System Assembly with Non-Canister Style Air Filter Parts Diagram

  • Title

1

Toro 133-1563

FILTER-FUEL
(Superseded to 139-0717)

$12.99

$

In Stock, Qty 20+

0

2

Toro 120-4251

CLAMP-FUEL LINE
(Superseded to 139-0719)

$5.49

$

Usually ships in 3-6 days

0

3

Toro 120-4371

LINE-FUEL

$6.49

$

Usually ships in 3-6 days

0

4

Toro 127-9206

PUMP-FUEL
(Superseded to 139-0684)

$62.99

$

In Stock, Qty 6

0

5

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0

6

Toro 127-9205

HOSE-FUEL

$23.99

$

Usually ships in 3-6 days

0

7

Toro 127-9207

HOSE-FUEL

$21.99

$

In Stock, only 1 left!

0

8

Toro 127-9230

GASKET-INTAKE

$2.99

$

In Stock, Qty 11

0

9

Toro 120-4284

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

10

Toro 127-9244

MANIFOLD-INTAKE

$100.99

$

Usually ships in 3-6 days

0

11

Toro 127-9245

STUD

$5.49

$

Usually ships in 3-6 days

0

12

Toro 127-9246

GASKET-CARBURETOR

$5.49

$

In Stock, only 4 left!

0

13

Toro 127-9247

INSULATOR-CARBURETOR

$6.49

$

Usually ships in 3-6 days

0

14

Toro 127-9248

LINKAGE-THROTTLE

$5.49

$

Usually ships in 3-6 days

0

96

Toro 133-9808

CARBURETOR REPLACEMENT KIT

$329.99

$

In Stock, only 1 left!

0

96:1

CARBURETOR

Note: Not serviced separately

$

$

Not available

97

Toro 127-9290

CARBURETOR REPAIR KIT

$37.99

$

In Stock, Qty 10

0

98

Toro 127-9292

SOLENOID KIT

$45.99

$

In Stock, only 3 left!

0

99

Toro 133-9833

HIGH ALTITUDE KIT

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days
