74777 (MX 6050) - Toro 60" TimeCutter Zero-Turn Mower (SN: 401400000 - 404314199) Engine Assembly Parts Diagram

60" TimeCutter Zero-Turn Mower

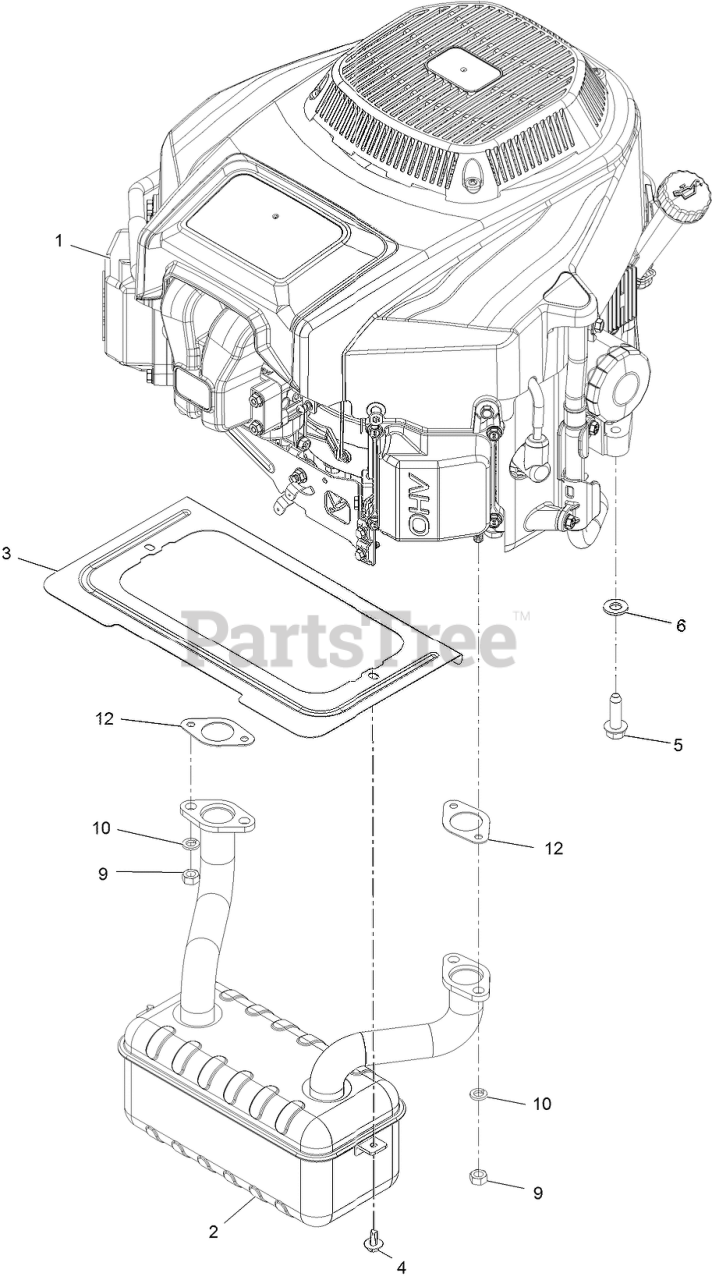

Engine Assembly Parts Diagram

  • Title
1

Toro 127-9451

See Supercession: 136-7818
(Superseded to 136-7818)

$2605.99

$

Usually ships in 3-6 days

0

2

Toro 130-6851

MUFFLER

$133.99

$

In Stock, only 1 left!

0

3

Toro 131-1071-03

SHIELD-HEAT

$20.99

$

In Stock, only 1 left!

0

4

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

5

Toro 32144-109

SCREW-THD

$4.99

$

In Stock, Qty 7

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

9

Toro 121-0199

NUT-HH

$1.49

$

Usually ships in 3-6 days

0

10

Toro 127-9279

WASHER-LOCK, SPLIT

$2.99

$

Usually ships in 3-6 days

0

12

Toro 120-4317

GASKET-EXHAUST

$5.49

$

In Stock, only 3 left!

0
