74777 (MX 6050) - Toro 60" TimeCutter Zero-Turn Mower (SN: 400000000 - 401399999) 60 INCH DECK ASSEMBLY Parts Diagram

60" TimeCutter Zero-Turn Mower

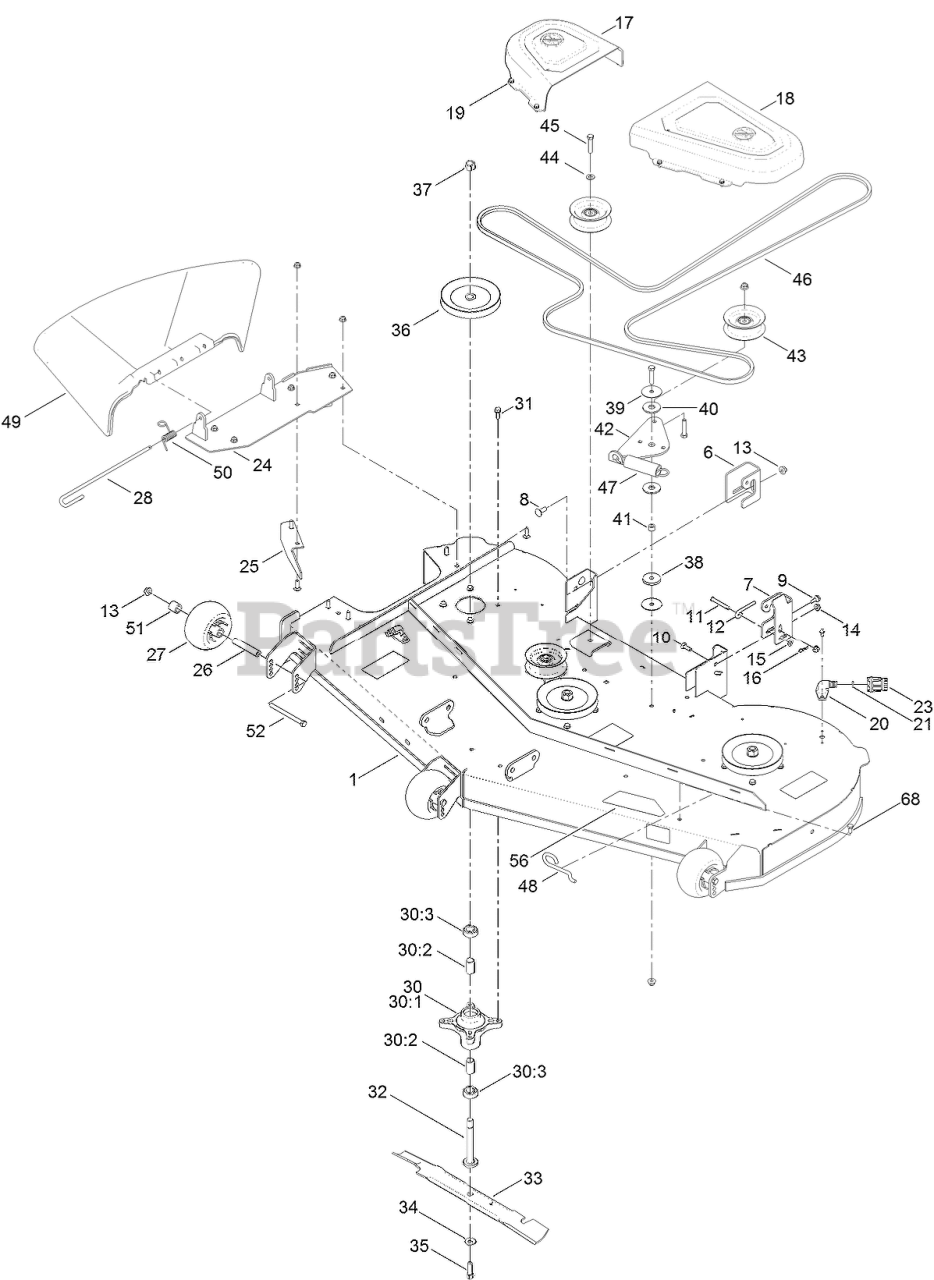

60 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 133-4461

60 INCH DECK AND DECAL ASM

$1287.99

$

Usually ships in 3-6 days

0

6

Toro 131-4138

BRACKET-HANGER, RH

$13.99

$

In Stock, Qty 8

0

7

Toro 131-3935

BRACKET-HANGER, LH

$14.99

$

In Stock, only 2 left!

0

8

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

9

Toro 120-7024

SCREW-SHOULDER, HHF

$2.99

$

In Stock, Qty 16

0

10

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

11

Toro 110-0618

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

12

Toro 131-0955

ROD-LEVEL, DECK

$7.99

$

In Stock, only 1 left!

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Toro 133-9283

COVER-BELT, RH

$19.99

$

In Stock, only 1 left!

0

18

Toro 133-9282

COVER-BELT, LH

$22.99

$

Usually ships in 3-6 days

0

19

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

21

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0

23

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

Usually ships in 3-6 days

0

24

Toro 130-0764

PIVOT-DEFLECTOR

$145.99

$

Usually ships in 3-6 days

0

25

Toro 119-3388-03

BAFFLE-CUTOFF

$26.99

$

Usually ships in 3-6 days

0

26

Toro 98-7912

TUBE-SPANNER

$13.99

$

In Stock, Qty 12

0

27

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

28

Toro 109-8854

PIN-CHUTE

$15.99

$

In Stock, only 1 left!

0

30

Toro 121-0751

SPINDLE ASM
(Superseded to 139-3214)

$78.99

$

Usually ships in 3-6 days

0

30:1

Toro 117-7267

SPINDLE
(Superseded to 139-3214)

$78.99

$

Usually ships in 3-6 days

0

30:2

Toro 120-7935

SPACER

$2.99

$

In Stock, Qty 9

0

30:3

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 17

0

31

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

32

Toro 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 15

0

33

Toro 115-9649-03

BLADE-HI FLOW, 20.5 INCH

$31.99

$

In Stock, Qty 20+

0

34

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

36

Toro 133-1199

PULLEY

$37.99

$

In Stock, Qty 20+

0

37

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

38

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

39

Toro 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

40

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 9

0

41

Toro 115-4986

SPACER

$2.99

$

In Stock, only 4 left!

0

42

Toro 114-8540

ARM-IDLER

$21.99

$

Usually ships in 3-6 days

0

43

Toro 132-9420

PULLEY-IDLER, FLAT

$34.99

$

In Stock, Qty 20+

0

44

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

45

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Toro 109-3661

BELT
(Superseded to 109-3661-SL)

$91.99

$

Usually ships in 3-6 days

0

47

Toro 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, only 2 left!

0

48

Toro 112-3973

HOOK-RETURN, SPRING
(Superseded to 138-7266)

$5.49

$

In Stock, only 1 left!

0

49

Toro 133-1212

DEFLECTOR-DISCHARGE

$79.99

$

In Stock, only 4 left!

0

50

Toro 121-2983

SPRING-TORSION
(Superseded to 138-7232)

$2.99

$

In Stock, only 2 left!

0

51

Toro 104-0892

SPACER-AXLE, REAR

$5.49

$

Usually ships in 3-6 days

0

52

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

0

56

Toro 117-5303

DECAL

$18.99

$

Usually ships in 3-6 days

0

68

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0
