74776 (MX 5025) - Toro 50" TimeCutter Zero-Turn Mower (SN: 404315000 - 999999999) 50 Inch Deck Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

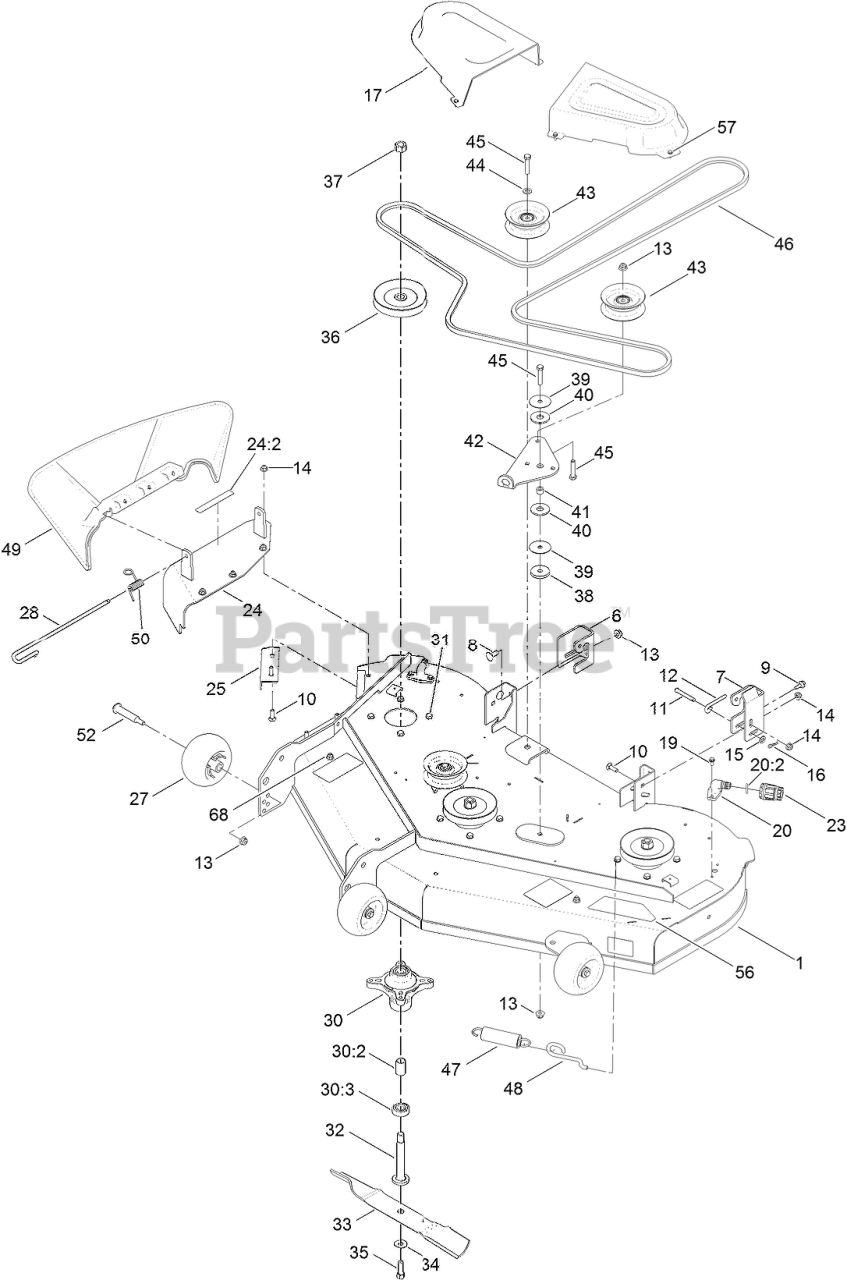

50 Inch Deck Assembly Parts Diagram

  • Title
1

Toro 131-3614

DECK AND DECAL ASM

$1703.99

$

Usually ships in 3-6 days

0

6

Toro 131-4138

BRACKET-HANGER, RH

$13.99

$

In Stock, only 2 left!

0

7

Toro 131-3935

BRACKET-HANGER, LH

$14.99

$

In Stock, only 2 left!

0

8

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

9

Toro 120-7024

SCREW-SHOULDER,HWH

$2.99

$

In Stock, Qty 18

0

10

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

11

Toro 110-0618

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

12

Toro 131-0955

ROD-LEVEL, DECK

$7.99

$

In Stock, only 1 left!

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Toro 108-7890

COVER-BELT

$21.99

$

In Stock, only 2 left!

0

19

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Toro 133-9289

FITTING-WASHOUT

$6.49

$

In Stock, Qty 5

0

20:2

Toro 133-9290

O-RING

$1.49

$

In Stock, Qty 20+

0

23

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

24

Toro 131-3962

COVER ASM W/DECAL

$117.99

$

Usually ships in 3-6 days

0

24:2

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, only 1 left!

0

25

Toro 120-7951-03

BAFFLE-CUTOFF

$26.99

$

In Stock, only 2 left!

0

27

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

28

Toro 109-8854

PIN-CHUTE

$15.99

$

In Stock, only 1 left!

0

30

Toro 121-0751

SPINDLE ASM
(Superseded to 139-3214)

$78.99

$

Usually ships in 3-6 days

0

30:2

Toro 120-7935

SPACER

$2.99

$

In Stock, Qty 9

0

30:3

Toro 136-5441

BEARING-BALL

$7.99

$

In Stock, Qty 6

0

31

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

32

Toro 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 16

0

33

Toro 115-5059-03

BLADE-HI LIFT
(Superseded to 142-6453-S)

$25.99

$

In Stock, Qty 20+

0

34

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

36

Toro 125-5575

PULLEY

$62.99

$

In Stock, Qty 20+

0

37

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

38

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

39

Toro 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

40

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

41

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 5

0

42

Toro 114-8540

ARM-IDLER

$21.99

$

In Stock, only 1 left!

0

43

Toro 132-9420

PULLEY-IDLER, FLAT

$34.99

$

In Stock, Qty 20+

0

44

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

45

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Toro 119-8820

V-BELT
(Superseded to 119-8820-SL)

$62.99

$

Usually ships in 3-6 days

0

47

Toro 1-603414

SPRING-EXTENSION

$21.99

$

In Stock, only 2 left!

0

48

Toro 138-7266

HOOK-RETURN SPRING

$5.49

$

In Stock, only 1 left!

0

49

Toro 121-0739

DEFLECTOR-DISCHARGE

$64.99

$

In Stock, Qty 6

0

50

Toro 121-2983

SPRING-TORSION
(Superseded to 138-7232)

$2.99

$

In Stock, only 2 left!

0

52

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

56

Toro 139-3208

DECAL - DECK

$5.99

$

In Stock, only 1 left!

0

57

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

68

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0
