74776 (MX 5025) - Toro 50" TimeCutter Zero-Turn Mower (SN: 401070524 - 401999999) ENGINE AND MUFFLER ASSEMBLY Parts Diagram
50" TimeCutter Zero-Turn Mower

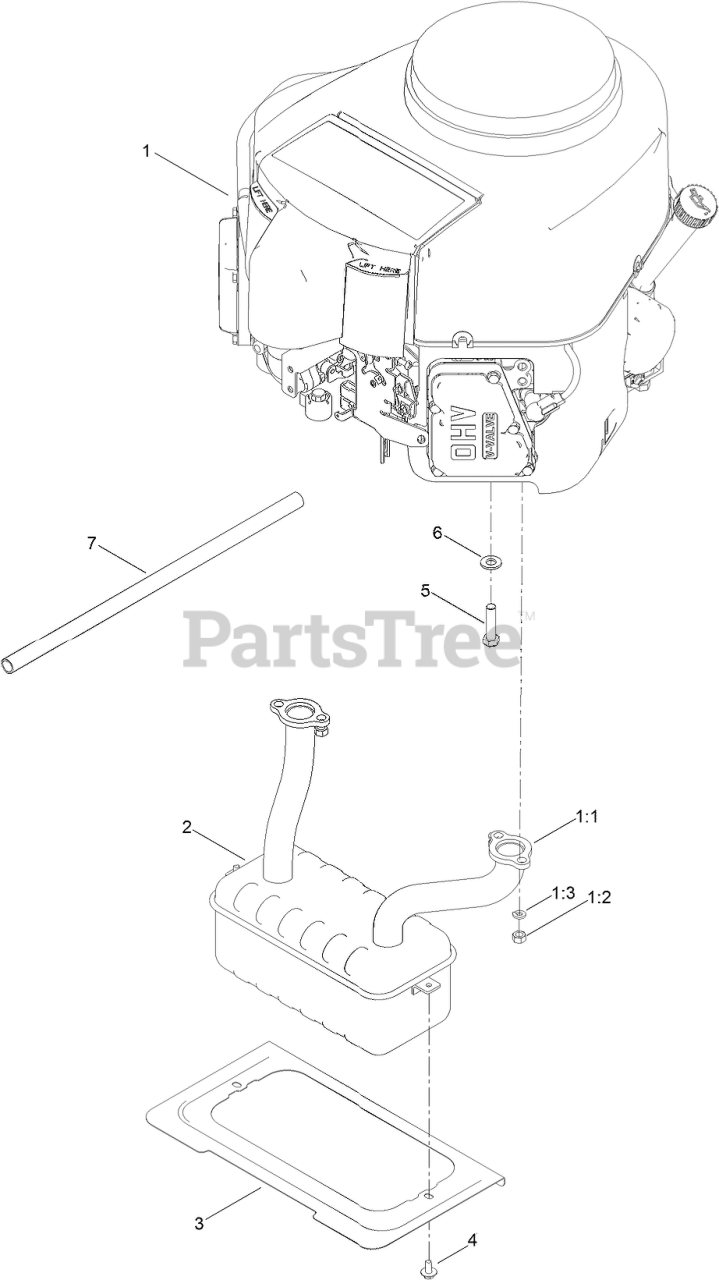

ENGINE AND MUFFLER ASSEMBLY Parts Diagram
1
ENGINE-KAWASAKI, FR691V-_S07-R
Note: Not serviced separately
$
$
Not available
1
ENGINE-KAWASAKI, FR691V-_S07-R
Note: Obtain parts from www.kawpowerepc.com
$
$
Not available
Toro 1-653313
GASKET-EXHAUST
$4.99
$
Usually ships in 3-6 days
Toro 114-3549
NUT
$1.99
$
In Stock, Qty 20+
Toro 114-3550
WASHER-LOCK
$1.49
$
In Stock, Qty 6
Toro 130-0673
MUFFLER
$134.99
$
Usually ships in 3-6 days
Toro 131-1071-03
SHIELD-HEAT
$20.99
$
In Stock, only 1 left!
Toro 46-8560
SCREW-HHFTF
$1.99
$
In Stock, only 4 left!
Toro 323-50
BOLT-HH
$1.49
$
In Stock, Qty 17
Toro 3256-24
WASHER-FLAT
$0.99
$
In Stock, Qty 10
Toro 106-7022
TUBE-DRAIN, OIL
$9.49
$
Usually ships in 3-6 days
