74776 (MX 5025) - Toro 50" TimeCutter Zero-Turn Mower (SN: 401070524 - 401999999) CASTER, WHEEL AND TIRE ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

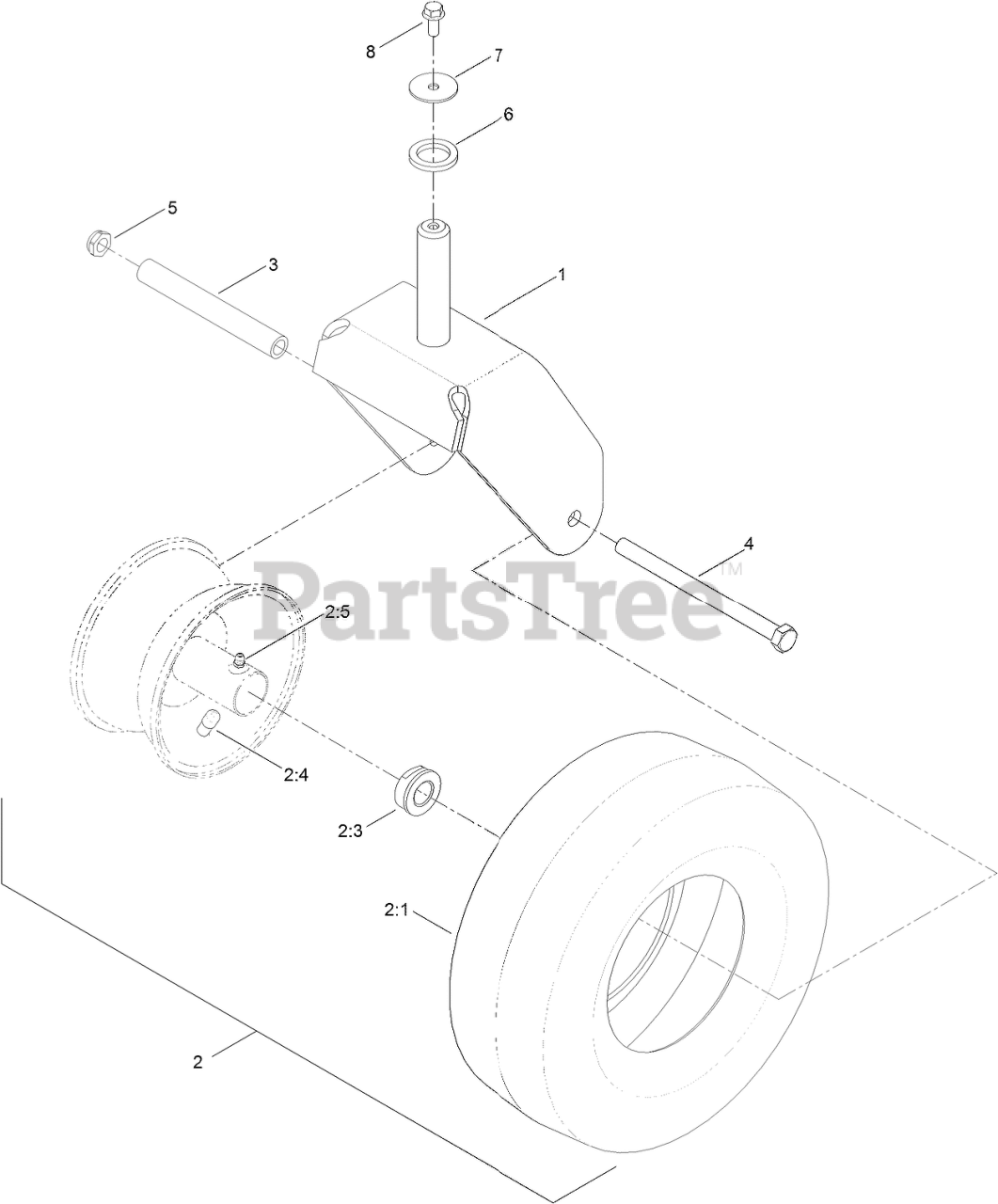

CASTER, WHEEL AND TIRE ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3349-01

FORK-CASTER

$166.99

$

In Stock, only 4 left!

0

2

Toro 119-3473

13 INCH WHEEL AND TIRE ASM

$117.99

$

In Stock, Qty 11

0

2:1

Toro 119-3471

TIRE-13 Inch

$84.99

$

In Stock, only 2 left!

0

2:3

Toro 114-1640

BUSHING-FLANGE

$12.99

$

In Stock, Qty 20+

0

2:4

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 12

0

2:5

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

2:99

Toro 232-46

TUBE-INNER

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

3

Toro 119-3475

SPANNER

$11.99

$

In Stock, Qty 20+

0

4

Toro 325-37

SCREW-HH

$6.99

$

In Stock, Qty 20+

0

5

Toro 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

6

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 20+

0

7

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, Qty 20+

0

8

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0
