74776 (MX 5025) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400000000 - 401070523) RH TRANSAXLE ASSEMBLY NO. 131-3641 Parts Diagram

50" TimeCutter Zero-Turn Mower

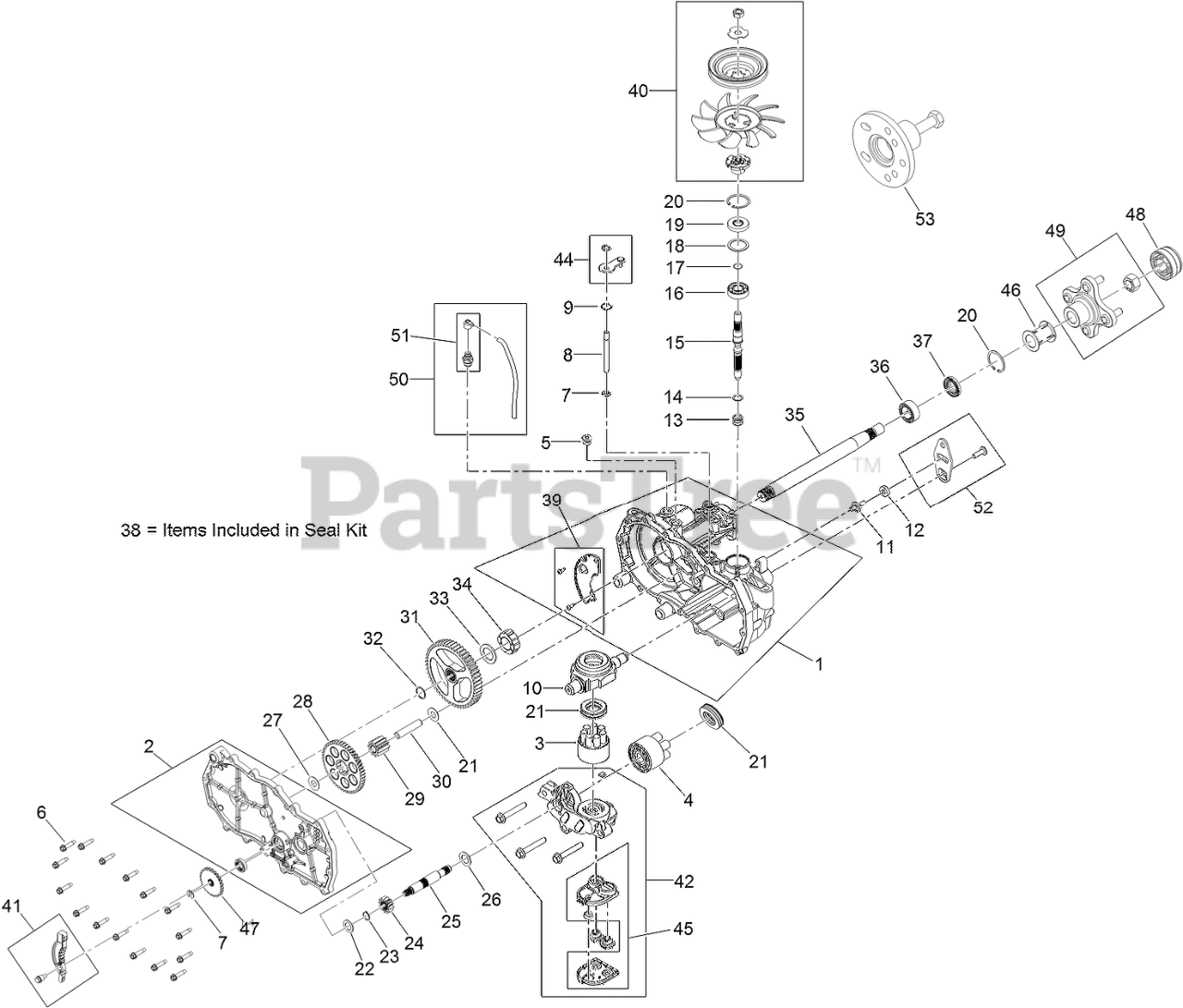

RH TRANSAXLE ASSEMBLY NO. 131-3641 Parts Diagram

  • Title

1

Toro 106-8674

MAIN HOUSING ASM

$858.99

$

Usually ships in 3-6 days

0

2

Toro 106-8675

SIDE ASM

$678.99

$

Usually ships in 3-6 days

0

3

Toro 110-8561

PUMP BLOCK ASM

$383.99

$

Usually ships in 3-6 days

0

4

Toro 103-2666

CYLINDER BLOCK KIT

$546.99

$

Usually ships in 3-6 days

0

5

Toro 104-2189

PLUG-THREAD, STRAIGHT

$26.99

$

In Stock, only 2 left!

0

6

Toro 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

7

Toro 106-8677

RING-RETAINING, EXTERNAL

$8.99

$

In Stock, only 1 left!

0

8

Toro 106-8678

ROD-BYPASS

$55.99

$

Usually ships in 3-6 days

0

9

Toro 106-8679

RING-RETAINING, INTERNAL

$9.49

$

Usually ships in 3-6 days

0

10

Toro 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

11

Toro 104-2116

STUD

$38.99

$

Usually ships in 3-6 days

0

12

Toro 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

13

Toro 94-1936

SPRING-BLOCK

$8.49

$

Usually ships in 3-6 days

0

14

Toro 94-1937

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

15

Toro 104-5306

SHAFT-INPUT

$370.99

$

Usually ships in 3-6 days

0

16

Toro 104-5311

BEARING-BALL

$44.99

$

In Stock, Qty 5

0

17

Toro 104-5307

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

18

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

19

Toro 104-5310

SEAL-LIP

$36.99

$

In Stock, only 1 left!

0

20

Toro 104-5309

RING-RETAINING

$12.99

$

In Stock, only 2 left!

0

21

Toro 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

22

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

23

Toro 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

24

Toro 132-0912

GEAR-12T

$

$

Currently unavailable

25

Toro 106-8683

SHAFT-MOTOR

$286.99

$

Usually ships in 3-6 days

0

26

Toro 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

27

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

28

Toro 132-0911

GEAR-49T

$63.99

$

Usually ships in 3-6 days

0

29

Toro 104-5318

GEAR-JACKSHAFT, 10T

$87.99

$

Usually ships in 3-6 days

0

30

Toro 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

31

Toro 112-9854

RING-SPIRAL, RETAINING

$5.49

$

Usually ships in 3-6 days

0

32

Toro 112-9855

GEAR-52T, BULL

$168.99

$

Usually ships in 3-6 days

0

33

Toro 112-9856

WASHER

$8.99

$

Usually ships in 3-6 days

0

34

Toro 112-9857

BEARING-SLEEVE

$19.99

$

In Stock, only 1 left!

0

35

Toro 120-7104

SHAFT-AXLE

$183.99

$

Usually ships in 3-6 days

0

36

Toro 112-9859

BUSHING-AXLE

$15.99

$

Usually ships in 3-6 days

0

37

Toro 112-9860

SEAL-LIP

$21.99

$

Usually ships in 3-6 days

0

38

Toro 106-8686

SEAL KIT

$195.99

$

Usually ships in 3-6 days

0

39

Toro 106-8687

EXPANSION PLATE KIT

$71.99

$

Usually ships in 3-6 days

0

40

Toro 121-5746

FAN PULLEY KIT
(Superseded to 135-7349)

$99.99

$

In Stock, only 1 left!

0

41

Toro 106-8688

BRAKE ARM KIT

$41.99

$

In Stock, Qty 20+

0

42

Toro 112-9862

CENTER SECTION FILTER KIT

$581.99

$

Usually ships in 3-6 days

0

44

Toro 107-2489

BYPASS ARM KIT

$83.99

$

Usually ships in 3-6 days

0

45

Toro 114-1634

FILTER KIT

$46.99

$

Usually ships in 3-6 days

0

46

Toro 120-7109

TUBE-AXLE

$13.99

$

Usually ships in 3-6 days

0

47

Toro 106-8694

DISC-BRAKE, COG

$60.99

$

In Stock, Qty 5

0

48

Toro 115-5057

COVER-NUT, AXLE

$18.99

$

Usually ships in 3-6 days

0

49

Toro 109-5939

HUB KIT

$109.99

$

In Stock, only 2 left!

0

50

Toro 112-9866

BREATHER KIT

$52.99

$

In Stock, only 2 left!

0

51

Toro 114-1635

BREATHER ASM

$46.99

$

In Stock, only 2 left!

0

52

Toro 117-5362

CONTROL ARM KIT

$29.99

$

In Stock, only 1 left!

0

53

Toro 114-8467

PULLER-HUB, 4 BOLT
(Superseded to 130-8482)

$422.99

$

Usually ships in 3-6 days

0
