74770 (MX 5050) - Toro 50" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) SEAT ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

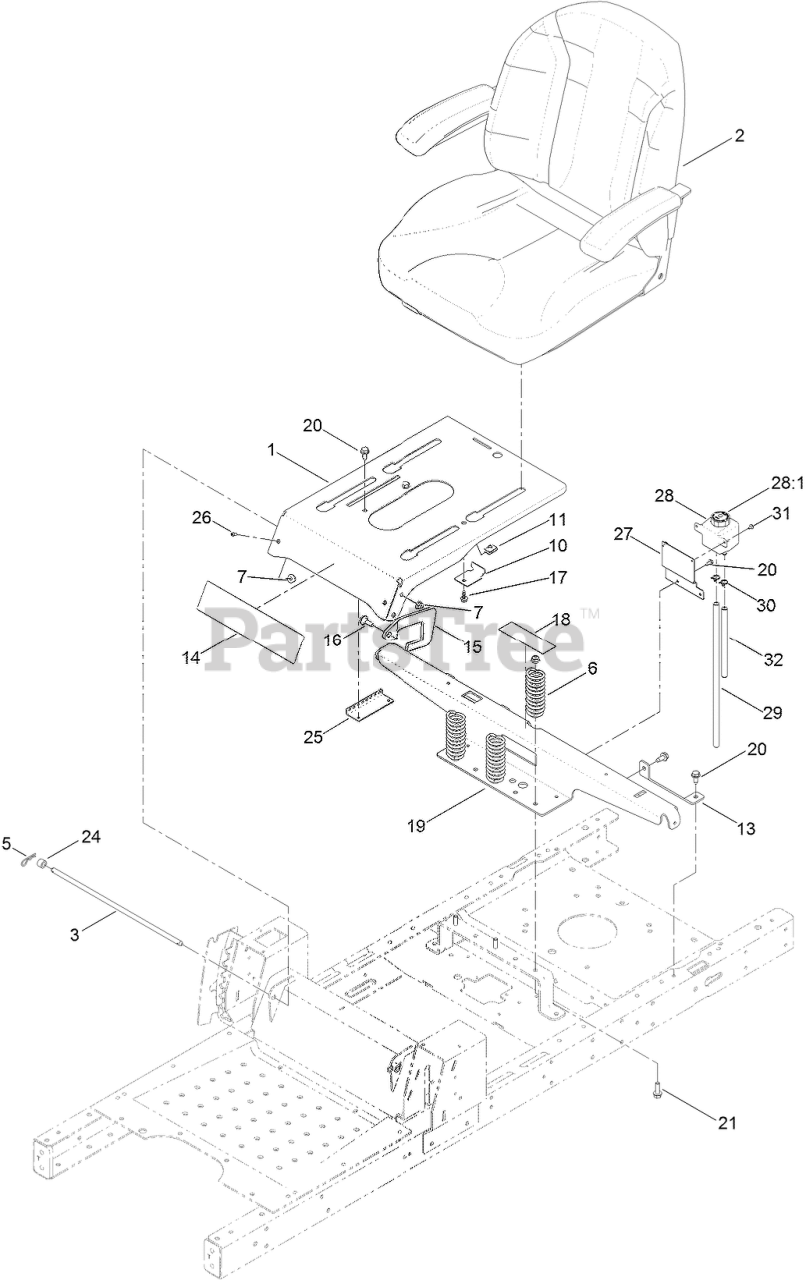

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 130-7035-03

PAN-SEAT
(Superseded to 136-5571-03)

$63.99

$

Usually ships in 3-6 days

0

2

Toro 131-4147

SEAT ASM

$631.99

$

Usually ships in 3-6 days

0

3

Toro 115-4966

ROD-STOP

$19.99

$

Usually ships in 3-6 days

0

5

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

6

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

10

Toro 131-1038

BRACKET-STOP, SEAT
(Superseded to 138-7214)

$2.99

$

Usually ships in 3-6 days

0

11

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

13

Toro 119-3431-03

SUPPORT-TANK, REAR

$6.49

$

Usually ships in 3-6 days

0

14

Toro 131-3655

DECAL-TIMECUTTER

$7.49

$

Usually ships in 3-6 days

0

15

Toro 131-3994

PLATE-STOP

$14.99

$

Usually ships in 3-6 days

0

16

Toro 116-2670

SCREW-SHOULDER

$7.99

$

In Stock, Qty 5

0

17

Toro 99-6810

SCREW-HHF

$3.49

$

In Stock, only 1 left!

0

18

Toro 106-8717

DECAL-SERVICE, CE

$7.99

$

Usually ships in 3-6 days

0

19

Toro 131-1039-03

SUPPORT-POD, WIDE

$124.99

$

Usually ships in 3-6 days

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

24

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

25

Toro 131-4008-03

BRACKET-LATCH, SEAT

$6.49

$

Usually ships in 3-6 days

0

26

Toro 131-4080

SCREW-HSBH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 120-7970-03

MOUNT-TANK

$26.99

$

Usually ships in 3-6 days

0

28

Toro 109-2250

VENT-TANK, HYD

$66.99

$

In Stock, Qty 8

0

28:1

Toro 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 1 left!

0

29

Toro 121-2951

HOSE-OVERFLOW

$9.49

$

Usually ships in 3-6 days

0

30

Toro 117-1193

CLAMP-HOSE

$1.49

$

In Stock, Qty 11

0

31

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

32

Toro 121-2952

HOSE-OVERFLOW

$5.49

$

Usually ships in 3-6 days

0
