74770 (MX 5050) - Toro 50" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) RH TRANSAXLE ASSEMBLY NO. 130-6961 Parts Diagram

50" TimeCutter Zero-Turn Mower

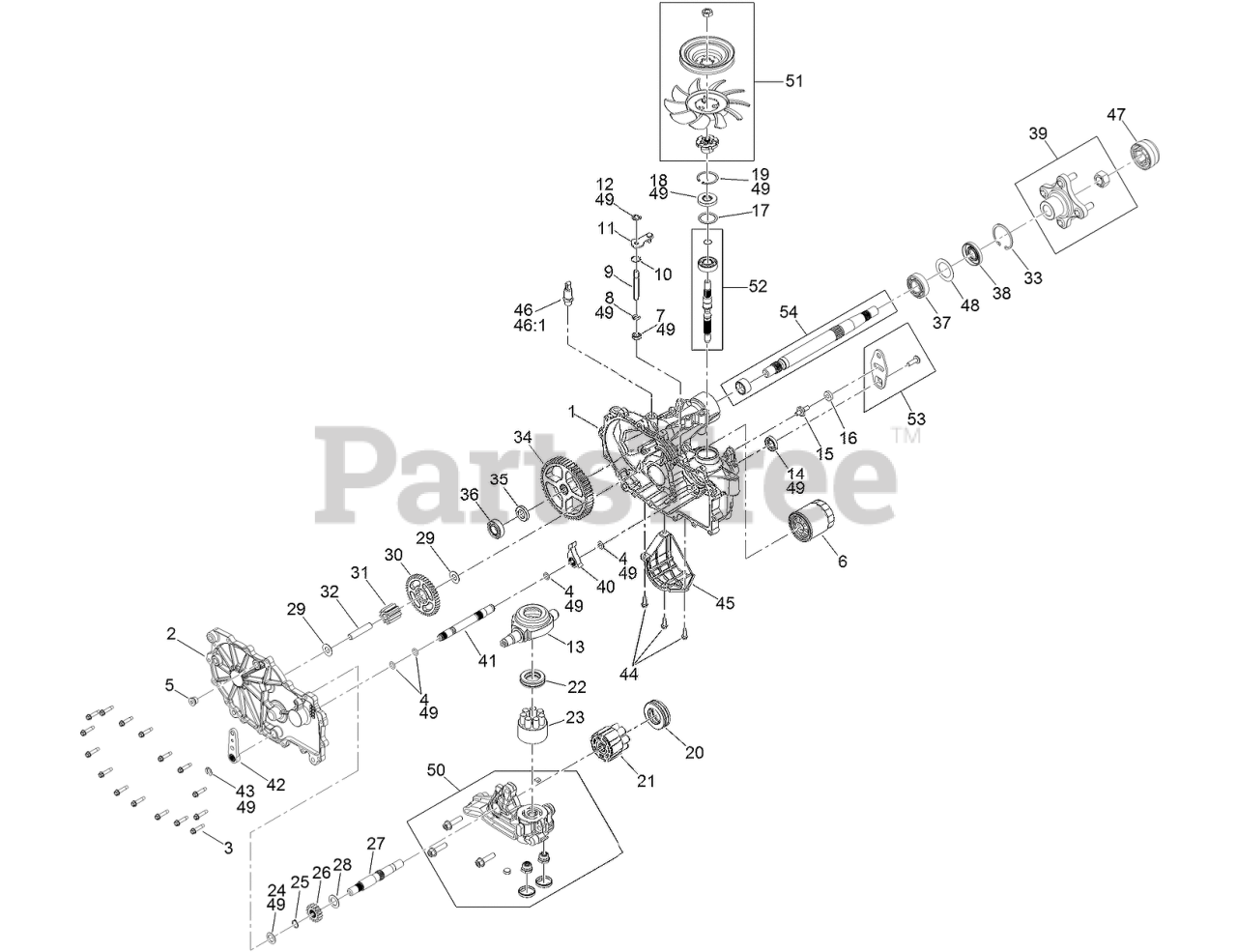

RH TRANSAXLE ASSEMBLY NO. 130-6961 Parts Diagram

  • Title
1

Toro 121-5748

MAIN HOUSING KIT

$461.99

$

Usually ships in 3-6 days

0

2

Toro 132-0938

LH SIDE COVER KIT

$

$

Not available

3

Toro 117-5359

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

4

Toro 114-1678

O-RING

$5.99

$

Usually ships in 3-6 days

0

5

Toro 104-2189

PLUG-THREAD, STRAIGHT

$26.99

$

In Stock, only 2 left!

0

6

Toro 109-3321

ELEMENT-OIL FILTER, HYD

$28.99

$

In Stock, Qty 20+

0

7

Toro 106-8676

SEAL-LIP
(Superseded to 139-7497)

$7.49

$

Usually ships in 3-6 days

0

8

Toro 106-8677

RING-RETAINING, EXTERNAL

$8.99

$

In Stock, only 1 left!

0

9

Toro 114-1685

ROD-BYPASS

$35.99

$

Usually ships in 3-6 days

0

10

Toro 106-8679

RING-RETAINING, INTERNAL

$9.49

$

Usually ships in 3-6 days

0

11

Toro 107-2490

ARM-BYPASS

$58.99

$

Usually ships in 3-6 days

0

12

Toro 106-8681

RING-RETAINING, EXTERNAL

$8.99

$

Usually ships in 3-6 days

0

13

Toro 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

14

Toro 104-5313

SEAL-LIP

$25.99

$

In Stock, only 1 left!

0

15

$38.99

$

Usually ships in 3-6 days

0

16

Toro 112-9853

PUCK-FRICTION

$7.99

$

In Stock, only 2 left!

0

17

Toro 104-5308

SPACER

$9.49

$

Usually ships in 3-6 days

0

18

Toro 104-5310

SEAL-LIP

$36.99

$

In Stock, only 1 left!

0

19

Toro 104-5309

RING-RETAINING

$12.99

$

In Stock, only 2 left!

0

20

Toro 112-4154

BEARING-THRUST

$103.99

$

Usually ships in 3-6 days

0

21

Toro 114-1689

MOTOR CYLINDER BLOCK KIT
(Superseded to 139-4074)

$274.99

$

Usually ships in 3-6 days

0

22

Toro 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

23

Toro 110-8561

PUMP BLOCK ASM

$383.99

$

Usually ships in 3-6 days

0

24

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

25

Toro 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

26

Toro 121-5749

GEAR-16T

$13.99

$

Usually ships in 3-6 days

0

27

Toro 114-1691

SHAFT-MOTOR

$178.99

$

Usually ships in 3-6 days

0

28

Toro 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

29

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

30

Toro 125-0000

GEAR-43T

$62.99

$

Usually ships in 3-6 days

0

31

Toro 114-1693

GEAR-11T

$30.99

$

Usually ships in 3-6 days

0

32

Toro 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

33

Toro 104-2169

RING-RETAINING

$19.99

$

Usually ships in 3-6 days

0

34

Toro 114-1694

GEAR-54T

$147.99

$

In Stock, only 2 left!

0

35

Toro 120-7975

SPACER

$6.49

$

Usually ships in 3-6 days

0

36

Toro 126-0789

BEARING-BALL

$15.99

$

Usually ships in 3-6 days

0

37

Toro 120-7976

BEARING-BALL
(Superseded to 130-8477)

$25.99

$

Usually ships in 3-6 days

0

38

$49.99

$

In Stock, only 1 left!

0

39

Toro 109-5939

HUB KIT

$109.99

$

In Stock, only 2 left!

0

40

Toro 114-1697

PAWL-BRAKE

$17.99

$

Usually ships in 3-6 days

0

41

Toro 114-1698

SHAFT-BRAKE, INBOARD

$147.99

$

Usually ships in 3-6 days

0

42

Toro 125-0021

HANDLE-BRAKE

$15.99

$

In Stock, only 1 left!

0

43

Toro 131-0906

RING-RETAINING, EXT

$6.49

$

Usually ships in 3-6 days

0

44

$7.99

$

In Stock, only 1 left!

0

45

Toro 120-7979

GUARD-FILTER, LH

$37.99

$

In Stock, only 1 left!

0

46

Toro 109-3278

ADAPTER-STRAIGHT

$131.99

$

Usually ships in 3-6 days

0

46:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

47

Toro 115-5057

COVER-NUT, AXLE

$18.99

$

Usually ships in 3-6 days

0

48

Toro 121-5745

SPACER

$10.99

$

Usually ships in 3-6 days

0

49

Toro 109-3537

SEAL KIT
(Superseded to 140-8351)

$94.99

$

In Stock, Qty 6

0

50

Toro 125-0036

CENTER SECTION KIT

$388.99

$

Usually ships in 3-6 days

0

51

Toro 121-5746

FAN PULLEY KIT
(Superseded to 135-7349)

$99.99

$

In Stock, only 1 left!

0

52

Toro 114-8468

INPUT SHAFT KIT

$182.99

$

Usually ships in 3-6 days

0

53

Toro 117-5362

CONTROL ARM KIT

$29.99

$

In Stock, only 1 left!

0

54

Toro 114-8470

AXLE SHAFT KIT

$278.99

$

Usually ships in 3-6 days

0
