74770 (MX 5050) - Toro 50" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

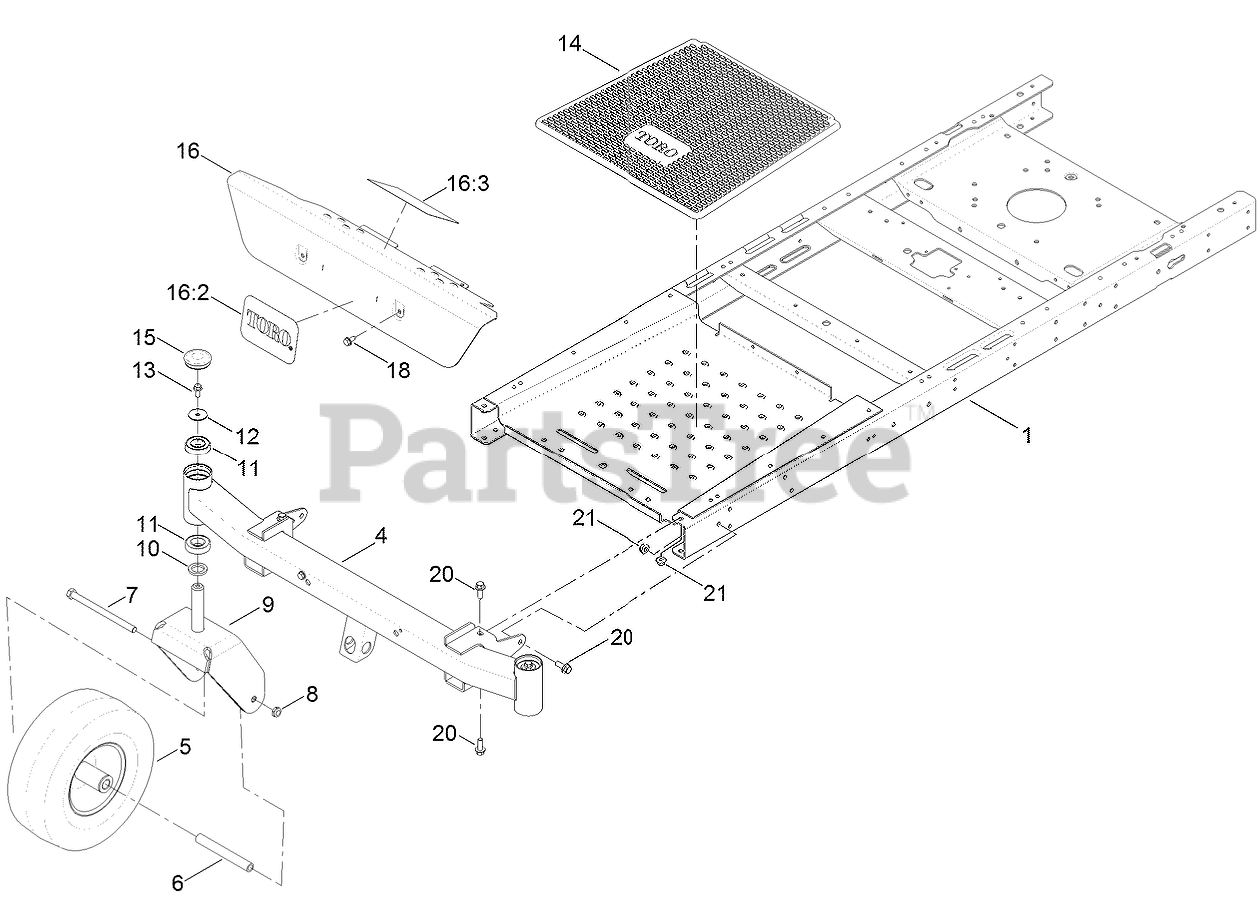

FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 130-0699-01

FRAME ASM

$512.99

$

Usually ships in 3-6 days

0

4

Toro 125-1726-01

AXLE ASM

$351.99

$

Usually ships in 3-6 days

0

5

Toro 119-3473

13 INCH WHEEL AND TIRE ASM

$117.99

$

In Stock, only 3 left!

0

6

Toro 119-3475

SPANNER

$11.99

$

In Stock, Qty 9

0

7

Toro 325-37

SCREW-HH

$6.99

$

In Stock, Qty 8

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 119-3349-01

FORK-CASTER

$166.99

$

In Stock, Qty 5

0

10

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, only 2 left!

0

11

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

14

Toro 120-5454

MAT-FLOOR
(Superseded to 132-6921)

$64.99

$

Usually ships in 3-6 days

0

15

Toro 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 16

0

16

Toro 132-0892

Footrest ASM

$217.99

$

Usually ships in 3-6 days

0

16:2

Toro 99-4693

DECAL

$25.99

$

In Stock, only 1 left!

0

16:3

Toro 132-0869

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

20

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
