74770 (MX 5050) - Toro 50" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) BRAKE BOX ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

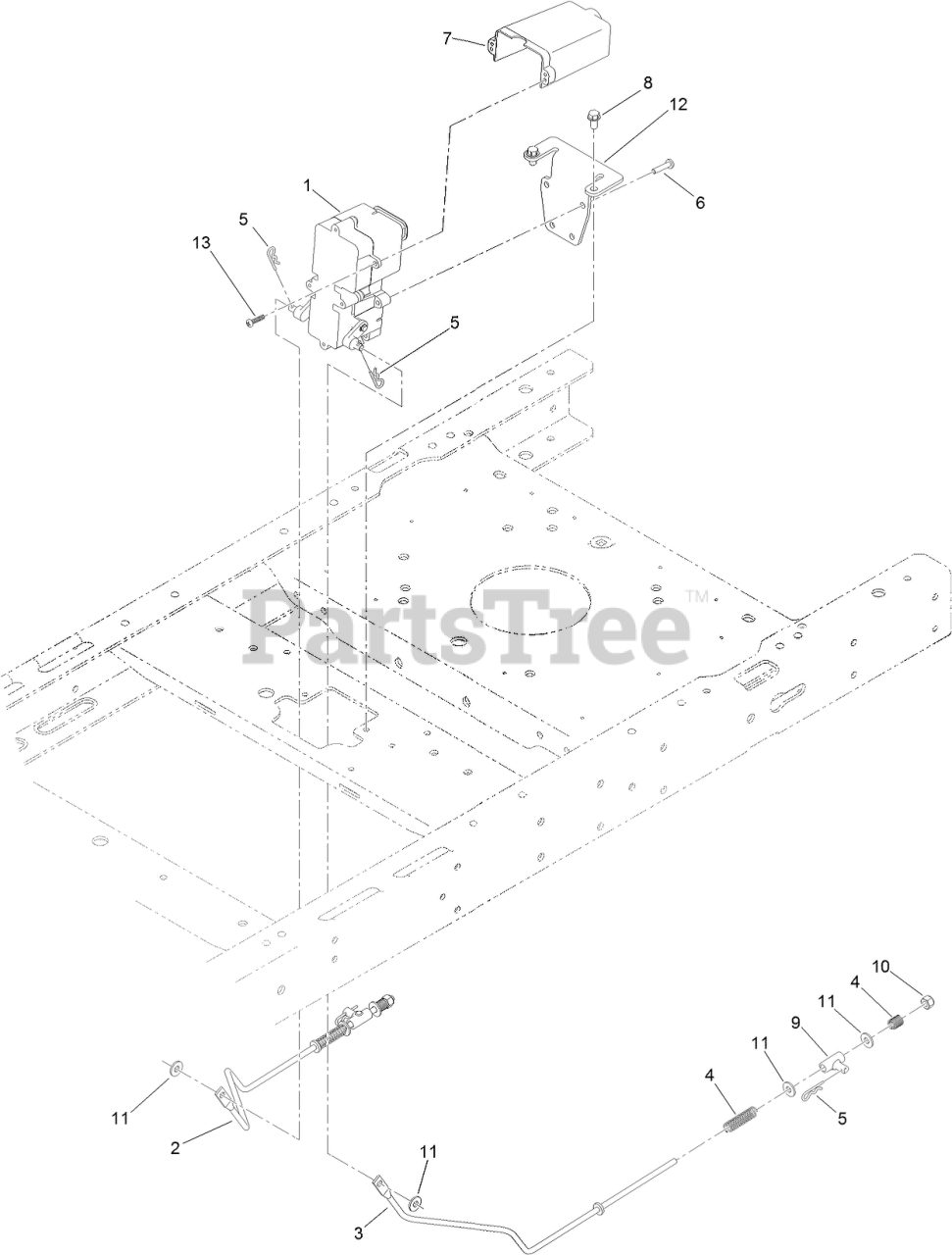

BRAKE BOX ASSEMBLY Parts Diagram

  • Title

1

Toro 130-6892

BRAKE BOX ASM
(Superseded to 136-4213)

$143.99

$

In Stock, Qty 14

0

2

Toro 119-8811

ROD-BRAKE, RH

$35.99

$

In Stock, only 1 left!

0

3

Toro 119-8812

ROD-BRAKE, LH

$23.99

$

In Stock, only 1 left!

0

4

Toro 121-5654

SPRING-COMPRESSION

$2.99

$

In Stock, Qty 20+

0

5

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

6

Toro 32144-36

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

7

Toro 130-6974

COVER-CONNECTOR
(Superseded to 132-6949)

$13.99

$

In Stock, only 2 left!

0

8

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

9

Toro 119-8857

MOUNT-PIVOT

$17.99

$

In Stock, only 2 left!

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

12

Toro 130-0790-03

BRACKET-MOUNT, BRAKE

$10.99

$

In Stock, only 2 left!

0

13

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0
