74768 (MX 5075) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400000000 - 402327411) Frame Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

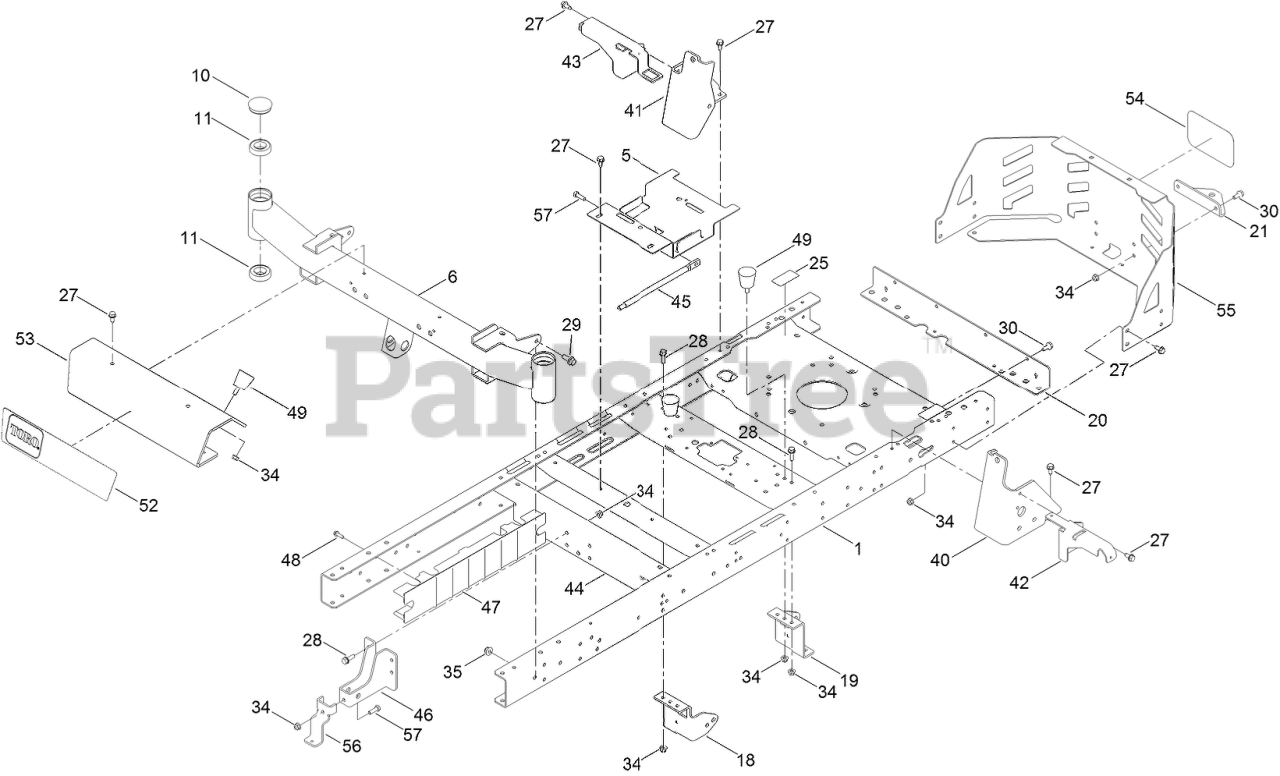

Frame Assembly Parts Diagram

  • Title
1

Toro 137-7023-01

FRAME ASM

$377.99

$

Usually ships in 3-6 days

0

5

Toro 133-9271-03

BRACKET-BATTERY

$25.99

$

Usually ships in 3-6 days

0

6

Toro 137-7029-01

AXLE-WIDE

$347.99

$

Usually ships in 3-6 days

0

10

Toro 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 15

0

11

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

18

Toro 137-7020-01

MOUNT-HYDRO, FRONT (RIGHT)

$15.99

$

Usually ships in 3-6 days

0

19

Toro 137-7021-01

MOUNT-HYDRO, FRONT (LEFT)
(Superseded to 139-3211-01)

$15.99

$

In Stock, only 1 left!

0

20

Toro 137-7016-01

CROSSMEMBER-REAR, WIDE

$29.99

$

Usually ships in 3-6 days

0

21

Toro 117-1232-03

BRACKET-HITCH

$29.99

$

In Stock, only 2 left!

0

25

Toro 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

27

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

29

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

30

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

34

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

40

Toro 137-5095-01

BRACKET-MOUNT

$56.99

$

Usually ships in 3-6 days

0

41

Toro 137-5096-01

BRACKET-MOUNT

$54.99

$

Usually ships in 3-6 days

0

42

Toro 137-1996-03

SUPPORT-POD

$26.99

$

Usually ships in 3-6 days

0

43

Toro 137-1995-03

SUPPORT-POD

$34.99

$

Usually ships in 3-6 days

0

44

Toro 133-9254-01

BRACE-CROSS, LOWER

$62.99

$

Usually ships in 3-6 days

0

45

Toro 133-9262

ROD-BRACE

$19.99

$

Usually ships in 3-6 days

0

46

Toro 137-7022-01

BRACKET-MOUNT DAMPER, LOWER

$33.99

$

Usually ships in 3-6 days

0

47

Toro 137-5093

GUARD-RAIL

$29.99

$

Usually ships in 3-6 days

0

48

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

49

Toro 132-5058

BUMPER-RUBBER

$12.99

$

Usually ships in 3-6 days

0

52

Toro 137-7043

DECAL-TIMECUTTER

$8.49

$

In Stock, only 2 left!

0

53

Toro 137-5002-01

STEP-FRONT

$102.99

$

Usually ships in 3-6 days

0

54

Toro 99-4693

DECAL

$25.99

$

In Stock, only 3 left!

0

55

Toro 137-2034-03

GUARD-ENGINE

$140.99

$

Usually ships in 3-6 days

0

56

Toro 137-5077-01

STOP-DECK

$20.99

$

Usually ships in 3-6 days

0

57

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
