74765 (MX 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 316000001 - 316999999) (2016) AIR INTAKE AND FILTRATION ASSEMBLY ENGINE ASSEMBLY NO. 121-0412 Parts Diagram

42" TimeCutter Zero-Turn Mower

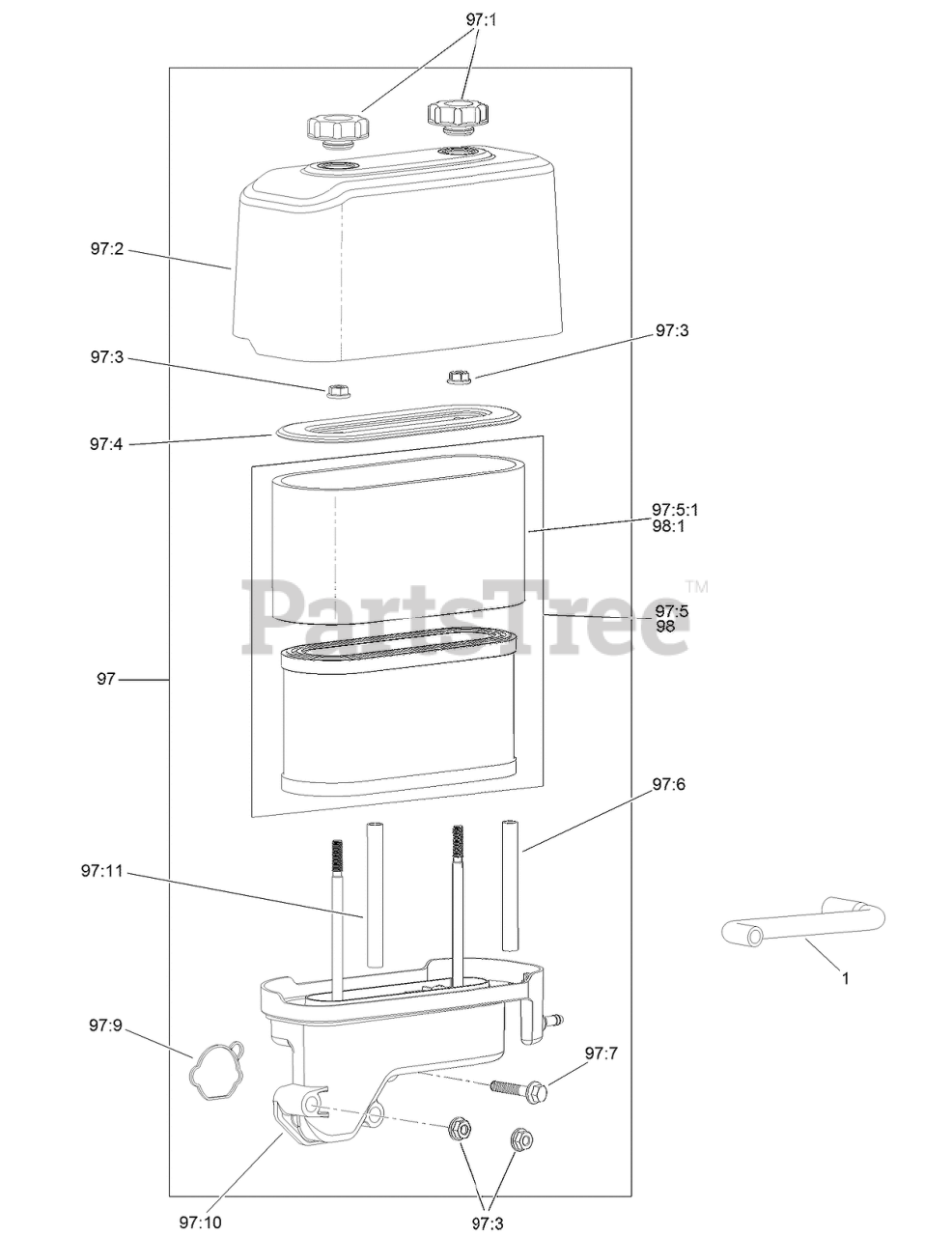

AIR INTAKE AND FILTRATION ASSEMBLY ENGINE ASSEMBLY NO. 121-0412 Parts Diagram

  • Title

1

Toro 120-4255

TUBE-BREATHER
(Superseded to 136-7829)

$5.49

$

In Stock, only 1 left!

0

97

Toro 127-9186

AIR CLEANER KIT
(Superseded to 136-7814)

$119.99

$

Usually ships in 3-6 days

0

97:1

Toro 120-4312

NUT-SPEED

$6.49

$

In Stock, only 1 left!

0

97:2

Toro 120-4311

COVER-FILTER, AIR

$17.99

$

In Stock, only 1 left!

0

97:3

Toro 120-4236

NUT-FLANGE

$1.49

$

In Stock, Qty 20+

0

97:4

Toro 120-4310

RETAINER-AIR FILTER

$

$

Not available

97:5

Toro 127-9193

AIR FILTER KIT
(Superseded to 136-7809)

$25.99

$

In Stock, only 2 left!

0

97:5:1

Toro 120-4309

PREFILTER
(Superseded to 136-7807)

$8.49

$

In Stock, only 4 left!

0

97:6

Toro 120-4333

SPACER-FILTER, AIR
(Superseded to 136-7809)

$25.99

$

In Stock, only 2 left!

0

97:7

Toro 120-4284

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

97:9

Toro 127-9185

GASKET-CARBURETOR

$5.49

$

In Stock, only 1 left!

0

97:10

Toro 127-9191

BASE-FILTER, AIR
(Superseded to 127-9348)

$29.99

$

In Stock, only 1 left!

0

97:11

Toro 120-4334

SPACER-FILTER, AIR
(Superseded to 136-7809)

$25.99

$

In Stock, only 2 left!

0

98

Toro 127-9193

AIR FILTER KIT
(Superseded to 136-7809)

$25.99

$

In Stock, only 2 left!

0

98:1

Toro 120-4309

PREFILTER
(Superseded to 136-7807)

$8.49

$

In Stock, only 4 left!

0
