74750 (MX 3450) - Toro 34" TimeCutter Zero-Turn Mower (SN: 316000001 - 316999999) (2016) BATTERY AND ELECTRICAL ASSEMBLY Parts Diagram

34" TimeCutter Zero-Turn Mower

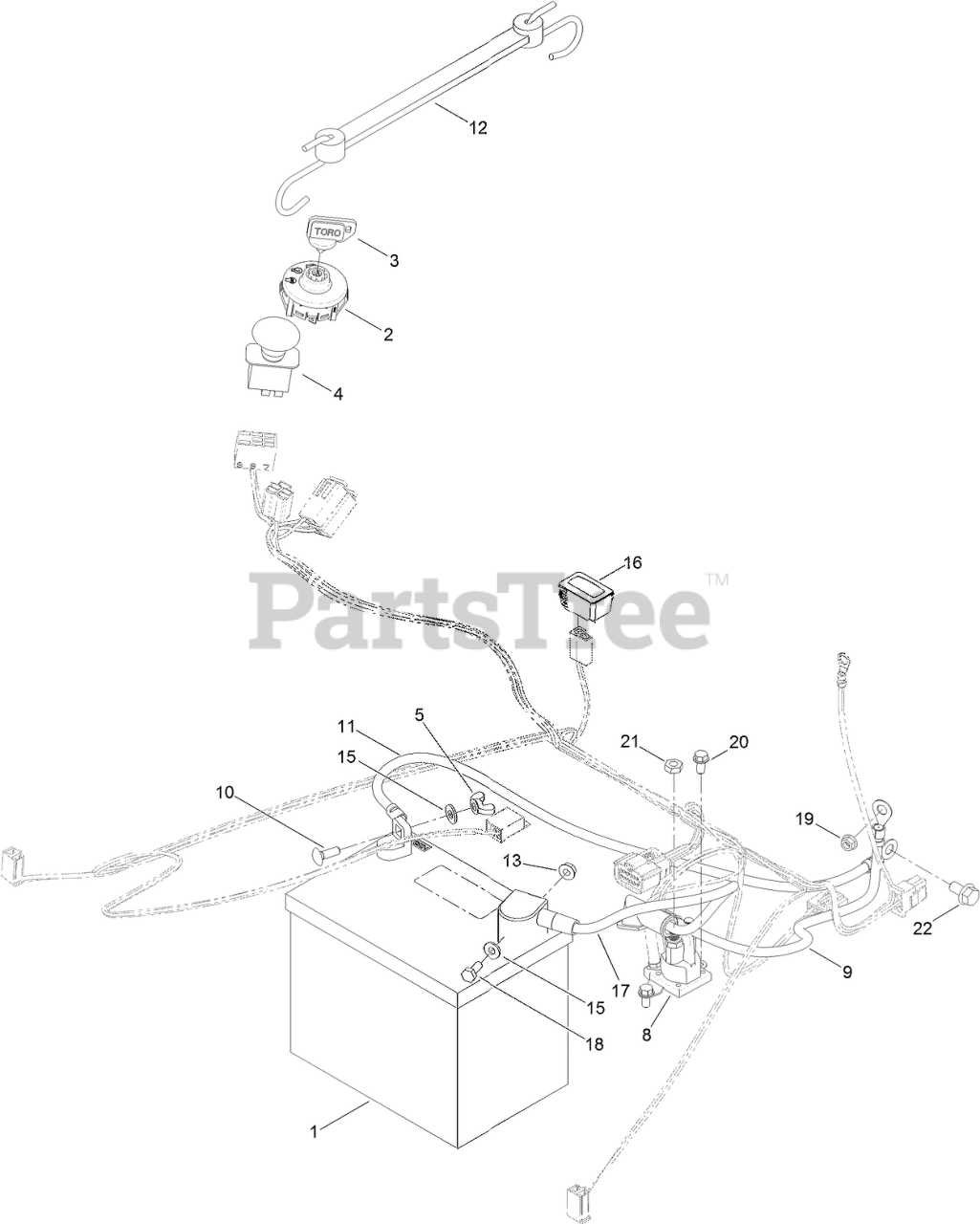

BATTERY AND ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 105-1692

BATTERY

$

$

Not available

2

Toro 117-2221

SWITCH-IGNITION
(Superseded to 137-4100)

$35.99

$

In Stock, Qty 19

0

3

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 12

0

4

Toro 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

5

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

8

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 16

0

9

Toro 121-0711

CABLE-BATTERY, POSITIVE

$14.99

$

In Stock, only 4 left!

0

10

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

11

Toro 119-8899

CABLE-BATTERY, BLACK

$17.99

$

In Stock, only 1 left!

0

12

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 6

0

13

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 120-2244

HOURMETER

$69.99

$

In Stock, only 1 left!

0

17

Toro 119-8897

CABLE-BATTERY, RED

$22.99

$

In Stock, only 1 left!

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

19

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

22

Toro 3234-14

SCREW-HHF

$1.99

$

In Stock, Qty 20+

0
