74750 (MX 3450) - Toro 34" TimeCutter Zero-Turn Mower (SN: 316000001 - 316999999) (2016) 34 INCH DECK, BELT AND BLADE ASSEMBLY Parts Diagram

34" TimeCutter Zero-Turn Mower

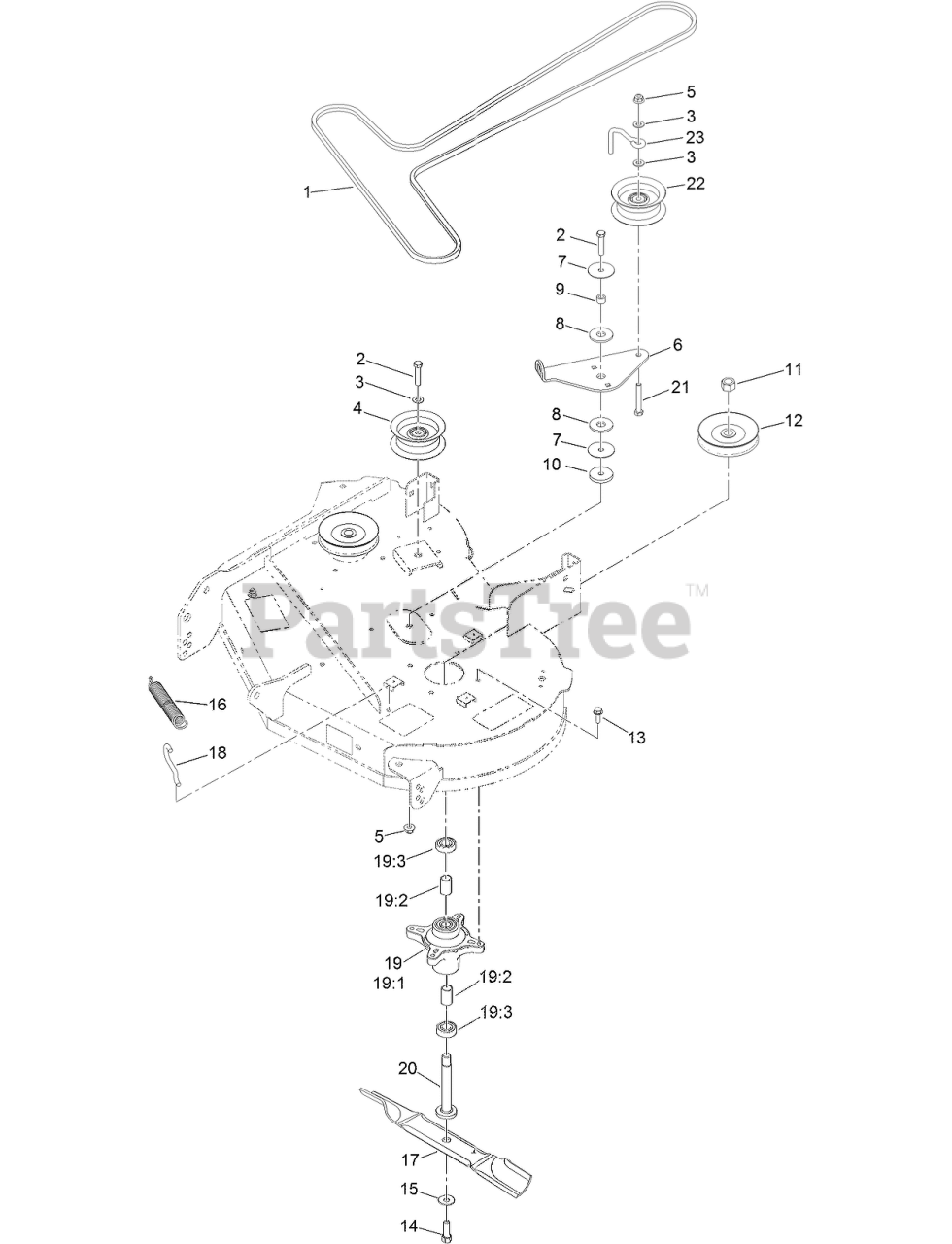

34 INCH DECK, BELT AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 130-0842

BELT-V
(Superseded to 130-0842-SL)

$76.99

$

Usually ships in 3-6 days

0

2

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$34.99

$

In Stock, Qty 20+

0

5

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 114-8540

ARM-IDLER

$21.99

$

In Stock, only 3 left!

0

7

Toro 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

8

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 9

0

9

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 10

0

10

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

11

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

12

Toro 127-0098

PULLEY ASM

$39.99

$

In Stock, only 2 left!

0

13

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

14

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

15

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Toro 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, only 2 left!

0

17

Toro 115-5059-03

BLADE-HI LIFT
(Superseded to 142-6453-S)

$25.99

$

In Stock, Qty 19

0

18

Toro 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 10

0

19

Toro 121-0751

SPINDLE ASM
(Superseded to 139-3214)

$77.99

$

In Stock, only 2 left!

0

19:1

Toro 117-7267

SPINDLE
(Superseded to 139-3214)

$77.99

$

In Stock, only 2 left!

0

19:2

Toro 120-7935

SPACER

$2.99

$

In Stock, Qty 20+

0

19:3

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

20

Toro 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 20+

0

21

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

22

Toro 88-5630

PULLEY-IDLER, FLAT
(Superseded to 132-4717)

$22.99

$

In Stock, only 4 left!

0

23

Toro 107-7307

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 6

0
