74750 (MX 3450) - Toro 34" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

34" TimeCutter Zero-Turn Mower

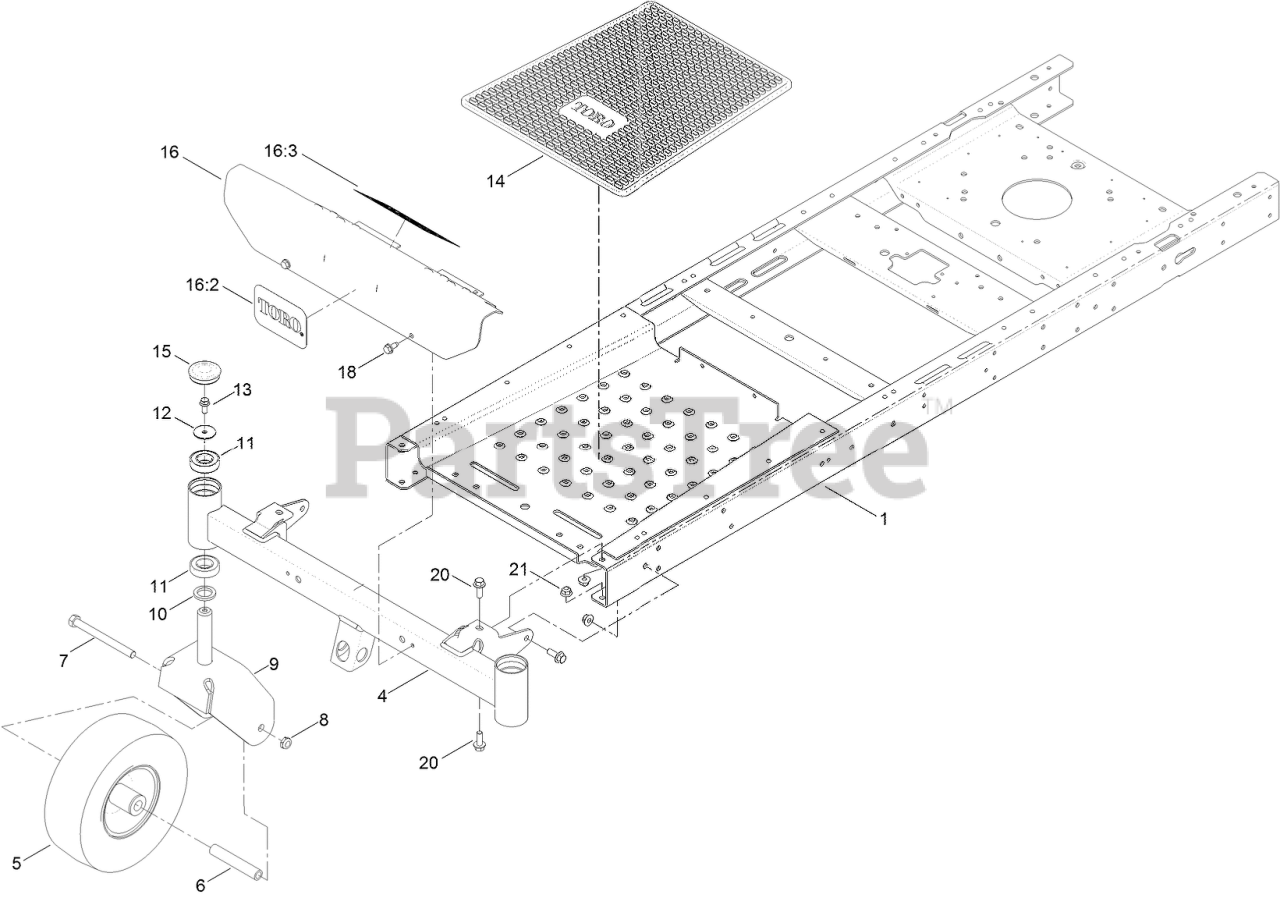

FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 127-3444-01

FRAME ASM

$468.99

$

Usually ships in 3-6 days

0

4

Toro 125-1742-01

AXLE-FRONT, NARROW

$319.99

$

Usually ships in 3-6 days

0

5

Toro 130-0736

Caster Wheel ASM

$87.99

$

In Stock, only 4 left!

0

6

Toro 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 10

0

7

Toro 325-22

SCREW-HH

$8.49

$

In Stock, only 1 left!

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

9

Toro 120-2266-01

FORK-CASTER

$181.99

$

In Stock, only 1 left!

0

10

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, only 2 left!

0

11

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 17

0

14

Toro 120-5455

MAT-FLOOR
(Superseded to 132-6895)

$106.99

$

Usually ships in 3-6 days

0

15

Toro 116-4348

CAP-GREASE

$5.49

$

In Stock, Qty 16

0

16

Toro 132-0890

FOOTREST ASM

$217.99

$

Usually ships in 3-6 days

0

16:2

Toro 105-8278

DECAL

$10.99

$

In Stock, only 2 left!

0

16:3

Toro 132-0869

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0
