74750 (MX 3450) - Toro 34" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) 34 INCH DECK ASSEMBLY Parts Diagram

34" TimeCutter Zero-Turn Mower

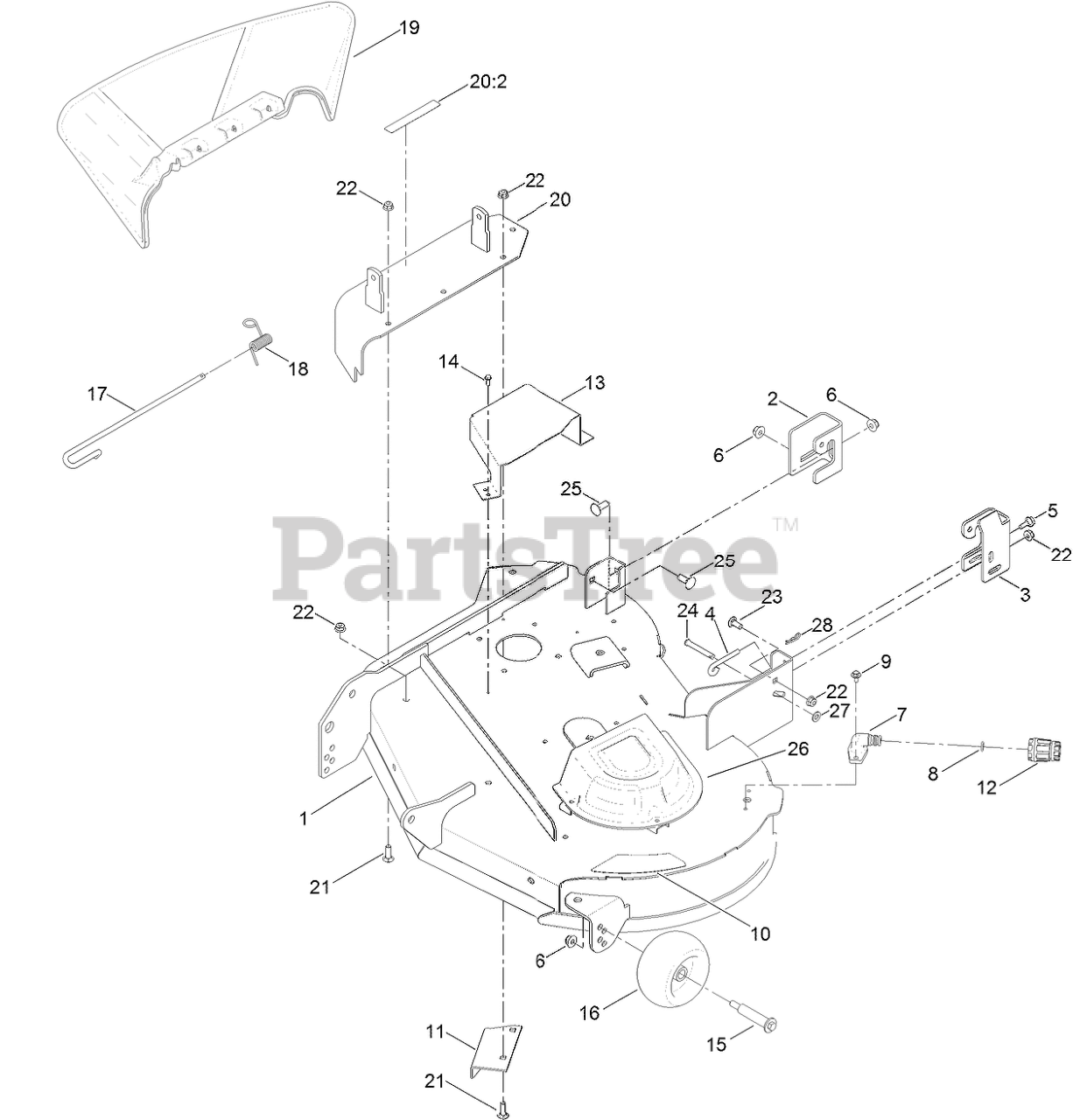

34 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 130-7005

34 INCH DECK ASM

$991.99

$

Usually ships in 3-6 days

0

2

Toro 131-4138

BRACKET-HANGER, RH

$14.99

$

In Stock, Qty 20+

0

3

Toro 131-1091

BRACKET-HANGER, LH

$15.99

$

In Stock, Qty 20+

0

4

Toro 131-0955

ROD-LEVEL, DECK

$8.49

$

In Stock, Qty 15

0

5

Toro 120-7024

SCREW-SHOULDER, HHF

$2.99

$

In Stock, Qty 20+

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.99

$

In Stock, Qty 20+

0

8

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 5

0

9

Toro 46-8560

SCREW-HHFTF

$2.49

$

In Stock, Qty 20+

0

10

Toro 131-0960

DECAL-DECK

$13.99

$

Usually ships in 3-6 days

0

11

Toro 127-0096-03

BAFFLE-CUTOFF

$17.99

$

Usually ships in 3-6 days

0

12

Toro 95-3270

CONNECTOR-HOSE

$25.99

$

In Stock, Qty 20+

0

13

Toro 130-6992-05

COVER-DECK BELT

$36.99

$

Usually ships in 3-6 days

0

14

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

0

15

Toro 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

0

16

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

0

17

Toro 109-8854

PIN-CHUTE

$17.99

$

In Stock, Qty 16

0

18

Toro 121-2983

SPRING-TORSION
(Superseded to 138-7232)

$2.99

$

In Stock, only 2 left!

0

19

Toro 121-0739

DEFLECTOR-DISCHARGE

$68.99

$

In Stock, Qty 20+

0

20

Toro 131-3961

COVER ASM W/DECAL

$79.99

$

In Stock, only 2 left!

0

20:2

Toro 93-7009

DECAL-DANGER

$7.99

$

In Stock, Qty 20+

0

21

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0

22

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

23

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

24

Toro 110-0618

PIN-CLEVIS

$13.99

$

In Stock, Qty 20+

0

25

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

26

Toro 108-7889

COVER-BELT

$36.99

$

In Stock, Qty 7

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 1-806003

PIN-COTTER

$1.99

$

In Stock, Qty 20+

0
