74741 (SS 5425) - Toro 54" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) SEAT ASSEMBLY Parts Diagram

54" TimeCutter Zero-Turn Mower

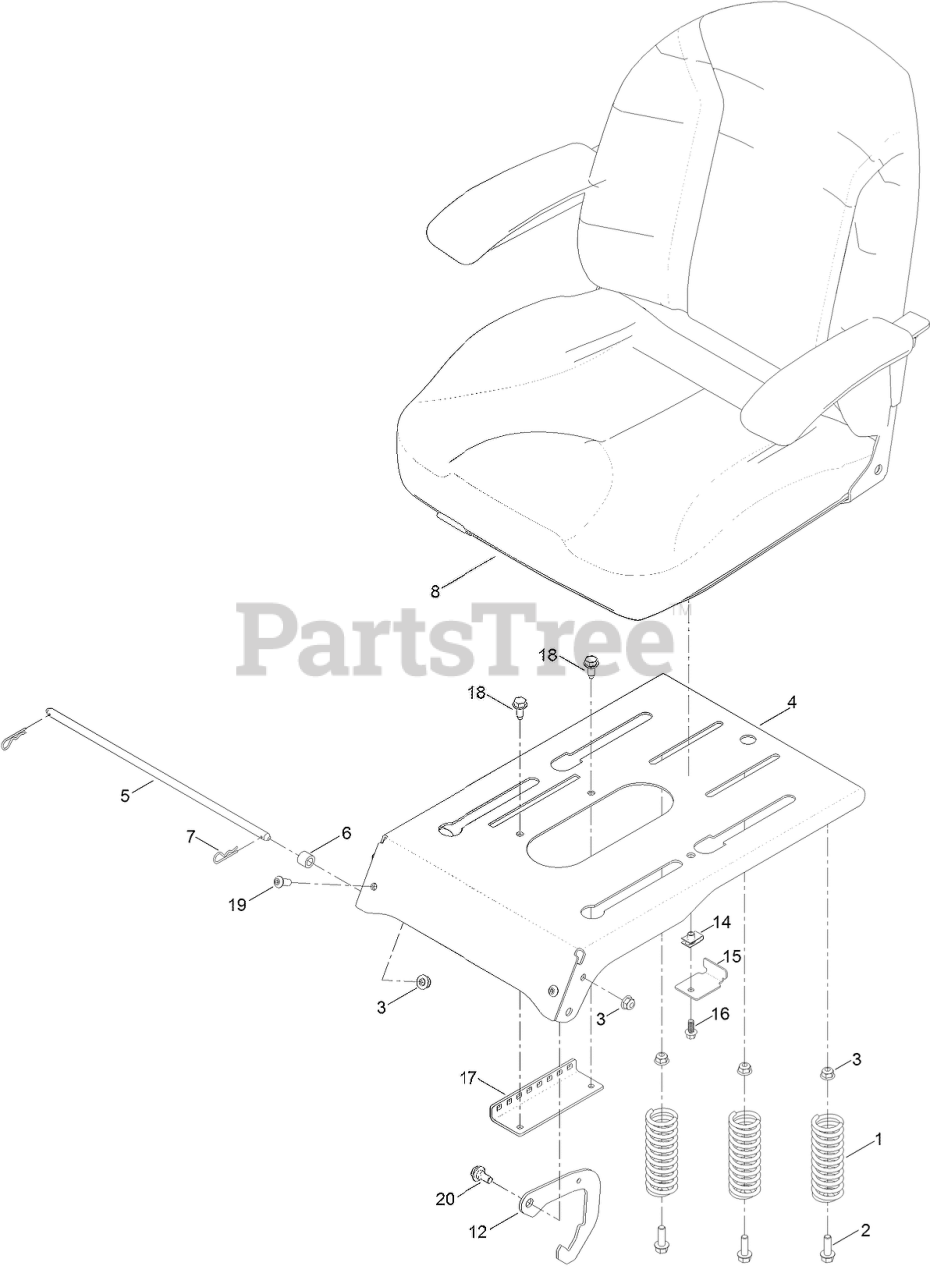

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

2

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

4

Toro 136-5571-01

PAN-SEAT, DELUXE

$74.99

$

Usually ships in 3-6 days

0

5

Toro 115-4966

ROD-STOP

$19.99

$

Usually ships in 3-6 days

0

6

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

7

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

8

Toro 131-4147

SEAT ASM

$631.99

$

Usually ships in 3-6 days

0

12

Toro 132-9353

LATCH-SEAT
(Superseded to 138-7250)

$8.49

$

In Stock, only 1 left!

0

14

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

15

Toro 131-1038

BRACKET-STOP, SEAT
(Superseded to 138-7214)

$2.99

$

Usually ships in 3-6 days

0

16

Toro 99-6810

SCREW-HHF

$3.49

$

In Stock, only 1 left!

0

17

Toro 131-4008-03

BRACKET-LATCH, SEAT

$6.49

$

Usually ships in 3-6 days

0

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

19

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

20

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0
