74727 (MX 5025) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) BODY STYLING AND FUEL TANK ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

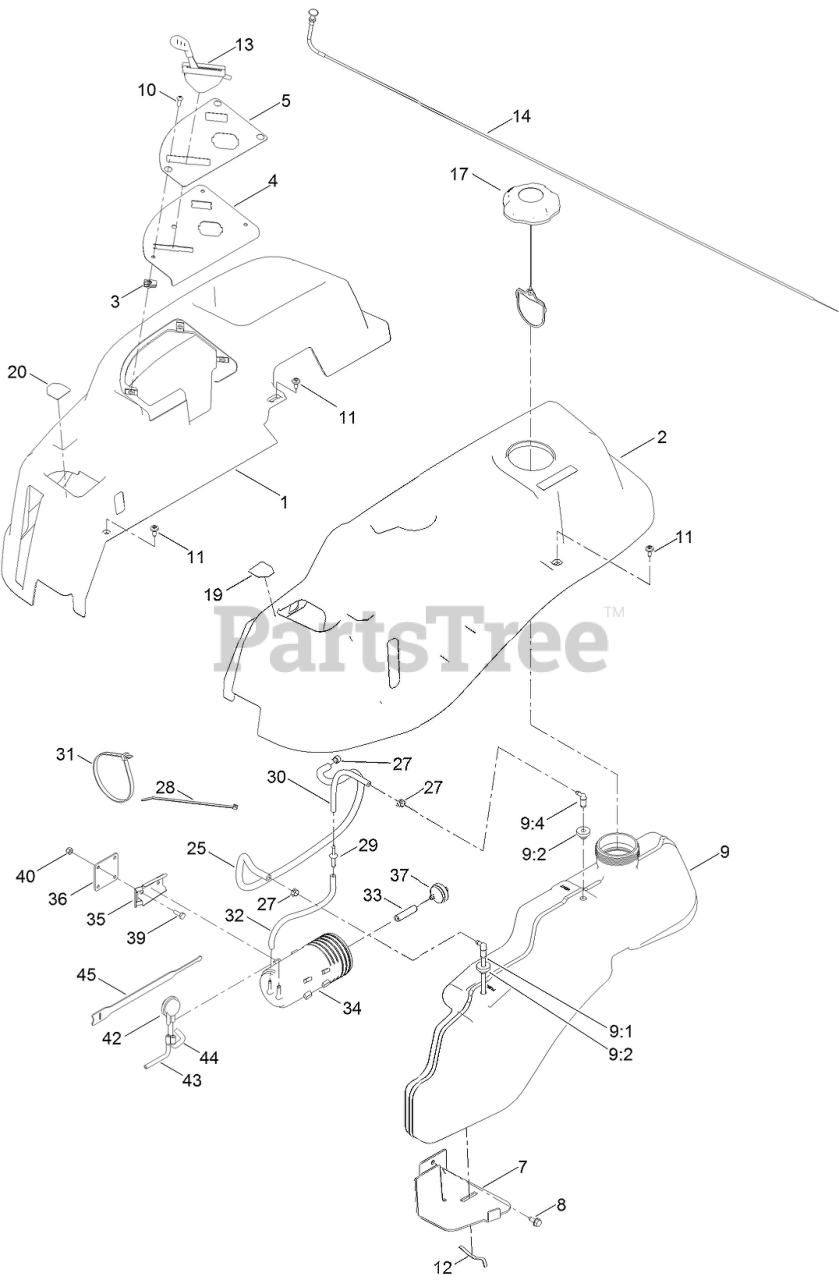

BODY STYLING AND FUEL TANK ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3338

POD-RH

$75.99

$

Usually ships in 3-6 days

0

2

Toro 119-3337

POD-LH

$75.99

$

In Stock, only 1 left!

0

3

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

4

Toro 119-3377-03

PLATE-CONTROL

$12.99

$

Usually ships in 3-6 days

0

5

Toro 121-0773

DECAL-PANEL, CONTROL

$13.99

$

In Stock, only 1 left!

0

7

Toro 119-3395-03

SUPPORT-TANK, FRONT

$17.99

$

Usually ships in 3-6 days

0

8

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

9

Toro 119-3324

FUEL TANK ASM

$313.99

$

In Stock, only 3 left!

0

9:1

Toro 121-0793

CONNECTOR-ELBOW, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

9:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

9:4

Toro 117-7400

FITTING-PLASTIC

$6.49

$

In Stock, Qty 7

0

10

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

11

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 13

0

12

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

13

Toro 121-0769

CABLE-THROTTLE

$52.99

$

In Stock, only 1 left!

0

14

Toro 112-9753

CABLE-CHOKE

$44.99

$

In Stock, Qty 20+

0

17

Toro 137-4119

CAP-FUEL, RATCHETING

$26.99

$

In Stock, only 1 left!

0

19

Toro 119-8814

DECAL-LEVER, CONTROL (LH)

$2.99

$

In Stock, only 1 left!

0

20

Toro 119-8815

DECAL-LEVER, CONTROL (RH)

$2.99

$

In Stock, only 2 left!

0

25

Toro 109-0301

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

27

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

28

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

29

Toro 117-5399

ADAPTOR-ORIFICE

$3.49

$

In Stock, only 1 left!

0

30

Toro 110-1876

HOSE-FUEL

$12.99

$

In Stock, only 2 left!

0

31

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

32

Toro 121-3003

HOSE-FUEL

$8.99

$

Usually ships in 3-6 days

0

33

Toro 99-9415

HOSE-FUEL

$3.49

$

In Stock, only 4 left!

0

34

Toro 117-1221

CANISTER-CARBON, 800CC

$73.99

$

In Stock, only 1 left!

0

35

Toro 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

36

Toro 119-8992-03

PLATE-ADAPTER

$9.49

$

Usually ships in 3-6 days

0

37

Toro 115-7854

FILTER-FUEL, INLINE

$7.49

$

In Stock, only 4 left!

0

39

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

40

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

42

Toro 116-2232

VALVE-CONTROL, VACUUM

$25.99

$

In Stock, only 3 left!

0

43

Toro 119-8501

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

44

Toro 119-8502

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

45

Toro 116-2469

STRAP-VELCRO, CABLE TIE

$18.99

$

Usually ships in 3-6 days

0
