74722 (SS 4225) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) 42 INCH DECK ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

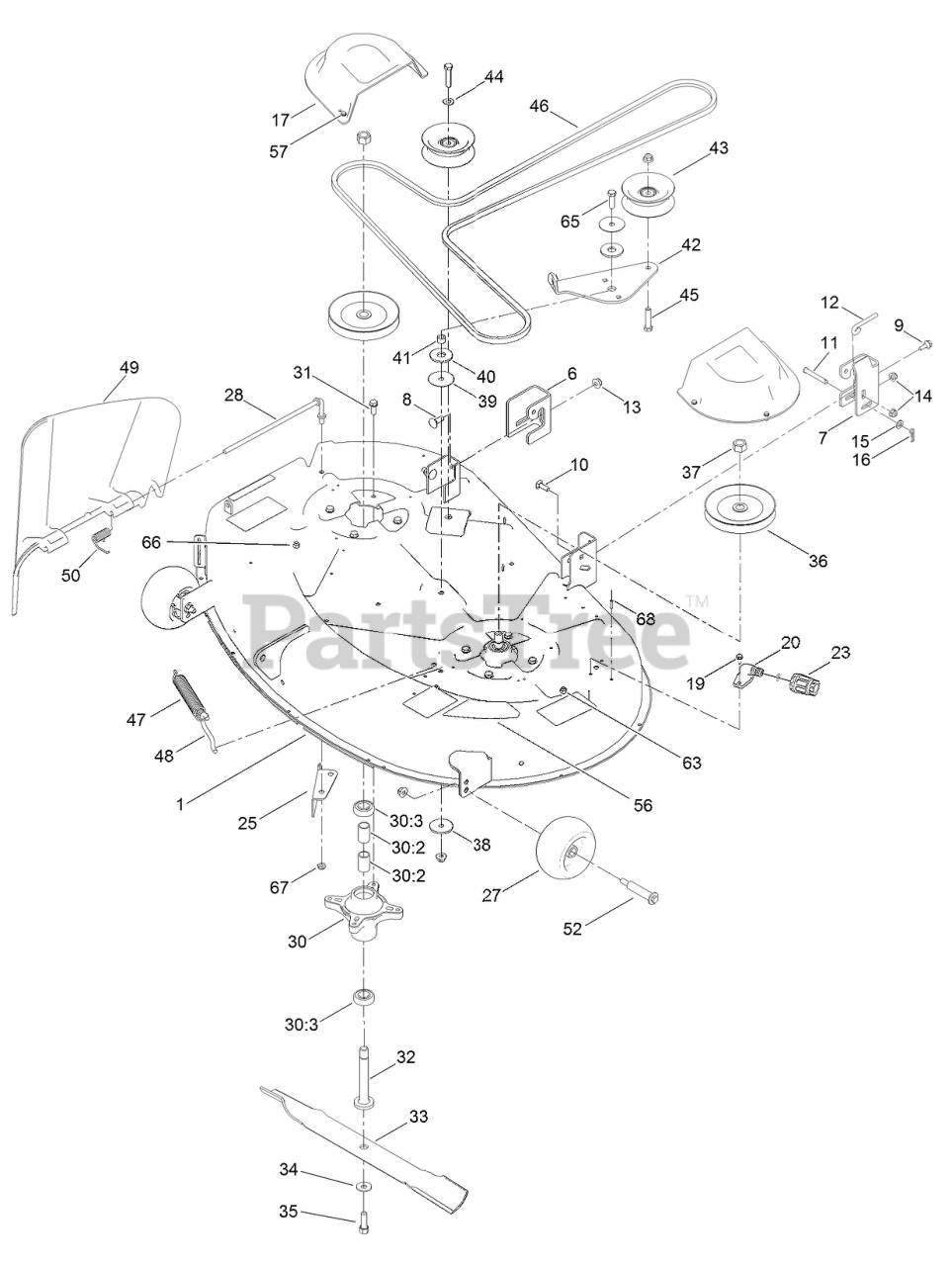

42 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 131-3604

42 INCH DECK AND DECAL ASM

$1042.99

$

Usually ships in 3-6 days

0

6

Toro 131-4138

BRACKET-HANGER, RH

$13.99

$

In Stock, Qty 9

0

7

Toro 131-1091

BRACKET-HANGER, LH

$14.99

$

In Stock, Qty 12

0

8

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

9

Toro 120-7024

SCREW-SHOULDER, HHF

$2.99

$

In Stock, Qty 18

0

10

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

0

11

Toro 110-0618

PIN-CLEVIS

$13.99

$

In Stock, Qty 6

0

12

Toro 131-0955

ROD-LEVEL, DECK

$7.99

$

In Stock, only 1 left!

0

13

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

15

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

16

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

17

Toro 108-7889

COVER-BELT

$34.99

$

In Stock, only 2 left!

0

19

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

20

Toro 133-9289

FITTING-WASHOUT

$6.49

$

In Stock, Qty 5

0

23

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

25

Toro 112-3983-03

BAFFLE-CUTOFF

$26.99

$

Usually ships in 3-6 days

0

27

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

28

Toro 112-4026

ROD-PIVOT

$19.99

$

In Stock, Qty 5

0

30

Toro 121-0751

SPINDLE ASM
(Superseded to 139-3214)

$78.99

$

In Stock, only 2 left!

0

30:2

Toro 120-7935

SPACER

$2.99

$

In Stock, Qty 9

0

30:3

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

31

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

32

Toro 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 15

0

33

Toro 131-3939-03

BLADE-HIGH LIFT

$26.99

$

In Stock, Qty 20+

0

34

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

36

Toro 125-5574

Pulley
(Superseded to 139-2433)

$37.99

$

In Stock, Qty 20+

0

37

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

38

Toro 63-7400

WASHER-REBOUND

$2.99

$

In Stock, Qty 5

0

39

Toro 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

0

40

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

41

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 5

0

42

Toro 114-8540

ARM-IDLER

$21.99

$

In Stock, only 1 left!

0

43

Toro 106-2175

PULLEY-IDLER, FLAT
(Superseded to 132-9420)

$34.99

$

In Stock, Qty 20+

0

44

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

45

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

46

Toro 119-8819

V-BELT
(Superseded to 147-2924)

$54.99

$

Usually ships in 3-6 days

0

47

Toro 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

48

Toro 88-5970

HOOK-RETURN, SPRING
(Superseded to 138-7267)

$2.99

$

In Stock, Qty 8

0

49

Toro 112-3951

DEFLECTOR

$62.99

$

In Stock, Qty 20+

0

50

Toro 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 7

0

52

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

56

Toro 117-1222

DECAL

$9.99

$

In Stock, only 4 left!

0

57

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

63

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 10

0

65

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

66

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

67

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

68

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0
