74722 (SS 4225) - Toro 42" TimeCutter Zero-Turn Mower (SN: 316000001 - 316999999) (2016) ENGINE AND MUFFLER ASSEMBLY Parts Diagram
42" TimeCutter Zero-Turn Mower

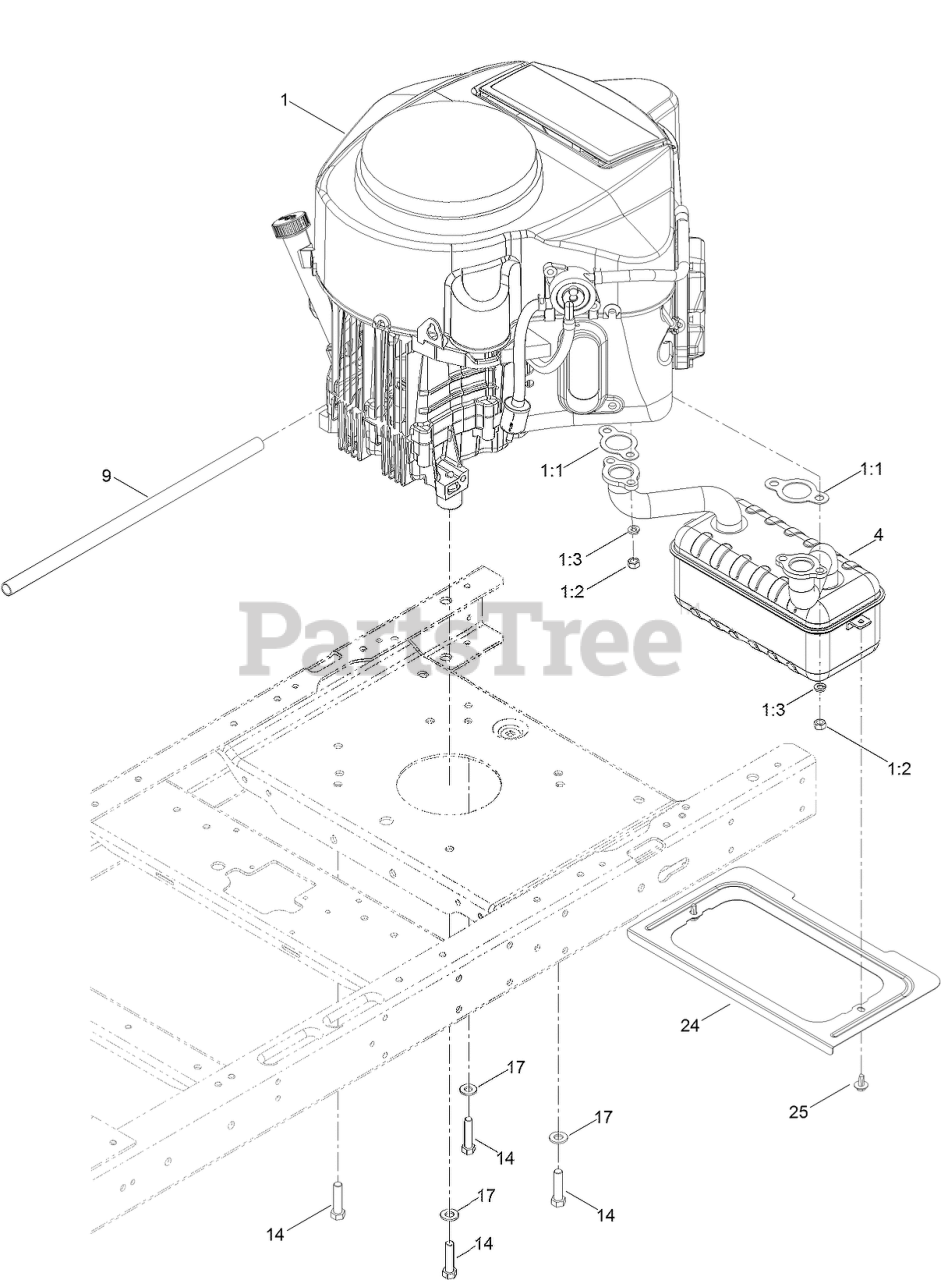

ENGINE AND MUFFLER ASSEMBLY Parts Diagram
1
ENGINE-KAWASAKI, FR600V
Note: Not serviced separately
$
$
Not available
1
ENGINE-KAWASAKI, FR600V
Note: Obtain parts from www.kawpowerepc.com
$
$
Not available
Toro 1-653313
GASKET-EXHAUST
$4.99
$
Usually ships in 3-6 days
Toro 114-3549
NUT
$1.99
$
In Stock, Qty 20+
Toro 114-3550
WASHER-LOCK
$1.49
$
In Stock, Qty 6
Toro 130-0675
MUFFLER
$134.99
$
Usually ships in 3-6 days
Toro 106-7022
TUBE-DRAIN, OIL
$9.49
$
In Stock, only 1 left!
Toro 323-50
BOLT-HH
$1.49
$
In Stock, Qty 17
Toro 3256-24
WASHER-FLAT
$0.99
$
In Stock, Qty 20+
Toro 131-1071-03
SHIELD-HEAT
$20.99
$
Usually ships in 3-6 days
Toro 46-8560
SCREW-HHFTF
$1.99
$
In Stock, only 4 left!
