74722 (SS 4225) - Toro 42" TimeCutter Zero-Turn Mower (SN: 316000001 - 316999999) (2016) 42 INCH DECK ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

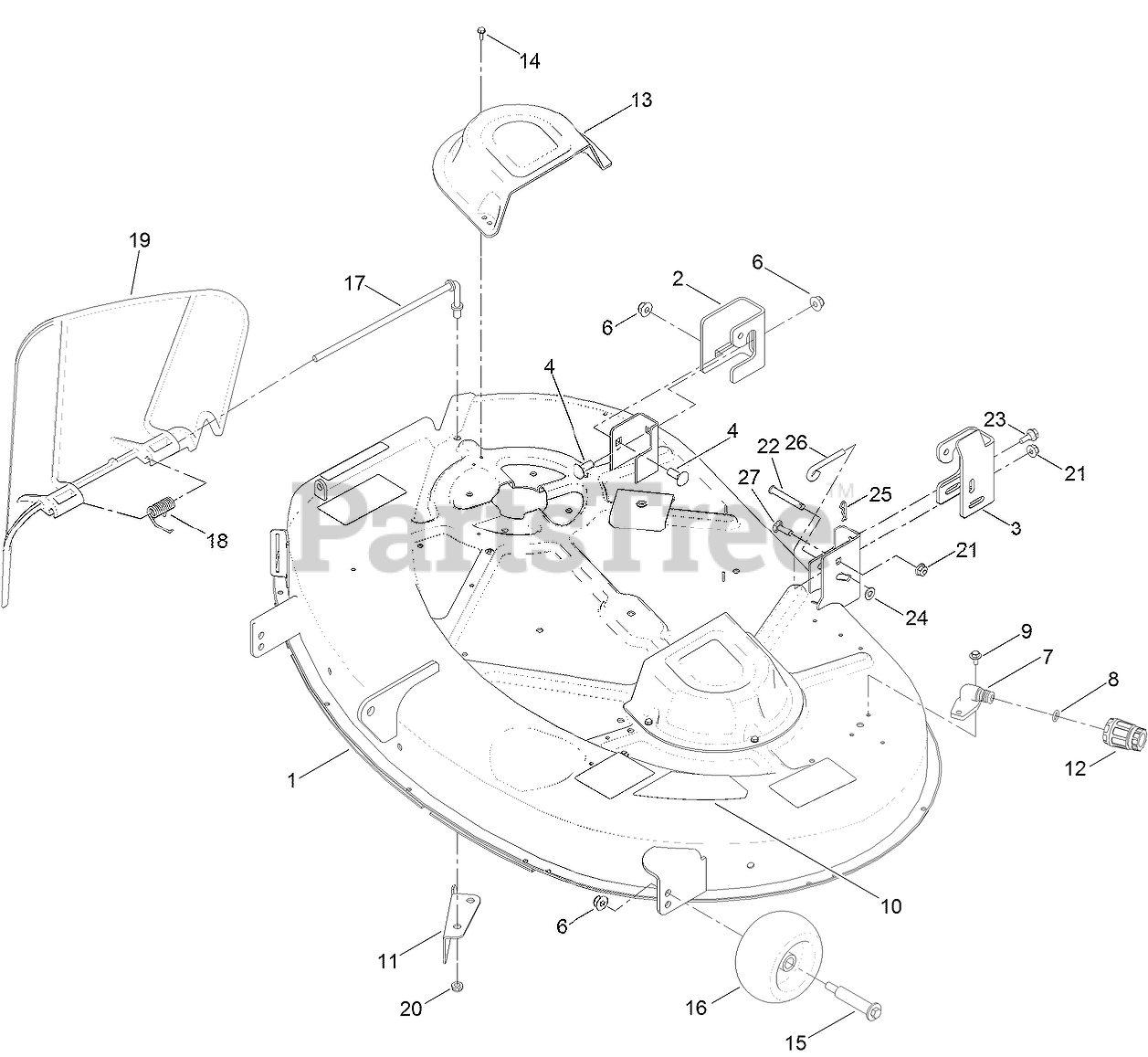

42 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 131-3604

42 INCH DECK AND DECAL ASM

$1084.99

$

Usually ships in 3-6 days

0

2

Toro 131-4138

BRACKET-HANGER, RH

$13.99

$

In Stock, Qty 20+

0

3

Toro 131-1091

BRACKET-HANGER, LH

$14.99

$

In Stock, Qty 20+

0

4

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

6

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

7

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 20+

0

8

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 14

0

9

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

10

Toro 117-1222

DECAL

$9.99

$

In Stock, only 4 left!

0

11

Toro 112-3983-03

BAFFLE-CUTOFF

$26.99

$

In Stock, only 1 left!

0

12

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, Qty 8

0

13

Toro 108-7889

COVER-BELT

$34.99

$

In Stock, only 3 left!

0

14

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

15

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 20+

0

16

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

17

Toro 112-4026

ROD-PIVOT

$19.99

$

In Stock, Qty 6

0

18

Toro 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 20+

0

19

Toro 112-3951

DEFLECTOR

$62.99

$

In Stock, Qty 20+

0

20

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 110-0618

PIN-CLEVIS

$13.99

$

In Stock, Qty 20+

0

23

Toro 120-7024

SCREW-SHOULDER, HHF

$2.99

$

In Stock, Qty 20+

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

26

Toro 131-0955

ROD-LEVEL, DECK

$7.99

$

In Stock, Qty 11

0

27

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, Qty 20+

0
