74721 (SS 4225) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) TRACTION DRIVE ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

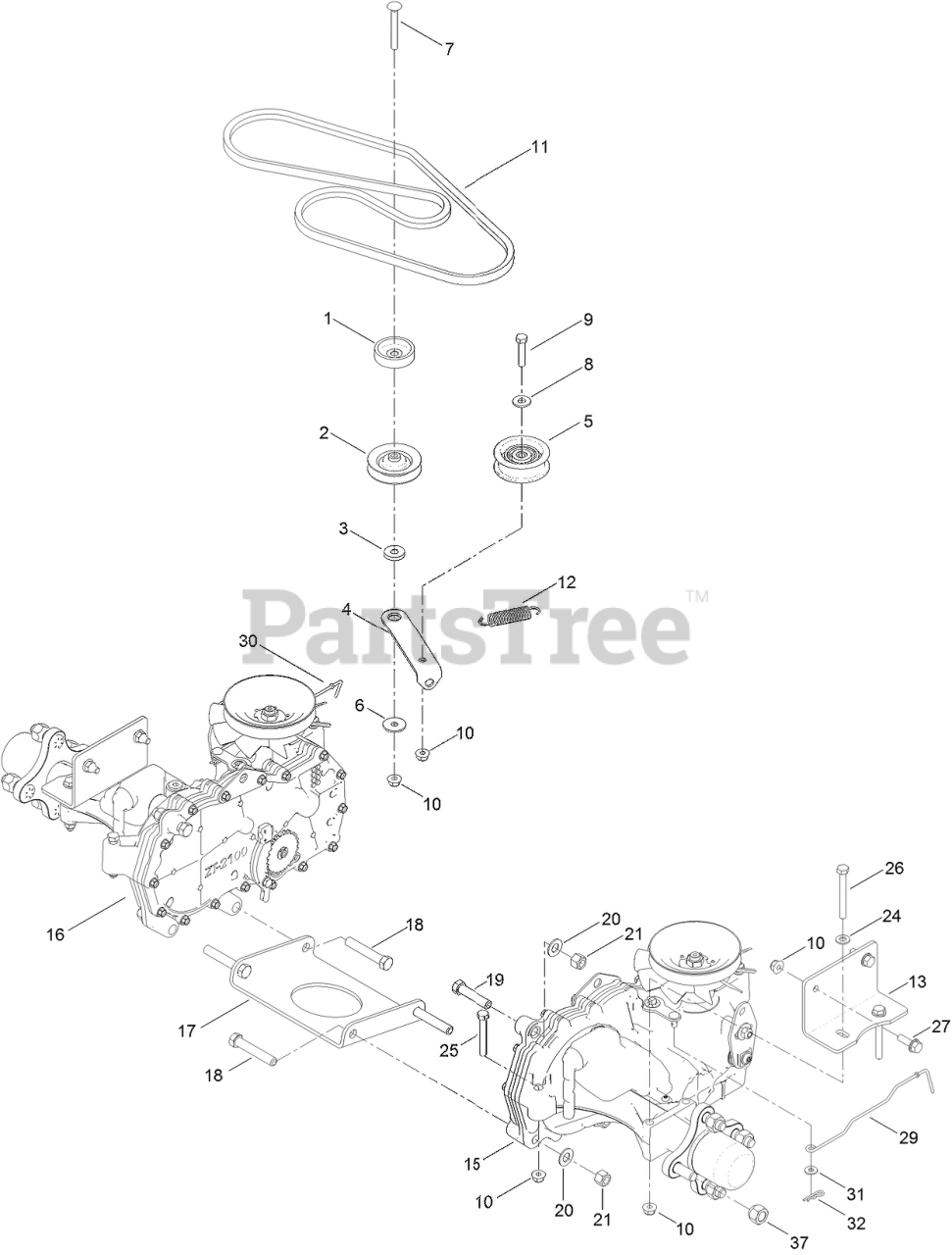

TRACTION DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 119-3353

SPACER

$11.99

$

In Stock, only 1 left!

0

2

Toro 119-8822

PULLEY-IDLER

$25.99

$

In Stock, Qty 6

0

3

Toro 119-3327

SPACER-ARM, IDLER

$3.99

$

In Stock, Qty 20+

0

4

Toro 119-3326

ARM-IDLER
(Superseded to 138-7276)

$6.49

$

In Stock, only 1 left!

0

5

Toro 106-2176

PULLEY-IDLER

$31.99

$

In Stock, Qty 16

0

6

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

7

Toro 3230-8

SCREW-CARR

$4.99

$

In Stock, Qty 13

0

8

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

11

Toro 130-6975

V-BELT
(Superseded to 130-6975-SL)

$36.99

$

Usually ships in 3-6 days

0

12

Toro 104-6415

SPRING-RETURN, PEDAL
(Superseded to 137-7040)

$5.49

$

In Stock, Qty 9

0

13

Toro 117-7264-03

MOUNT-HYDRO

$9.49

$

Usually ships in 3-6 days

0

15

Toro 119-3330

LH HYDRO TRANSAXLE ASM

$1340.99

$

Usually ships in 3-6 days

0

16

Toro 119-3331

RH HYDRO TRANSAXLE ASM

$1354.99

$

Usually ships in 3-6 days

0

17

Toro 119-3339-03

PLATE-CROSS, HYDRO

$25.99

$

Usually ships in 3-6 days

0

18

Toro 324-10

SCREW-HH

$2.49

$

In Stock, Qty 15

0

19

Toro 324-8

SCREW-HH

$5.99

$

In Stock, Qty 18

0

20

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

21

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

25

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

26

Toro 322-13

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

27

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

29

Toro 131-0900

ROD-BYPASS, LH
(Superseded to 138-7243)

$8.49

$

In Stock, only 1 left!

0

30

Toro 130-7049

ROD-BYPASS, RH
(Superseded to 138-7245)

$8.49

$

Usually ships in 3-6 days

0

31

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

32

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

35

Toro 614249

TIE-CABLE

Note: Not illustrated

$1.49

$

In Stock, Qty 6

0

37

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0
