74720 (SS 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) PISTON AND CYLINDER HEAD ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

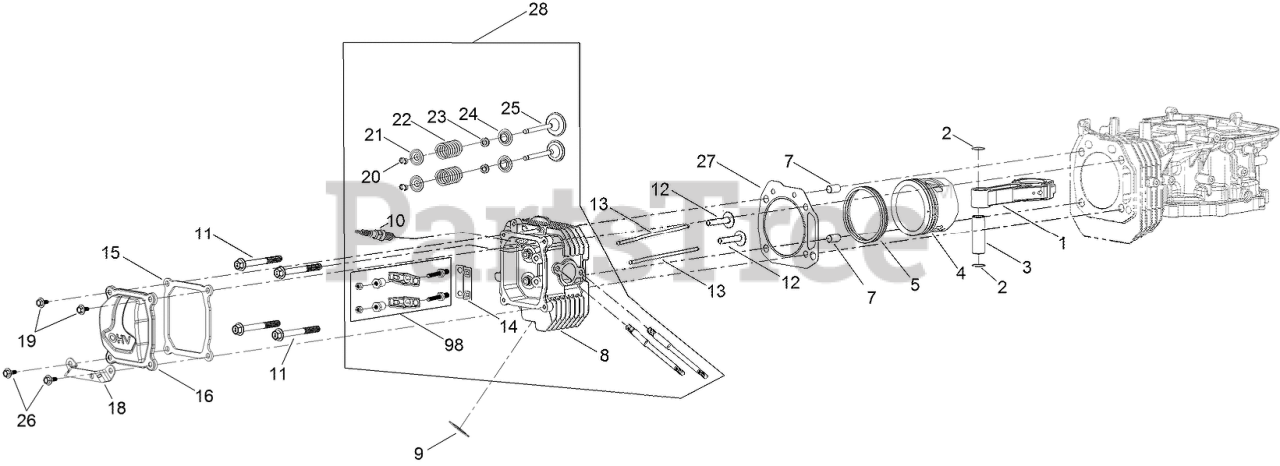

PISTON AND CYLINDER HEAD ASSEMBLY Parts Diagram

  • Title
1

Toro 120-4292

CONNECTING ROD ASM

$44.99

$

In Stock, only 1 left!

0

2

Toro 120-4288

RING-RETAINING, PISTON PIN

$1.49

$

In Stock, Qty 12

0

3

Toro 120-4291

PIN-PISTON

$9.49

$

Usually ships in 3-6 days

0

4

Toro 120-4290

PISTON

$59.99

$

In Stock, only 2 left!

0

5

Toro 120-4289

RING SET

$28.99

$

In Stock, only 1 left!

0

7

Toro 120-4200

PIN-DOWEL

$2.99

$

Usually ships in 3-6 days

0

8

Toro 120-4203

HEAD-CYLINDER

$167.99

$

In Stock, only 3 left!

0

9

Toro 120-4317

GASKET-EXHAUST

$5.49

$

In Stock, only 3 left!

0

10

Toro 77-7330

PLUG-SPARK

$3.49

$

In Stock, Qty 20+

0

11

Toro 120-4205

SCREW-HHF

$11.99

$

Usually ships in 3-6 days

0

12

Toro 120-4298

LIFTER-VALVE

$14.99

$

Usually ships in 3-6 days

0

13

Toro 120-4340

ROD-PUSH

$6.49

$

In Stock, only 2 left!

0

14

Toro 120-4300

PLATE-GUIDE, PUSH ROD

$5.49

$

In Stock, only 1 left!

0

15

Toro 120-4206

GASKET-COVER, VALVE

$9.49

$

In Stock, Qty 6

0

16

Toro 120-4207

COVER-VALVE

$17.99

$

In Stock, only 1 left!

0

18

Toro 120-4345

BRACKET-MUFFLER

$14.99

$

Usually ships in 3-6 days

0

19

Toro 120-4209

SCREW-SHOULDER, HHF

$6.49

$

In Stock, only 1 left!

0

20

Toro 120-4307

KEEPER-VALVE

$8.49

$

In Stock, only 3 left!

0

21

Toro 120-4306

RETAINER-SPRING, VALVE

$11.99

$

In Stock, only 1 left!

0

22

Toro 120-4305

SPRING-VALVE

$6.49

$

In Stock, only 4 left!

0

23

Toro 120-4304

SEAL-STEM, VALVE

$18.99

$

Usually ships in 3-6 days

0

24

Toro 120-4303

SEAT-SPRING, VALVE

$7.99

$

In Stock, Qty 8

0

25

Toro 120-4302

VALVE SET

$34.99

$

Usually ships in 3-6 days

0

26

Toro 120-4210

SCREW-SHOULDER, HHF

$6.49

$

In Stock, only 2 left!

0

27

Toro 120-4201

GASKET-CYCLINDER

$14.99

$

In Stock, only 1 left!

0

28

Toro 133-9845

COMPLETE HEAD ASM
(Superseded to 136-7888)

$253.99

$

Usually ships in 3-6 days

0

98

Toro 120-4301

ROCKER ARM KIT
(Superseded to 136-7885)

$17.99

$

In Stock, only 1 left!

0
