74720 (SS 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) MOTION CONTROL ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

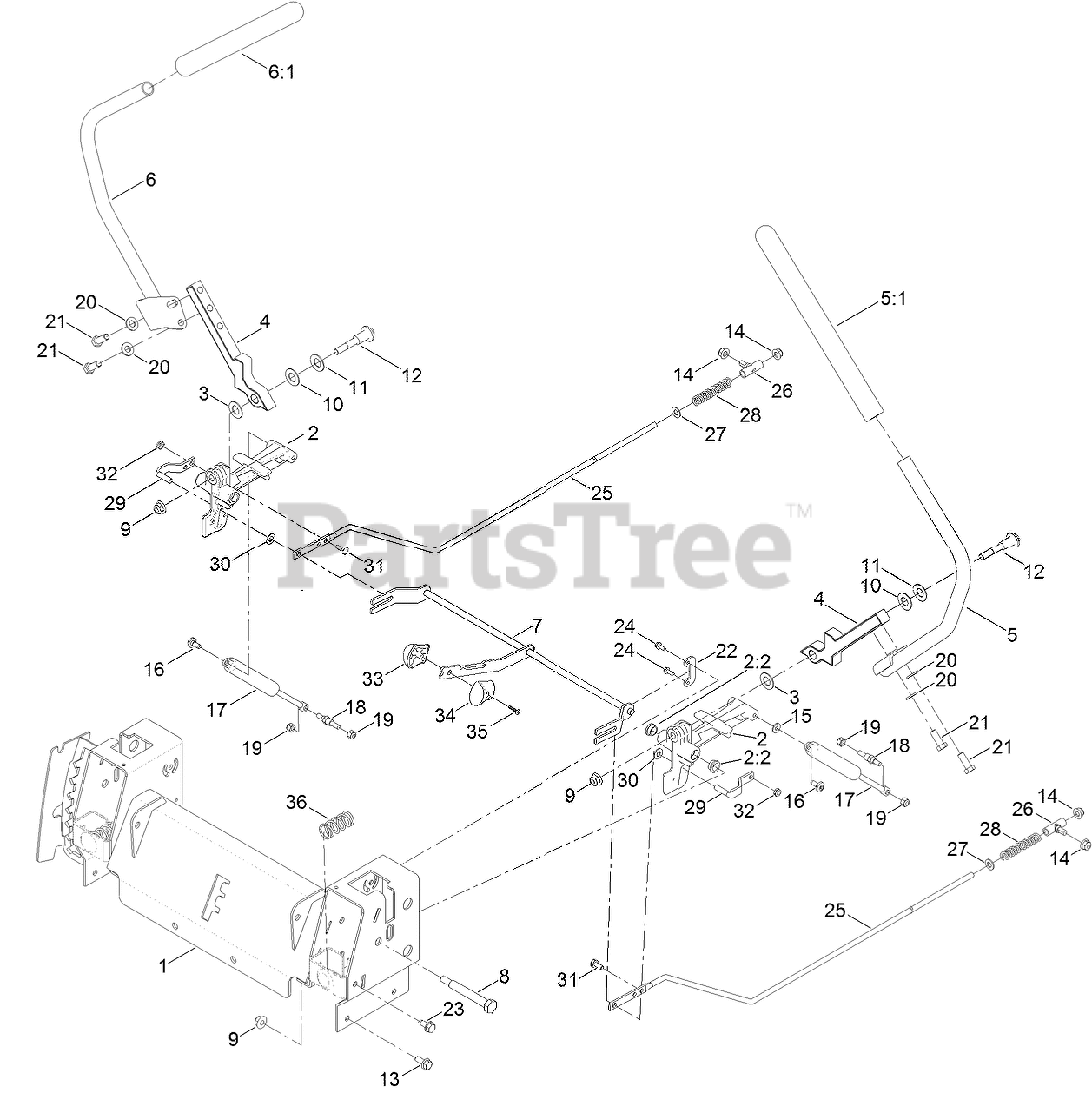

MOTION CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 136-4156-03

CONTROL BOX ASM

$166.99

$

In Stock, only 1 left!

0

2

Toro 119-3470

ACTUATOR ARM ASM

$27.99

$

In Stock, only 1 left!

0

2:2

Toro 256-156

BUSHING-FLANGE

$13.99

$

In Stock, only 2 left!

0

3

Toro 120-2273

WASHER-NYLON

$2.99

$

In Stock, only 4 left!

0

4

Toro 133-9299-05

ARM-CONTROL

$49.99

$

In Stock, Qty 5

0

5

Toro 121-0730

HANDLE-CONTROL, LH

$145.99

$

In Stock, only 4 left!

0

5:1

$14.99

$

In Stock, only 2 left!

0

6

Toro 121-0731

HANDLE-CONTROL, RH

$75.99

$

In Stock, only 2 left!

0

6:1

$14.99

$

In Stock, only 2 left!

0

7

Toro 131-1094

SPEED CONTROL ASM
(Superseded to 133-9300)

$79.99

$

Usually ships in 3-6 days

0

8

Toro 115-5099

BOLT-PIVOT

$5.49

$

In Stock, only 2 left!

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 117-1240

WASHER

$2.99

$

In Stock, Qty 20+

0

11

Toro 119-8925

WASHER-BELLEVILLE

$1.49

$

In Stock, Qty 20+

0

12

Toro 117-1198

BOLT-PIVOT

$2.99

$

In Stock, Qty 15

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

14

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

15

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0

16

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

17

Toro 131-4132

DAMPER

$69.99

$

In Stock, Qty 12

0

18

Toro 110-6810

STUD-DAMPER
(Superseded to 138-7215)

$2.99

$

In Stock, only 2 left!

0

19

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 9

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

21

Toro 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

22

Toro 117-5385

RETAINER

$1.49

$

Usually ships in 3-6 days

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 16

0

24

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 20+

0

25

Toro 117-5388

ROD-HYDRO
(Superseded to 138-7217)

$12.99

$

In Stock, only 2 left!

0

26

Toro 119-8842

MOUNT-ROD, HYDRO
(Superseded to 138-7218)

$12.99

$

In Stock, only 1 left!

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

29

Toro 119-3303

PIN-ROD, HYDRO
(Superseded to 121-1753)

$6.49

$

Usually ships in 3-6 days

0

30

Toro 93-6079

SPACER-NYLON

$2.49

$

Usually ships in 3-6 days

0

31

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

33

Toro 119-8935

KNOB-RH
(Superseded to 132-9368)

$2.99

$

In Stock, only 1 left!

0

34

Toro 119-8936

KNOB-LH
(Superseded to 132-9369)

$2.99

$

In Stock, only 2 left!

0

35

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

36

Toro 119-8876

SPRING-RETURN

$2.99

$

In Stock, Qty 8

0
