74720 (SS 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) IGNITION AND ELECTRICAL ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

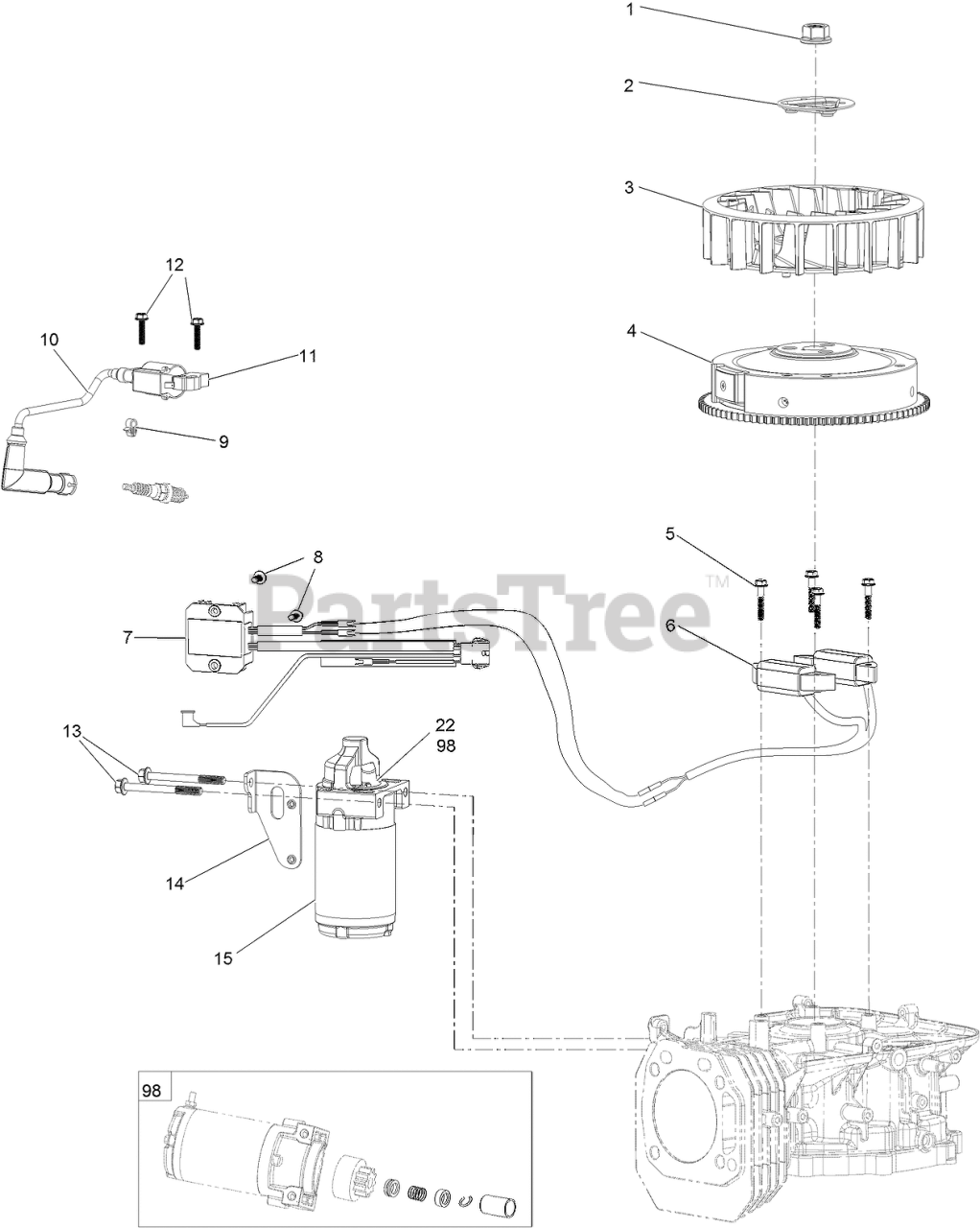

IGNITION AND ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 120-4213

NUT-FLANGE

$5.49

$

In Stock, only 1 left!

0

2

Toro 120-4212

PULLEY-STARTER

$11.99

$

In Stock, only 1 left!

0

3

Toro 120-4211

FAN-COOLING

$34.99

$

In Stock, only 2 left!

0

4

Toro 120-4399

FLYWHEEL

$183.99

$

Usually ships in 3-6 days

0

5

Toro 120-4223

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

6

Toro 127-9176

ALTERNATOR
(Superseded to 136-7833)

$67.99

$

Usually ships in 3-6 days

0

7

Toro 127-9178

VOLTAGE REGULATOR
(Superseded to 136-7836)

$103.99

$

In Stock, only 1 left!

0

8

Toro 120-4216

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

9

Toro 120-4316

CLAMP-WIRE

$1.49

$

Usually ships in 3-6 days

0

10

Toro 120-4226

BOOT-PLUG, SPARK

$12.99

$

Usually ships in 3-6 days

0

11

Toro 127-9177

IGNITION COIL ASM
(Superseded to 136-7831)

$67.99

$

In Stock, only 3 left!

0

12

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0

13

Toro 120-4231

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

14

Toro 120-4230

BRACKET-STARTER

$15.99

$

Usually ships in 3-6 days

0

15

Toro 133-9832

MOTOR-STARTER
(Superseded to 136-7832)

$299.99

$

In Stock, Qty 10

0

22

Toro 133-1562

PINION-STARTER

$54.99

$

Usually ships in 3-6 days

0

98

Toro 120-4392

STARTER REPAIR KIT

$19.99

$

In Stock, only 1 left!

0
