74705 (SS 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 403320567 - 404313999) Seat Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

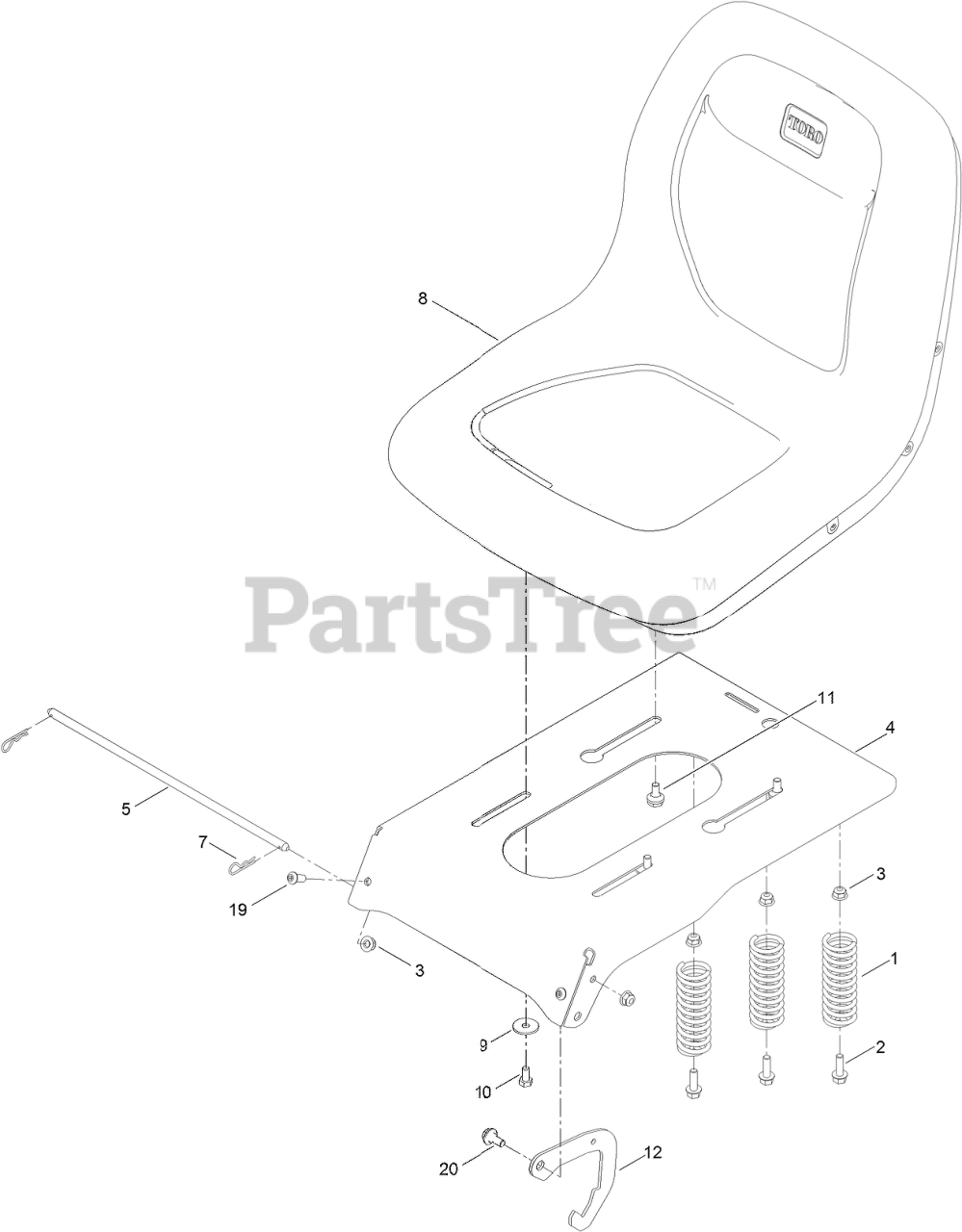

Seat Assembly Parts Diagram

  • Title
1

Toro 92-7054

SPRING-COMPRESSION

$21.99

$

In Stock, Qty 10

0

2

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

3

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Toro 131-4037-01

PAN-SEAT

$78.99

$

Usually ships in 3-6 days

0

5

Toro 138-7213

ROD-PIVOT, NARROW

$17.99

$

Usually ships in 3-6 days

0

7

Toro 3290-250

PIN-COTTER

$6.49

$

Usually ships in 3-6 days

0

8

Toro 119-8829

SEAT-18 INCH

$360.99

$

Usually ships in 3-6 days

0

9

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

10

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 17

0

11

Toro 37-8771

BOLT-SHOULDER,HFH

$5.49

$

In Stock, Qty 13

0

12

Toro 138-7250

SEAT LATCH

$8.49

$

In Stock, only 1 left!

0

19

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 13

0

20

Toro 19-1470

SCREW-SHOULDER

$3.99

$

In Stock, Qty 5

0
